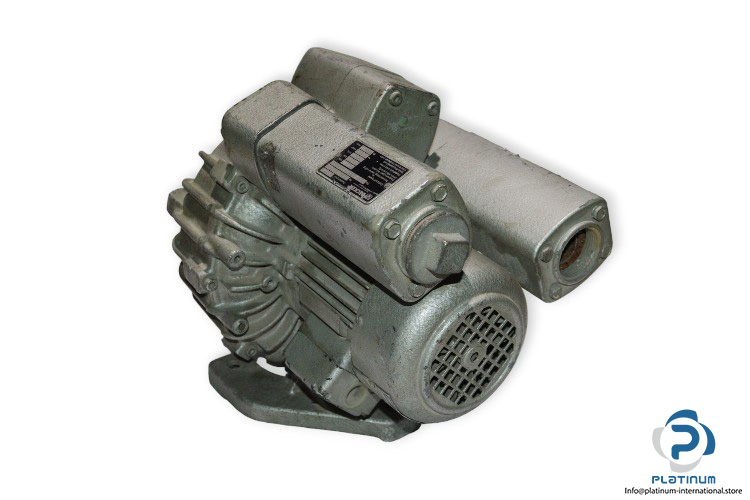

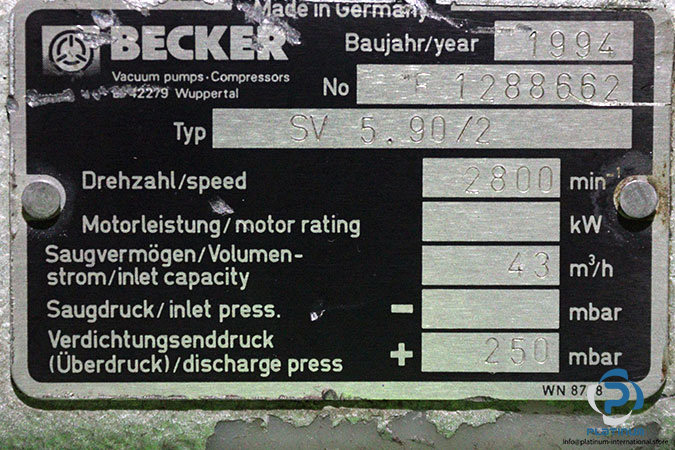

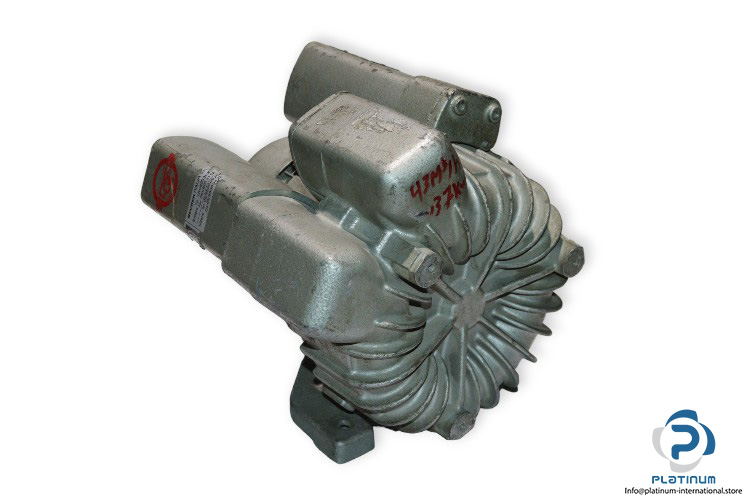

Becker SV 5.90/2 Single Side Channel Blower

Manufacturer: Becker
Type: Single Side Channel Blower
Model: SV5.90/2

Channel Design: Single
Rated Pressure [mbar]: 250
Max. Flow Rate [m³/min]: 43
Rated Speed [rpm]: 2800

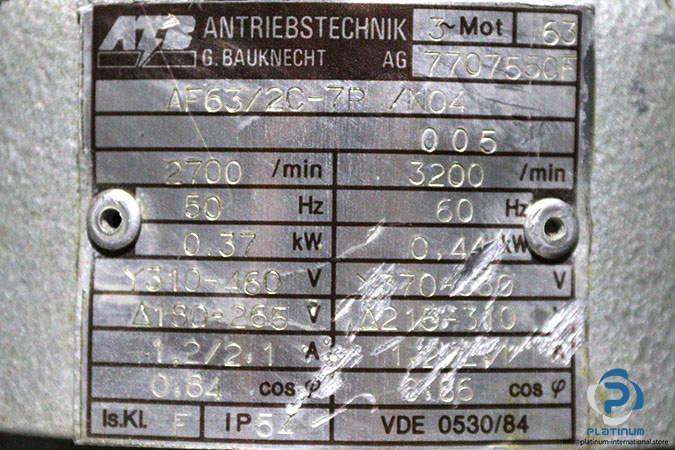

Attachment: ATB AF63/2C-7P/N04 3-Phase Electric Motor
Manufacturer: ATB
Type: 3-Phase Electric Motor
Model: AF63/2C-7P/N04
Rated Power [kW]: 0.37/0.44
Supply Voltage [V]: 310-460/370-480 Star
Supply Voltage [V]: 180-265/215-310 Delta
Rated Current [A]: 1.2-2.1/1.2-2.1
Rated Speed [rpm]: 2700/3200
Frequency [Hz]: 50/60
Protection Class [IP]: 54
Power Factor [cos]: 0.84/0.86
Insulation Class: F
