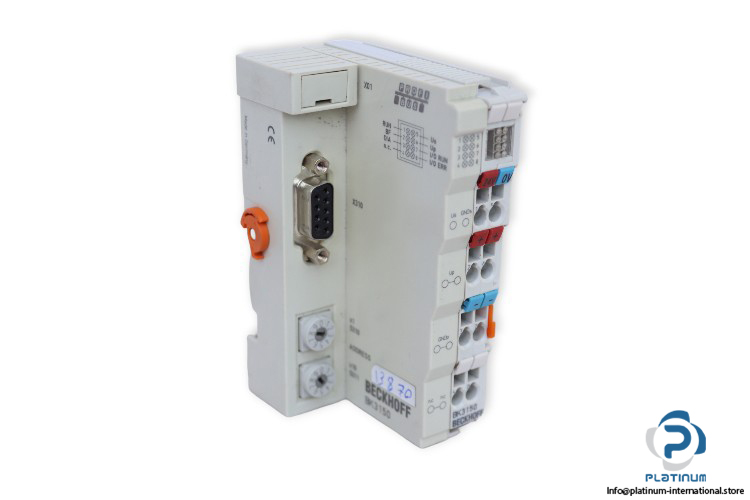

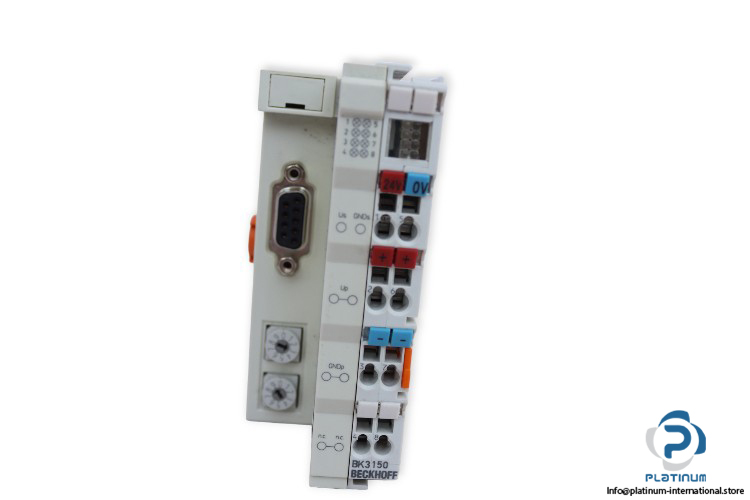

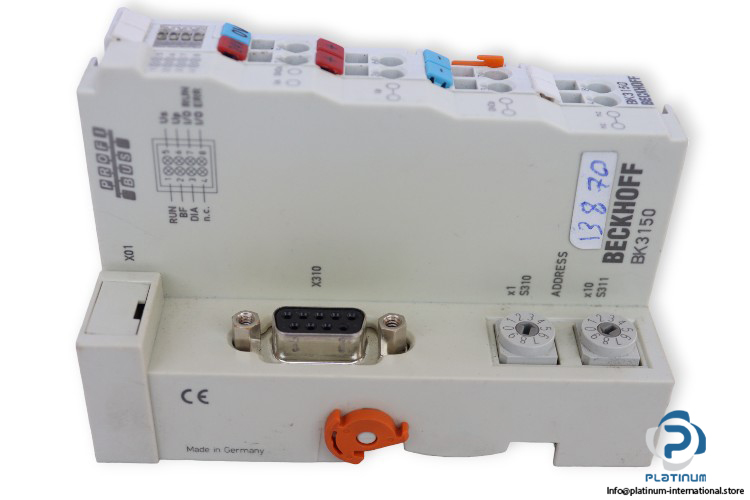

Beckhoff BK3150 Profibus Compact BUS Coupler

Auf Lager5 EinheitenVersandbereit

PROFIBUS Compact Bus Coupler

The Beckhoff BK3150 PROFIBUS Compact Bus Coupler provides reliable communication in automation systems with 24 V DC power supply, up to 12 Mbaud data transfer rate, and IP20 protection. It supports up to 64 bus terminals and operates within a wide temperature range of -25 / +60 °C.

Hersteller
BECKHOFF
SKU
1044188
Kategorie
PLC Modules
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

Beckhoff BK3150 “ PROFIBUS Compact Bus Coupler

The Beckhoff BK3150 is a highly efficient PROFIBUS Compact Bus Coupler designed to integrate field devices with the PROFIBUS DP network. With excellent electrical isolation and robust performance, it supports high data transfer rates and a wide operating temperature range, making it suitable for diverse industrial automation applications.

Manufacturer: Beckhoff

Type: PROFIBUS Compact Bus Coupler

Model: BK3150

Power Supply24 V DC
Input Current70 mA + (total K-bus current)/4, 500 mA max.
Current Supply K-bus1750 mA
Power Contacts Max24 V DC/max. 10 A
Electrical Isolation500 V (power contact/supply voltage/fieldbus)
Number of Bus Terminals64 (255 with K-bus extension)
Max. Number of Bytes Fieldbus128 byte input and 128 byte output
Bus Interface1 x D-sub 9-pin socket with shielding
Data Transfer RatesAutomatic detection up to 12 Mbaud
Operating Temperature-25 / +60 °C
Degree of ProtectionIP20
