Beckhoff EL 1104 4-CHANNEL Digital Input

Name: BECKHOFF EL 1104 4-CHANNEL DIGITAL INPUT
SKU: 1083425
Availability: LimitedAvailability

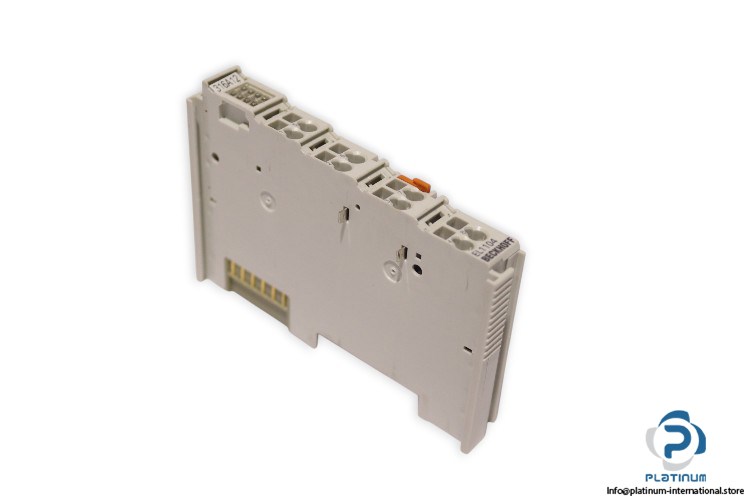

Beckhoff-el1104-4-channel-digital-input(used)

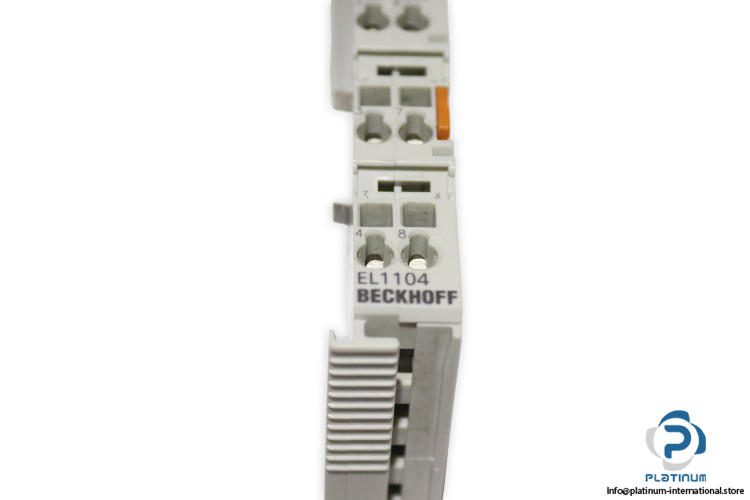

Beckhoff-el1104-4-channel-digital-input(used)-1

Beckhoff-el1104-4-channel-digital-input(used)-2

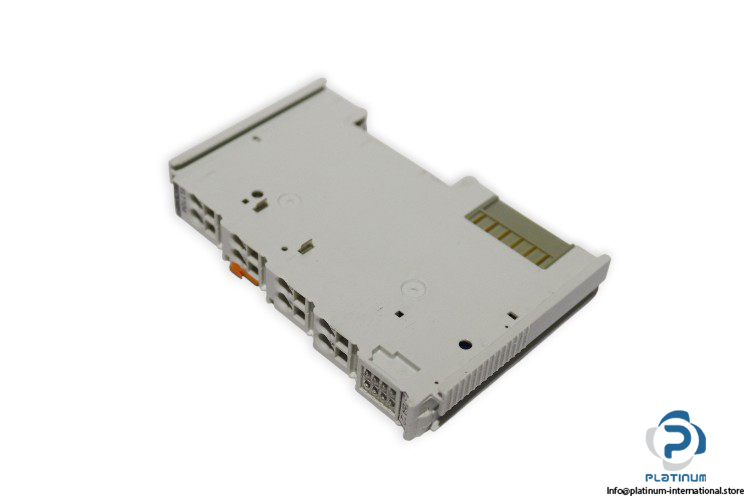

Beckhoff-el1104-4-channel-digital-input(used)-3

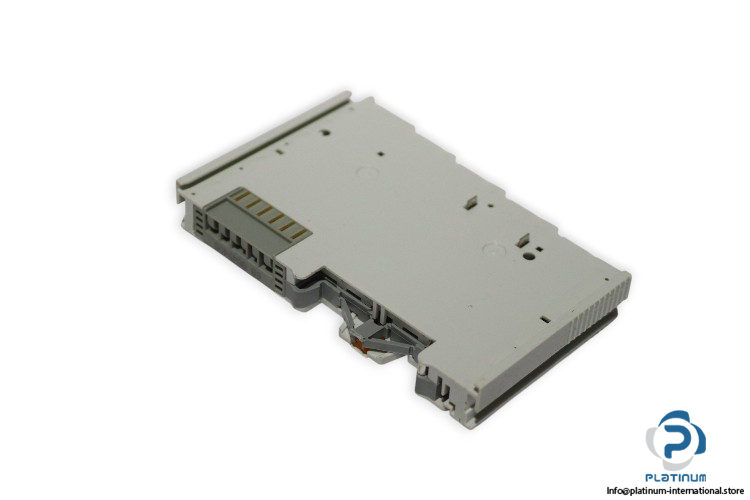

Beckhoff-el1104-4-channel-digital-input(used)-4

Beckhoff-el1104-4-channel-digital-input(used)-5

Gebraucht

Auf Lager20 EinheitenVersandbereit

EtherCAT Terminal

Beckhoff EL1104 4-channel digital input terminal with 24 V DC nominal voltage, 500 V isolation, and IP20 protection rating, designed for reliable automation performance.

Hersteller

BECKHOFF

SKU

1083425

Kategorie

PLC Modules

Zustand

Gebraucht

24v 4 Atex Automation Beckhoff Certified channel dc Digital EL1104 EtherCAT IECEx Industrial Input IP20 Module terminal

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Beckhoff EL1104 EtherCAT Terminal

The Beckhoff EL1104 is a 4-channel digital input EtherCAT terminal designed for precise and reliable industrial automation. It supports 2- and 3-wire connections with robust electrical isolation and compliance to international standards, ensuring stable operation in demanding environments.

Manufacturer: BECKHOFF

Type: EtherCAT Terminal, 4-channel digital input

Model: EL1104

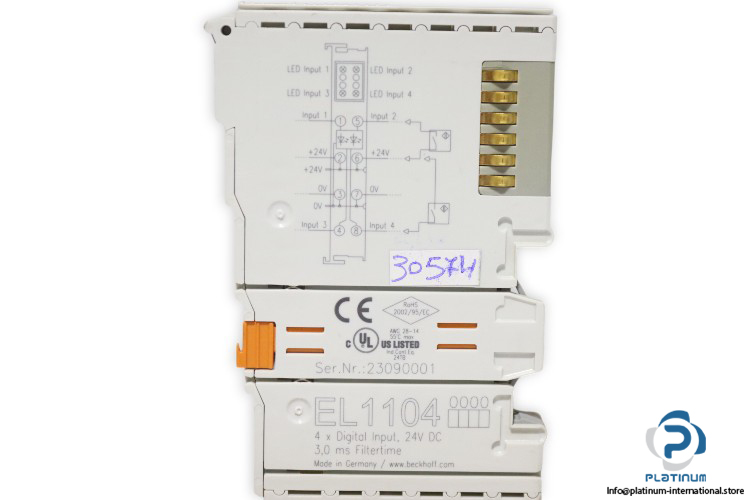

SN: 23090001

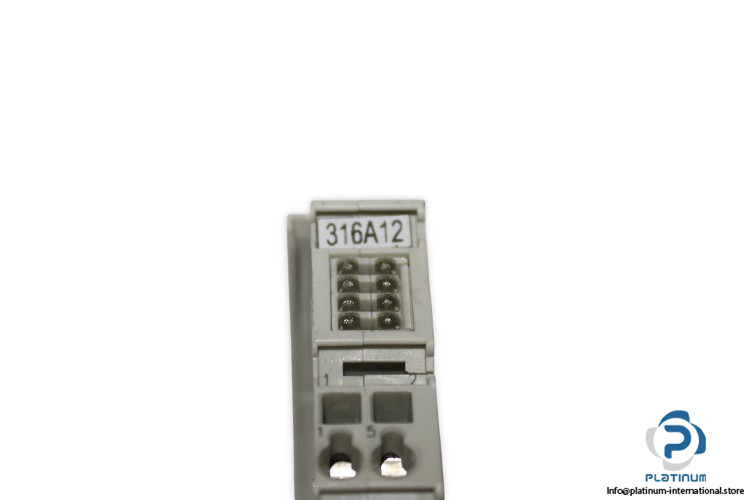

REF CODE: 316A12

Specification	EN 61131-2, type 1/3
Number of Inputs	4
Nominal Voltage	24 V DC
œ0 Signal Voltage	-3 / +5 V (EN 61131-2, type 3)
œ1 Signal Voltage	11 / 30 V (EN 61131-2, type 3)
Input Current	typ. 3 mA (EN 61131-2, type 3)
Input Filter	typ. 3.0 ms
Current Consumption Power Contacts	typ. 2 mA + load
Current Consumption E-bus	typ. 90 mA
Electrical Isolation	500 V (E-bus/field potential)
Configuration	no address or configuration setting
Special Features	4 inputs for 2- and 3-wire connection
Operating Temperature	-25 / +60°C
Vibration/Shock Resistance	conforms to EN 60068-2-6 / EN 60068-2-27
EMC Immunity/Emission	conforms to EN 61000-6-2 / EN 61000-6-4
Protection Rating/Installation Position	IP20 / variable
Pluggable Wiring	for all ESxxxx terminals
Ex Marking	ATEX: II 3 G Ex ec IIC T4 Gc, IECEx: Ex ec IIC T4 Gc
Current Load Power Contacts	Imax: 10 A
Material	Polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
