Beckhoff EL 3102 Analog Input Terminal

Name: BECKHOFF EL 3102 ANALOG INPUT TERMINAL
SKU: 1083009
Availability: LimitedAvailability

Beckhoff-el-3102-analog-input-terminal(new)

Beckhoff-el-3102-analog-input-terminal(new)-1

Beckhoff-el-3102-analog-input-terminal(new)-2

Beckhoff-el-3102-analog-input-terminal(new)-3

Neu

Auf Lager1 EinheitVersandbereit

Analog Input Terminal

Beckhoff EL3102 analog input terminal with 2 channels, 16-bit resolution, ±10 V input range, fast 60 µs conversion, and reliable E-bus powered operation.

Hersteller

BECKHOFF

SKU

1083009

Kategorie

PLC Modules

Zustand

Neu

16 Analog Automation Beckhoff Bit E-bus EL3102 High I/O Industrial Input Module Powered Precision terminal

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Beckhoff EL3102 Analog Input Terminal (16 Bit)

The Beckhoff EL3102 is a high-performance analog input terminal designed for precision data acquisition in industrial automation. With 16-bit resolution and dual analog inputs, it ensures accurate and fast signal processing for demanding applications.

Manufacturer: Beckhoff

Type: Analog Input Terminals (16 Bit)

Model: EL3102

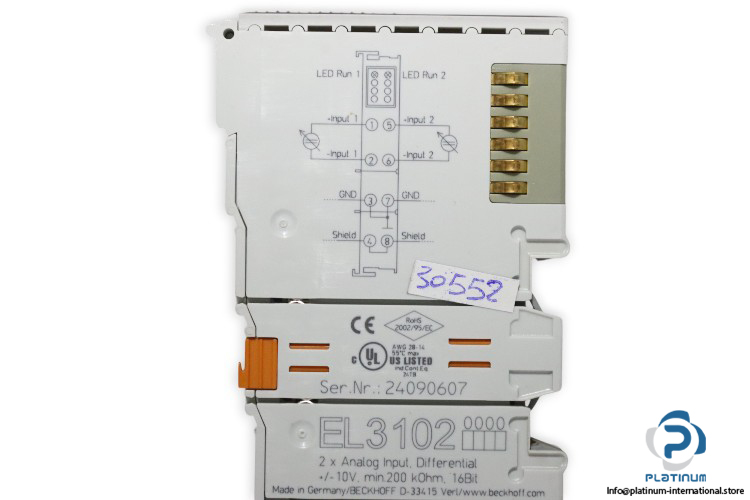

Serial No.: 24090607

Analog Inputs	2
Signal Voltage	-10 V ... +10 V
Internal Resistance	> 200 kÎ©
Resolution	16 bit (including sign)
Sampling Type	Simultaneous
Ground Reference	Differential
Conversion Time	Approx. 60 µs (Fast mode: approx. 40 µs)
Input Filter Limit Frequency	5 kHz
Supply Voltage	Via the E-bus
Current Consumption via E-bus	Typ. 170 mA
Electrical Isolation	500 V (E-bus/field voltage)
Common Mode Voltage Ucm	Max. 35 V (referring to internal GND)
Bit Width of Process Image (Default)	Inputs: 2 x 16 bit; Status: 2 x 8 bit
Ambient Temperature Range During Operation	-25°C ... +60°C
