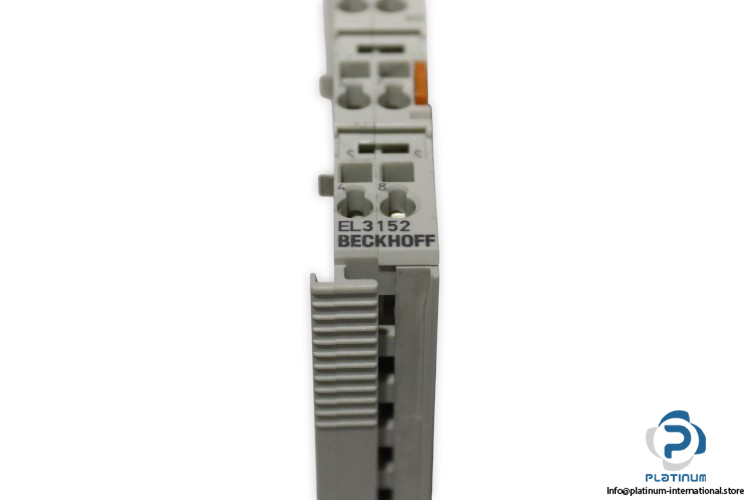

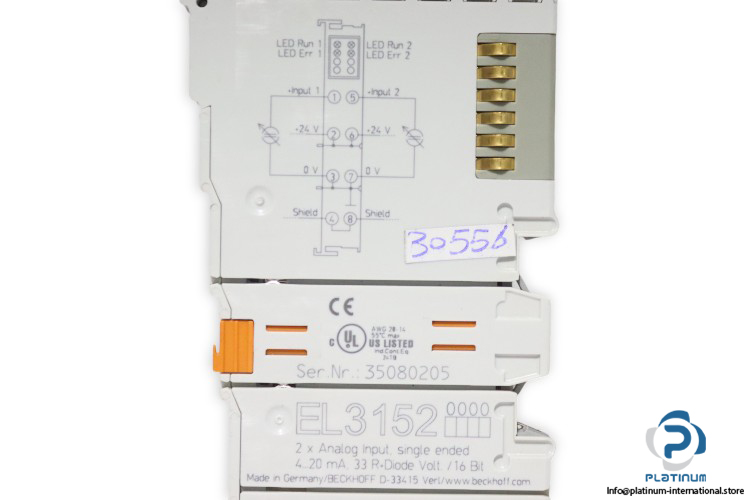

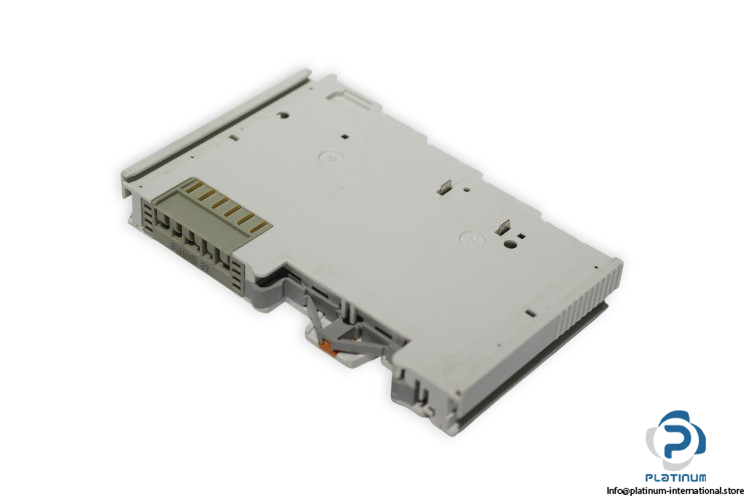

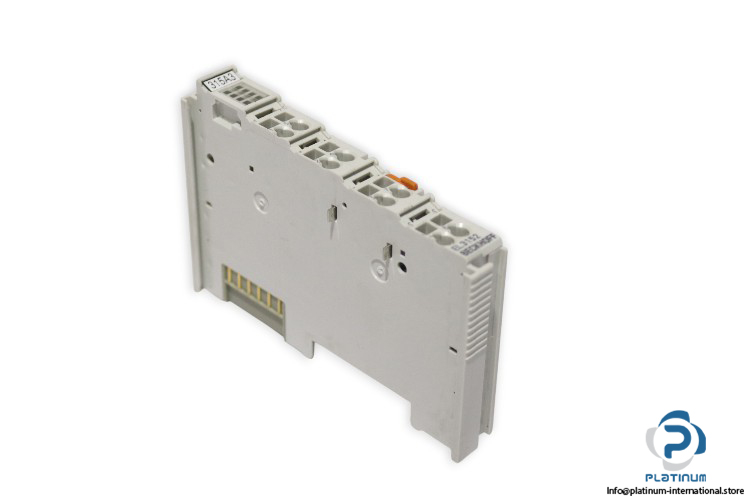

Beckhoff EL 3152 Ethercat Terminal
Gebraucht
Auf Lager2 EinheitenVersandbereit
EtherCAT Terminal
Beckhoff EL3152 EtherCAT terminal with 2 single-ended inputs, 4 / 20 mA signal current, 16-bit resolution, and advanced FIR/IIR filters for reliable process monitoring.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Beckhoff EL3152 EtherCAT Terminal
The Beckhoff EL3152 is a high-performance EtherCAT terminal designed for precise current measurement in automation systems. With dual single-ended inputs and advanced features like FIR/IIR filters and limit value monitoring, it ensures accurate and reliable process control in industrial environments.
Manufacturer: Beckhoff
Type: EtherCAT Terminal
Model: EL3152
MRN: 35080205
| Number of Inputs | 2 (single-ended) |
| Power Supply | Via the E-bus |
| Technology | Single-ended |
| Signal Type | Single-ended |
| Signal Current | 4 / 20 mA |
| Internal Resistance | Typ. 85 Ω + diode voltage |
| Input Filter Limit Frequency | 5 kHz |
| Dielectric Strength | Max. 30 V |
| Conversion Time | 60 µs (fast mode 40 µs) |
| Resolution | 16 bit (incl. sign) |
| Measuring Error | < ±0.3 % (relative to full scale value) |
| Electrical Isolation | 500 V (E-bus/signal voltage) |
| Current Consumption E-bus | Typ. 170 mA |
| Bit Width in Process Image | Inputs: 8 byte |
| Special Features | Standard and compact process image, activatable FIR/IIR filters, limit value monitoring |
| Operating Temperature | -25 / +60 °C |
