Beckhoff EL 6731 Master Terminals FOR Profibus
Neu
Auf Lager1 EinheitVersandbereit
Master Terminal
Beckhoff EL6731 EtherCAT master terminal for PROFIBUS with 1 channel, 9.6 kBit/s to 12 MBit/s data rate, D-Sub interface, and up to 125 slave nodes.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

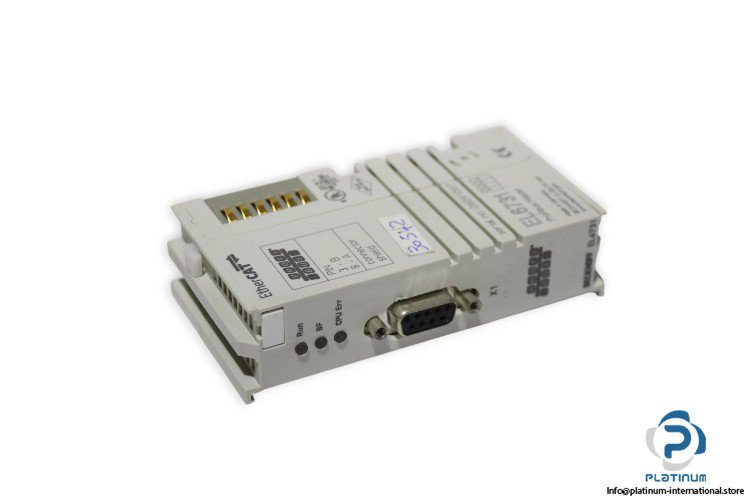

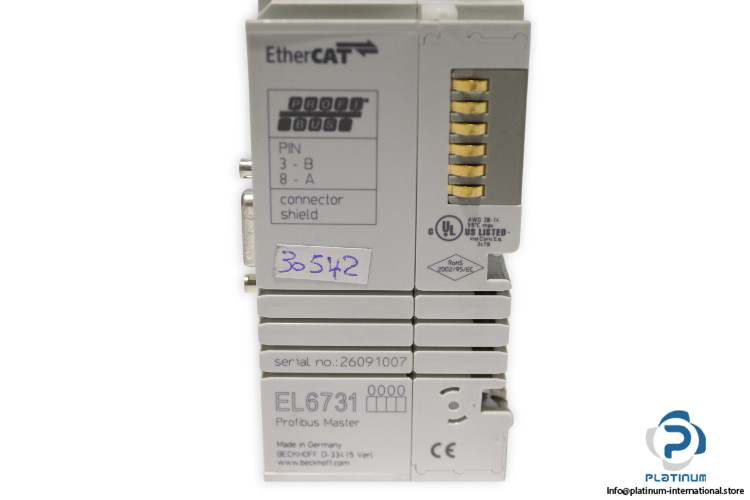

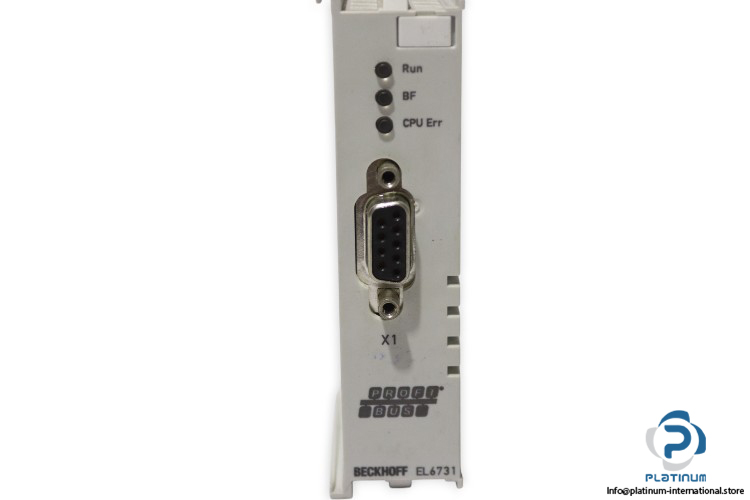

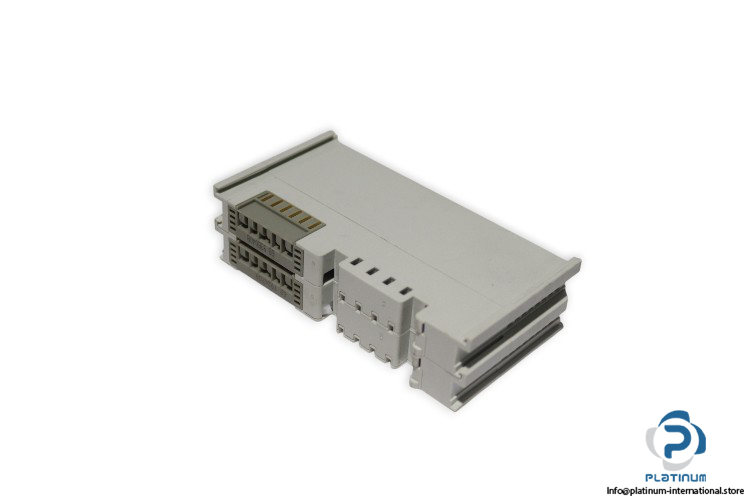

Beckhoff EL6731 Master Terminal for PROFIBUS
The Beckhoff EL6731 is an EtherCAT terminal designed as a master terminal for PROFIBUS networks. It supports standard and advanced PROFIBUS versions, offering flexible data handling, fast communication, and reliable integration for industrial automation systems.
Manufacturer: Beckhoff
Type: Master Terminals for PROFIBUS
Model: EL6731
Serial No.: 26091007
| EtherCAT Terminal | Yes |
| Bus System | PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), PROFIBUS DP-V2, PROFIBUS MC (equidistance) |
| Version | Master |
| Number of Fieldbus Channels | 1 |
| Data Transfer Rate | 9.6 kBit/s to 12 MBit/s |
| Bus Interface | 1 x D-Sub socket, 9-pin, galvanically isolated |
| Bus Nodes Maximum | 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave |
| Cycle Time | Differing DP cycle times per slave possible using the CDL concept |
| Process Image | Sum max. 1.4 kbyte input and 1.4 kbyte output data |
| Diagnostics | Status LEDs |
| Power Supply | via the E-bus |
| Current Consumption via E-bus | typ. 350 mA |
| Ambient Temperature Range | -25 °C to +60 °C |
