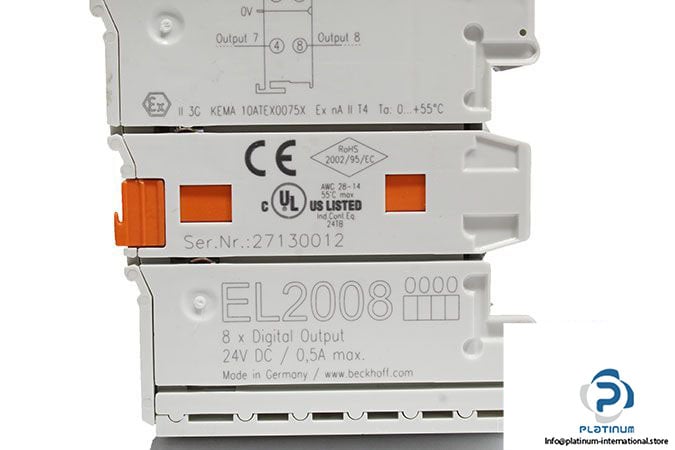

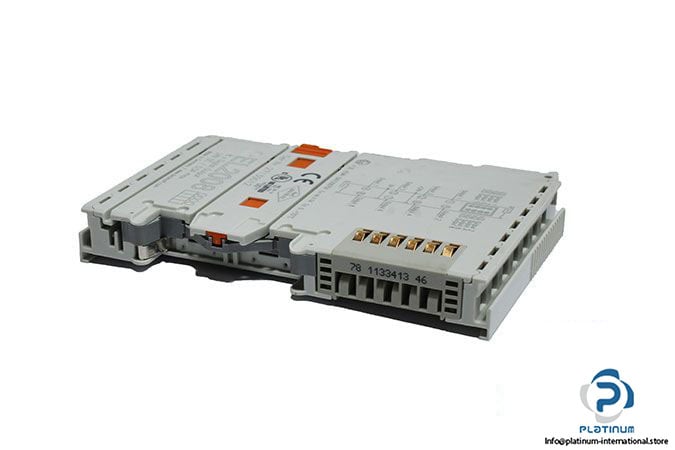

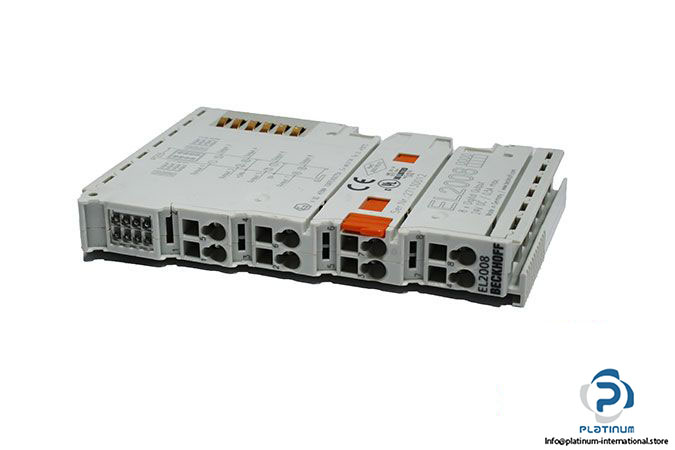

Beckhoff EL2008 8-CHANNEL Digital Output Terminal

Manufacturer: Beckhoff

Type: 8-Channel Digital Output Terminal

Model: EL2008

Connection Technology: 1-wire

Number of Output: 8

Nominal Voltage: 24 V DC

Load Type: ohmic, inductive, lamp load

Max. Output Current: 0.5 A (short-circuit proof) per channel

Short-Circuit Current: typ. < 2 A
Switching Times: typ. TON: 60 µs, typ. TOFF: 300 µs

Current Consumption E-Bus: typ. 110 mA

Electrical Isolation: 500 V (E-bus/field potential)

Current Consumption Power Contacts: typ. 15 mA + load

Operating/Storage Temperature: -25 … +60 °C/-40 … +85 °C

Protect. Class: IP 20

Weight: 0.05 Kg
