Beckhoff EL2088 Ethercat Terminal
Neu
Auf Lager2 EinheitenVersandbereit
67,77$
EtherCAT Terminal Beckhoff EL2088 EtherCAT terminal featuring 8 digital output channels, fast switching performance, 24 V DC operation, and compact DIN rail mounting design for industrial automation and control systems.
8AutomationBeckhoffchannelControlDigitalDINEL2088EtherCATI/OindustriaIndustrialModuleOutputPLCrailSystemterminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

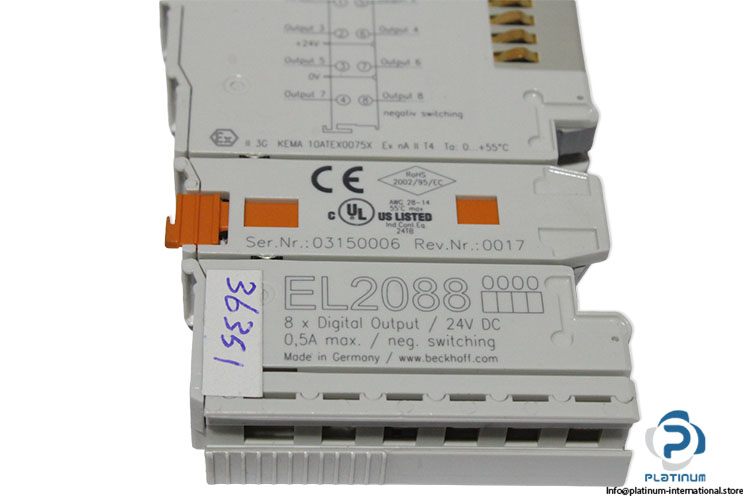

| Serial No. | 03150006 |
| Rev. No. | 0017 |
| Connection Technology | 1-wire/ground switching |
| No. of digital outputs (DO) | 8 |
| Nominal Voltage | 24 V DC |
| Load type | ohmic, inductive, lamp load |
| Output current | max. 0.5 A |
| Short-circuit current | typ. < 7 A |
| Breaking energy | < 100 mJ/channel |
| Electrical isolation | 500 V |
| Switching times | typ. TON: 50 µs, typ. TOFF: 200 µs |
| Current consumption E-bus | typ. 110 mA |
| Current load power contacts | Imax, 30 A |
| Protection degree | IP20 |
| Material | Polycarbonate |
| Ambient temperature | -25 to 60°C |
| Certificate | cULus, CE |
| Standard | Il 3G KEMA 10ATEX0075X Ex nA II T4 |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | Labeling of the BZxxxx series |

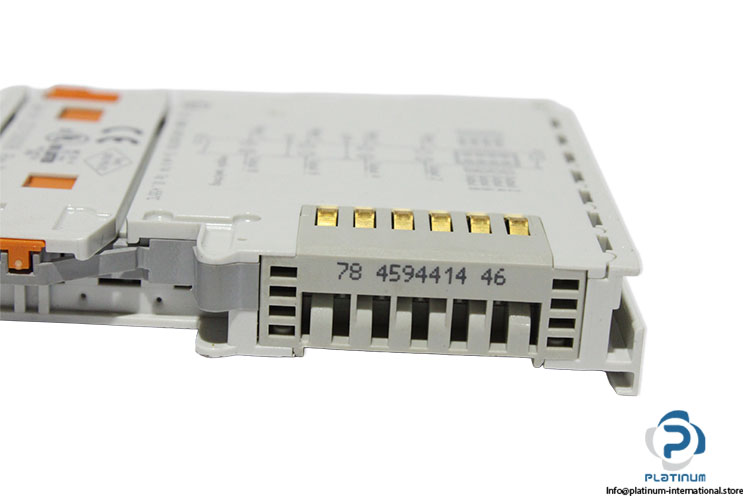

| Terminal No. | 78 4594414 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097585 |
| Weight | 0,05 |
