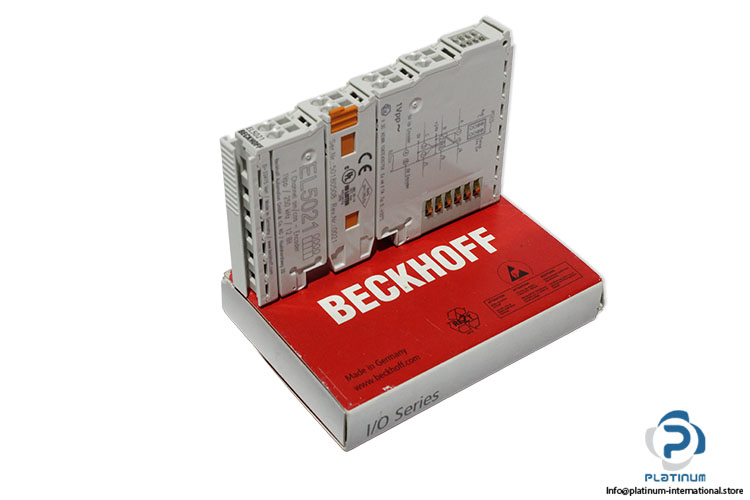

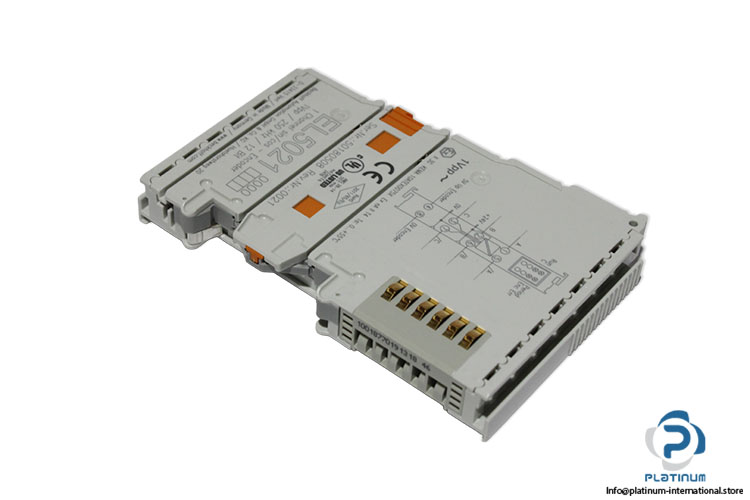

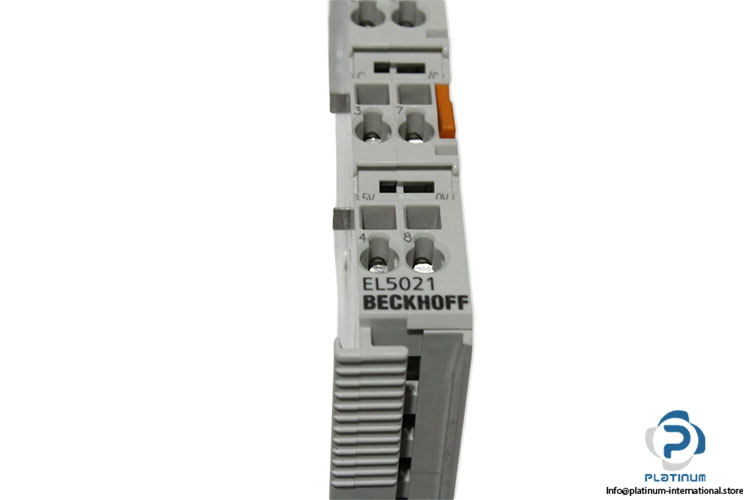

Beckhoff EL5021 Ethercat Terminal
Neu
Auf Lager2 EinheitenVersandbereit
155,55$
EtherCAT Terminal Encoder Interface Module Beckhoff EL5021 single-channel EtherCAT encoder interface terminal designed for SinCos encoder signal processing, high-speed counting, and precise motion control applications.
AutomationBeckhoffControlDINEL5021EncoderEtherCATFeedbackI/OIndustrialInterfaceModuleMotionPLCPositionrailSincosterminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

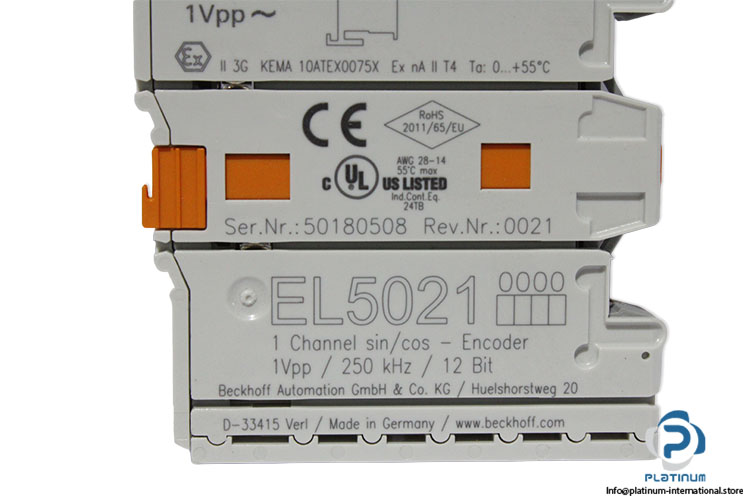

| Serial No. | 50180508 |
| Rev. No. | 0021 |
| Connection technology | SinCos encoder interface for differential VPP signal |
| No. of Channels | 1 |

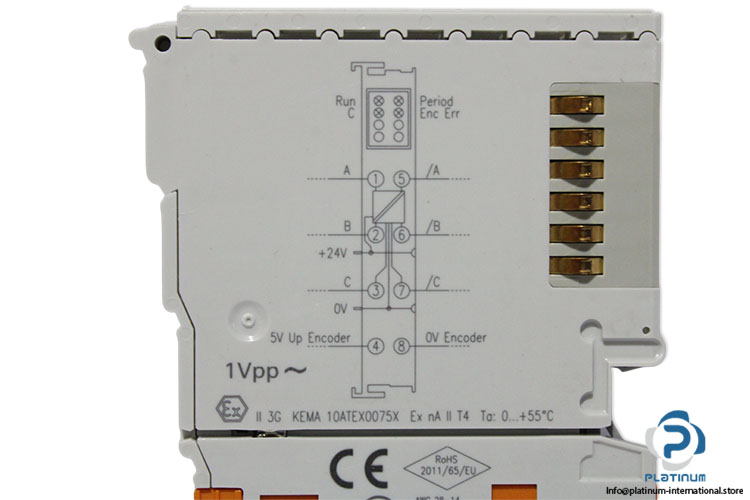

| Encoder connection | 1 x A, B, C: differential inputs 1 Vpp |
| Encoder operating voltage | 5 V DC/max. 0.5 A (generated from the 24 V DC power contacts) |
| Nominal voltage | 24 V DC at power contact |
| Counter | max. 24 bit (adjustable) |
| Input frequency | 250 kHz at 10 bit (sampling rate 70 MHz) |
| Resolution | 12 bits |
| Current consumption power contacts | typ. 50 mA + load |
| Current consumption E-bus | typ. 120 mA |
| Electrical isolation | 500 V (E-bus/field potential) |
| Protection degree | IP20 |
| Special features | latch, reset, change counting direction, amplitude and frequency error recognition, frequency-dependent period resolution, frequency counter max. 24 bit |
| Material | Polycarbonate |
| Standard | II 3G KEMA 10ATEX0075X Ex nA II T4 |
| Ambient temperature | 0 to 55°C |
| Certificate | CE, cULus |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

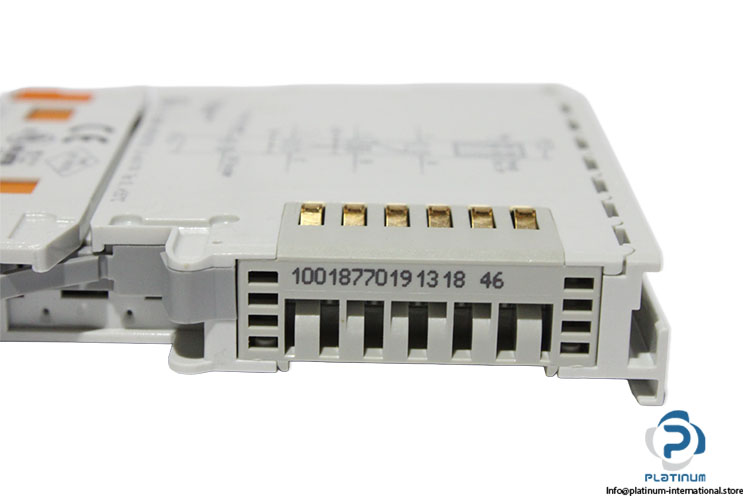

| Terminal No. | 1001877019 13 18 46 |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097576 |
| Weight | 0,07 |
