Beckhoff EL6631 Ethercat Terminal
Neu
Auf Lager1 EinheitVersandbereit
133,33$
EtherCAT Terminal Beckhoff EL6631 EtherCAT terminal with 2-port PROFINET RT communication interface, designed for high-speed industrial networking, fieldbus integration, and reliable automation control systems.
AutomationBeckhoffCommunicationDINEtherCATEthernetFieldbusIndustrialInterfaceModuleNetwPLCProfinetrailRJ45terminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Serial No. | 11221017 |
| Rev. No. | 0018 |
| Connection Technology | PROFINET RT |
| No. of channels | 1 |
| No. of ports | 2 (switched) |
| Fieldbus | PROFINET RT controller |
| Process data size | Max. 1 kbyte input/1 kbyte output data |

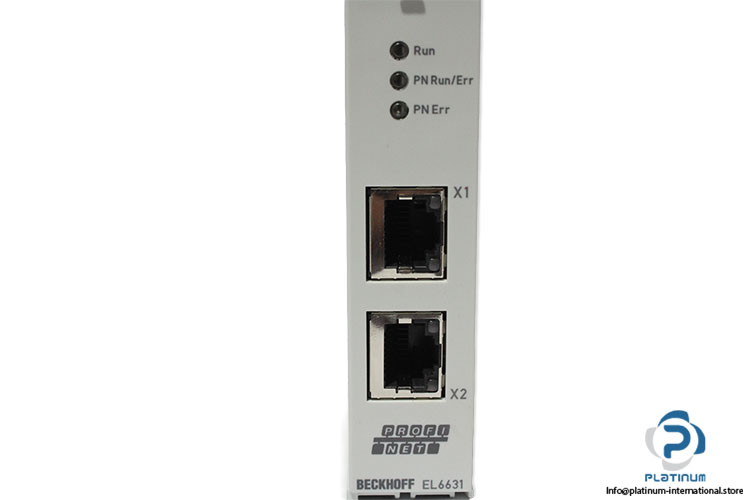

| Ethernet interface | 100BASE-TX Ethernet with 2 x RJ45 |
| Cable length | up to 100 m twisted pair |
| Hardware diagnostics | status LEDs |
| Power supply | via the E-bus |
| Electrical isolation | 500 V (E-bus/Ethernet) |
| Protocol | RT |
| Configuration | via EtherCAT master |
| Current consumption E-bus | typ. 400 mA |
| Special features | LLDP, SNMP, Conformance Class B, max. 15 RT devices, min. 1 ms RT cycle |

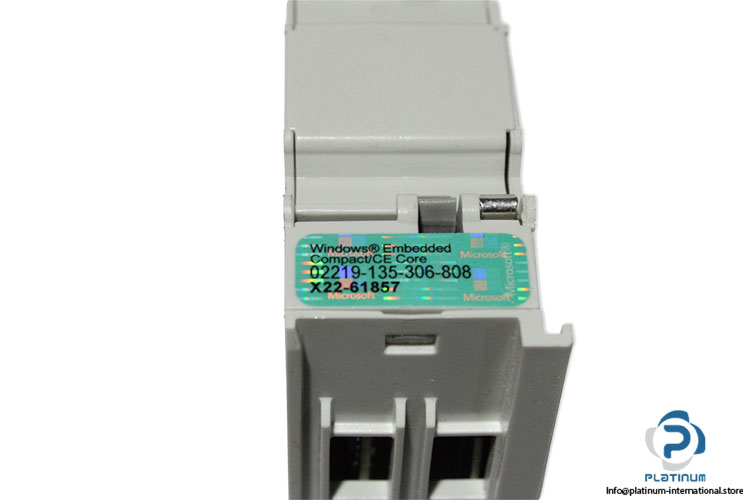

| Microsoft Windows Core | Windows® Embedded Compact/CE Core |
| Microsoft Windows No. | 02219-135-306-808 / X22-61857 |
| Material | Polycarbonate |
| Protection degree | IP20 |
| Operating temperature | 0 to 55°C |
| Certificate | CE, EAC, UKCA, cULus |

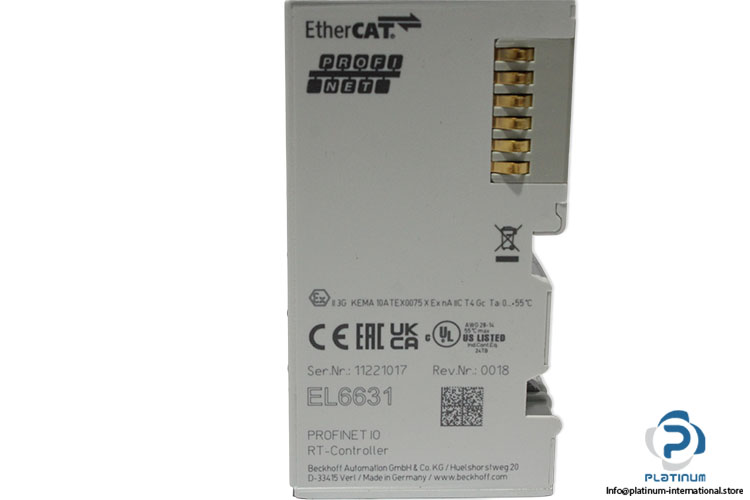

| Standard | II 3G KEMA 10ATEX0075XExnAIC T4 Gc |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Wiring | specific push-in connection |

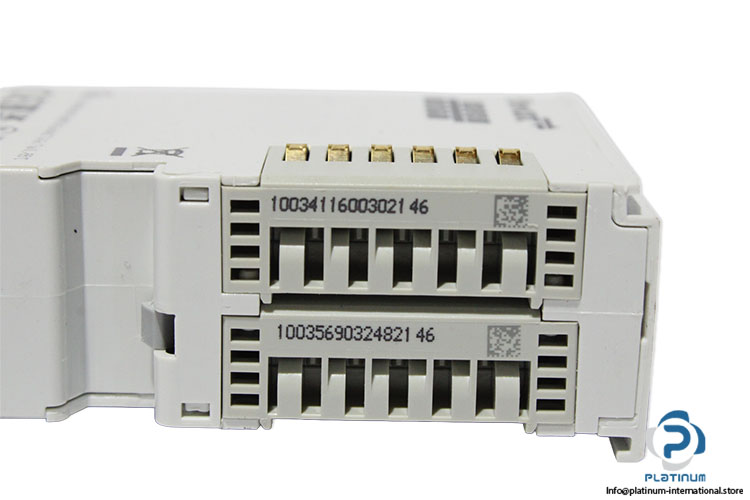

| Terminal No. | 10034116003021 46 / 10035690324821 46 |
| Dimensions | 24 x 100 x 52 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097581 |
| Weight | 0,09 |
