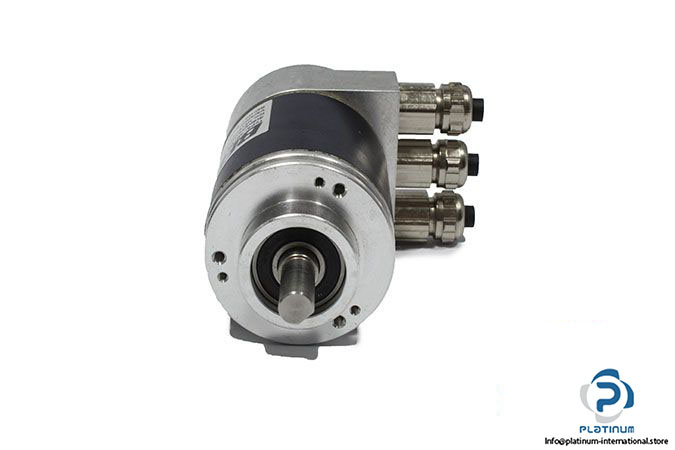

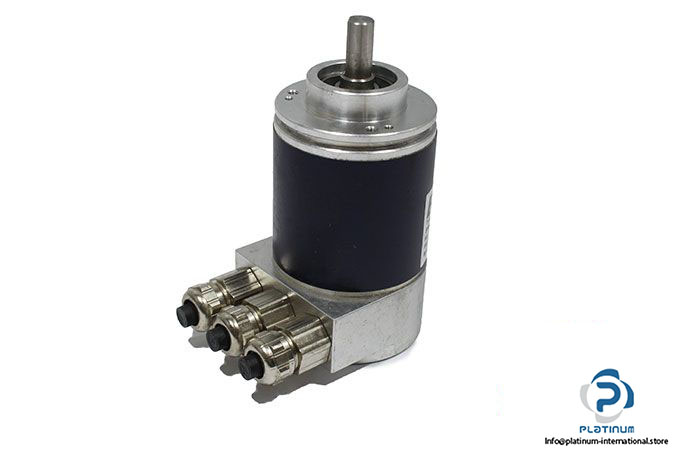

BEI MHM5-DPB1B-1213-C100-0CC Profibus Absolute Multi-Turn Encoder
200,00$
PROFIBUS MEHRDREH-ENCODER BEI MHM5-DPB1B-1213-C100-0CC bietet hochauflösendes Mehrdreh-Feedback (8192 Schritte/Umdrehung, 4096 Umdrehungen) mit RS485 Profibus-Schnittstelle, robustem Aluminiumgehäuse und IP65/IP64 Schutz für zuverlässige industrielle Leistung.
BEI MHM5-DPB1B-1213-C100-0CC Profibus Absolute Multi-Turn Encoder
The BEI MHM5-DPB1B-1213-C100-0CC is a high-precision Profibus absolute multi-turn encoder engineered for industrial environments that demand accurate, multi-revolution feedback. Built with rugged materials and advanced communication interface, this encoder ensures reliable performance in harsh conditions.

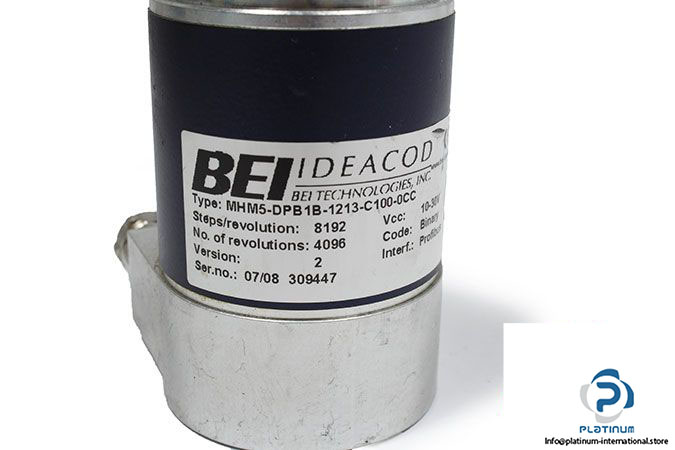

Manufacturer: BEI
Type: Profibus Absolute Multi-Turn Encoder
Model: MHM5-DPB1B-1213-C100-0CC
Serial No.: 07/08 309447
| Steps / Revolution | 8192 |
| No. of Revolutions | 4096 |
| Version | 2 |
| Current Consumption | max. 100 mA (24 VDC) |
| Power Supply | 10 / 30 VDC |
| Step Frequency LSB | 800 kHz |
| Interface | Line driver RS485 |
| Transmission Rate | Max. 12 MBauds |
| Device Addressing | By rotary switches |
| Power Consumption | max. 2.5W |
| Electrical Lifetime | > 105 h |
| Shock (EN 60068-2-27) | ‰¤ 100 g (halfsinus, 6 ms) |
| RPM (Continuous Operation) | 6000 rpm |
| Friction Torque | ‰¤ 3 N.cm |
| Shaft Inertia | ‰¤ 30 g.cm² |
| Max. Shaft Loading | Axial: 40 N, Radial: 110 N |
| Material | Cover: Aluminum, Body: Aluminum, Shaft: Stainless Steel |
| Protection Class (Cover/Shaft) | IP65/IP64 |
| Operating Temperature | “40 / +85°C |
| Shaft Diameter | 10 mm |
