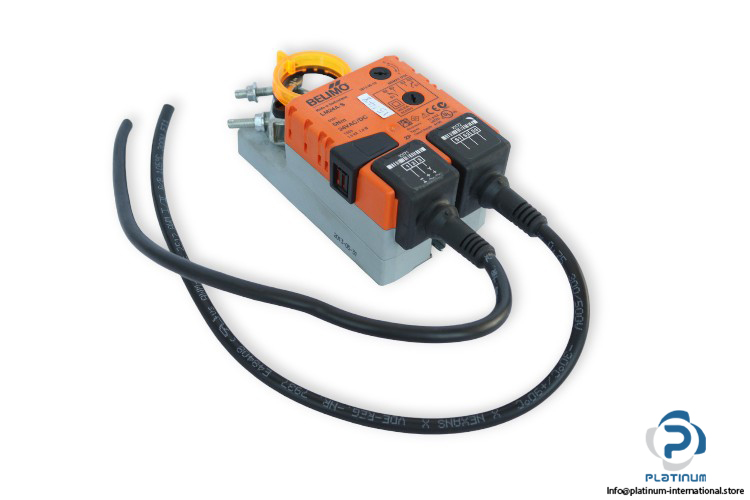

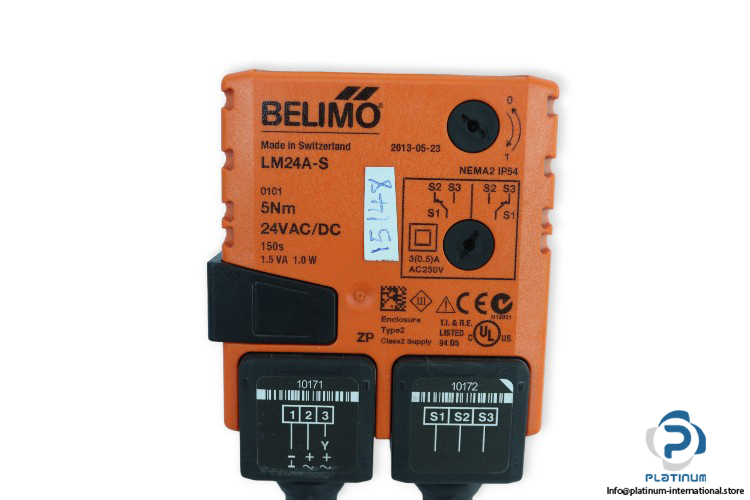

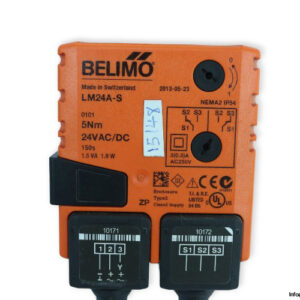

Belimo LM24A-S Rotary Damper Actuator

Manufacturer: BELIMO
Type: Rotary Damper Actuator
Model: LM24AS

Used for: Adjusting Dampers in Technical Building Installations
Rated Nominal Voltage: 24 V AC / DC
Power Consumption (Operation): 1 W
Power Consumption (Rest Position): 0.2 W
Power Consumption for Wire Sizing: 1.5 VA
Torque Motor: 5 Nm
Frequency: 50 … 60 Hz
Auxiliary Contact Switch: SPDT 2 Changeover (CO)
Switching Capacity Ratings: 250 V AC, 3 (0.5) A
Running Time (Motor): 150 s / 90°
Sound Power Level, Motor: 35 dB(A)
Angle of Rotation Max.: 95°
Control Type: Open / Close 3-Point
Position Indication: Mechanical, Pluggable
Connection Supply / Control, Auxiliary Switch: Cable 1 m, 3x 0.75 mm²
Protection Class: IP54
Ambient Temperature: -30 … 50 °C
Dimensions: 116 x 66 x 61 mm
