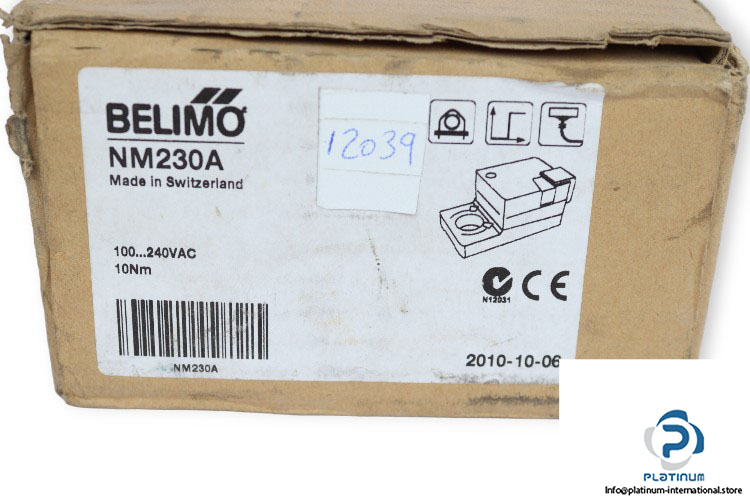

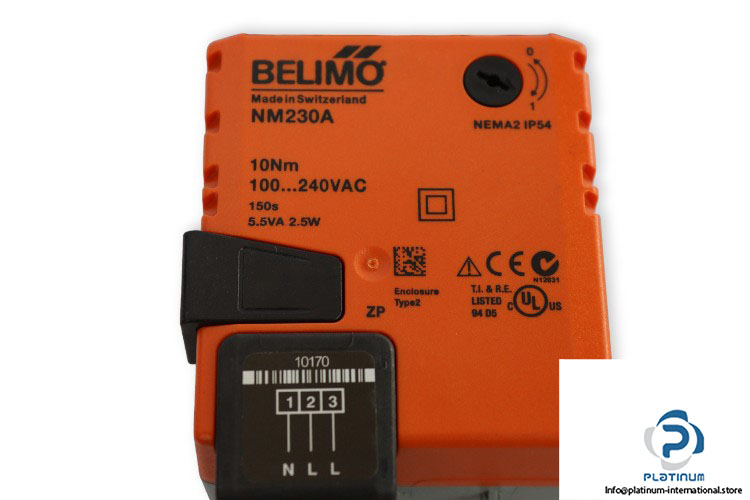

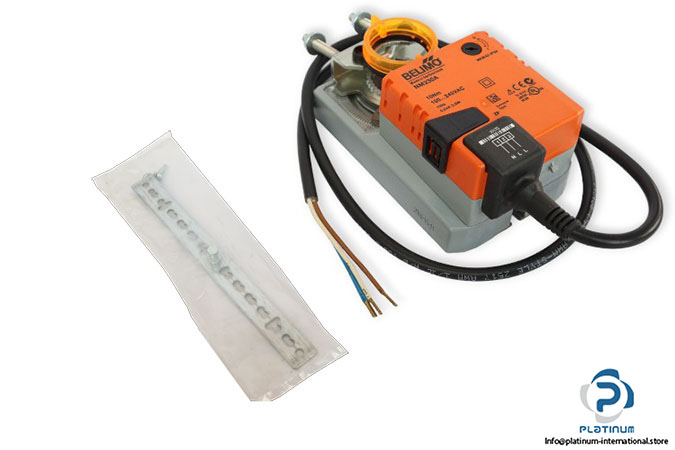

Belimo NM230A Rotary Actuator

Manufacture: Belimo
Type: Rotary actuator
Model: NM230A

Torque motor: 10 Nm
Nominal voltage: 100 … 240 V AC (85 … 265 V AC)
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 2.5 W
Power consumption in rest position: 0.6 W
Power consumption for wire sizing: 5.5 VA
Angle of rotation: Max. 95°
Direction of motion motor: selectable with switch 0 (ccw rotation) / 1 (cw rotation)
Rated impulse voltage supply / control: 2.5 kV

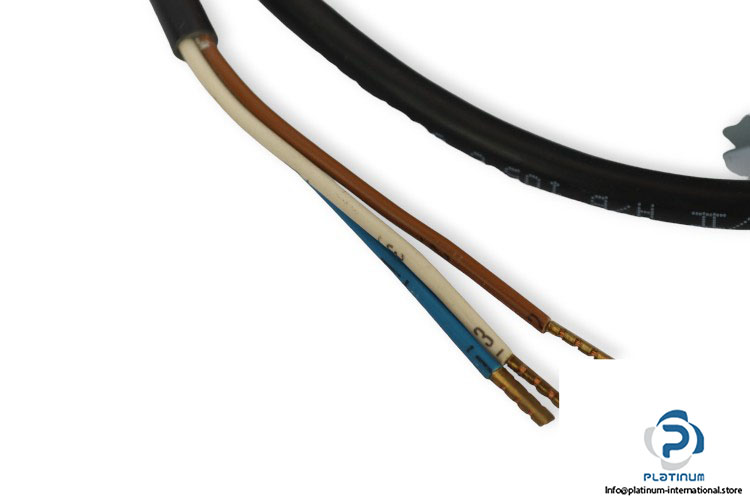

Connection supply / control: Cable 1 m, 3x 0.75 mm²
Running time motor: 150s / 90°
Degree of protection: IP54 NEMA 2
Ambient temperature: -30 … 50°C
Dimensions: 62 x 80 x 165 mm
