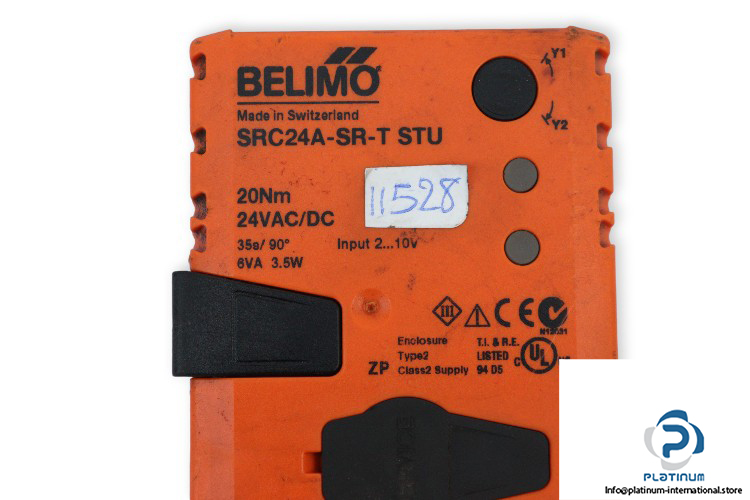

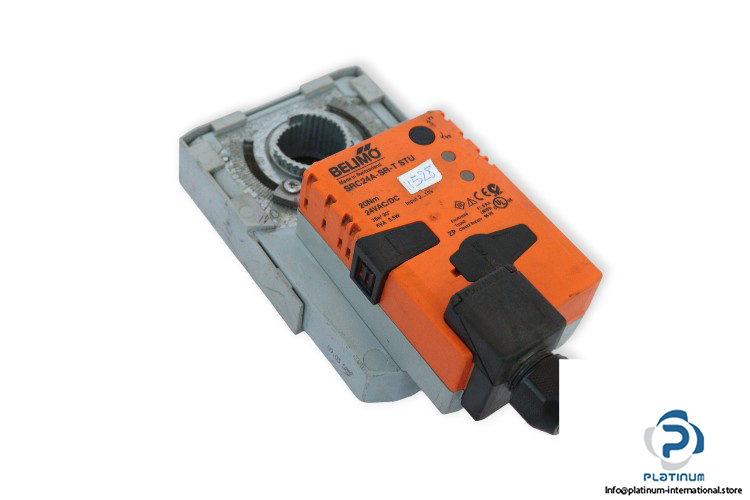

Belimo SRC24A-SR-TP STU Rotary Actuator

Manufacture: Belimo
Type: Rotary actuator
Model: SRC24ASRTPSTU

Torque motor: 20 Nm
Nominal voltage: 24 V AC/DC (19.2…28.8 V AC/ 19.2…28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 3.5 W
Power consumption in rest position: 1.5 W
Power consumption for wire sizing: 6 VA
Input voltage range: 2 … 10 V
Running time motor: 35 s / 90°
Degree of protection: IP54
Ambient temperature: -30 … 50°C
Dimensions: 86 x 93 x 206 mm
