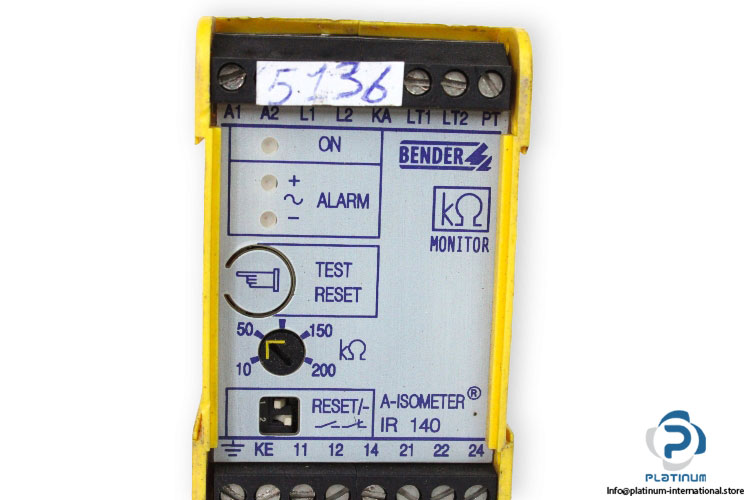

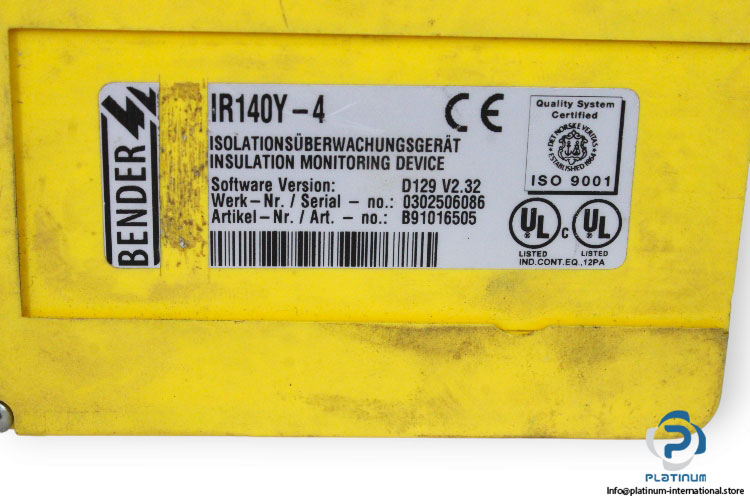

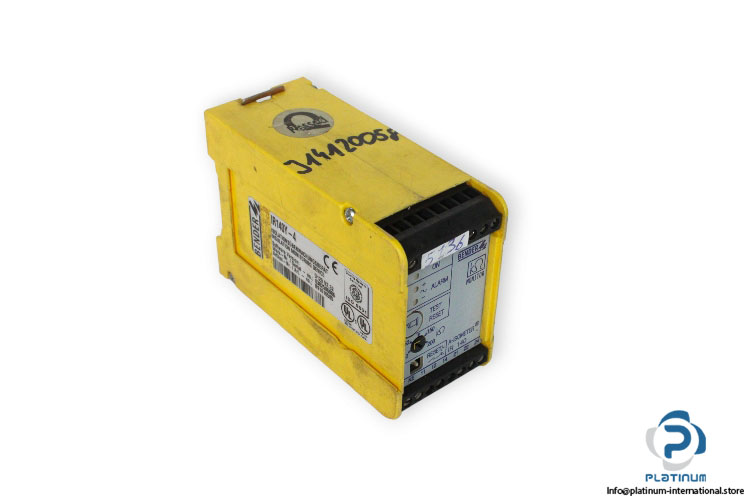

Bender IR140Y-4 B91016505 Insulation Monitoring Device

Manufacturer: BENDER
Type: Insulation Monitoring Device
Model: IR140Y4
Art No.: B91016505

Series: IR 140
Range: ISOMETER®
Used for: Unearthed AC Control Circuits (IT Systems)

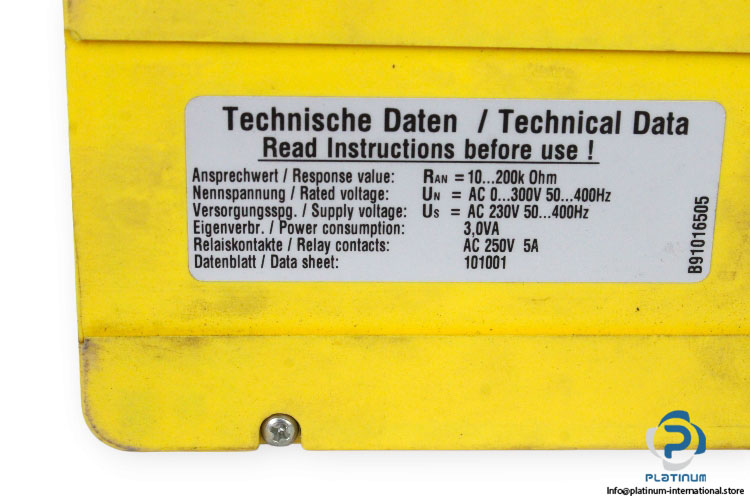

Nominal Voltage Range (U_n): 0 … 300 V AC
Supply Voltage (U_S): 230 V AC
Power Consumption: 3.0 VA
Response Value: 10…200 kΩ
Contact: 2 Changeover (CO)
Contact Ratings: 250 V AC, 5 A
Protection Class: IP30
Ambient temperature range: -10 … 55 °C
Dimensions: 74 x 45 x 105 mm
