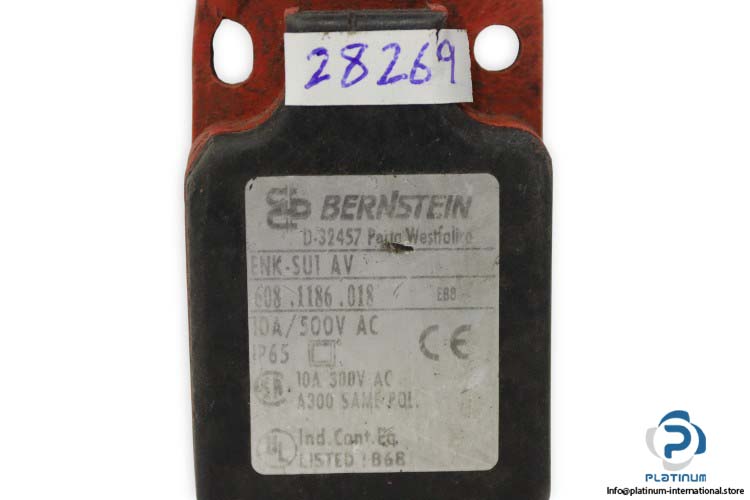

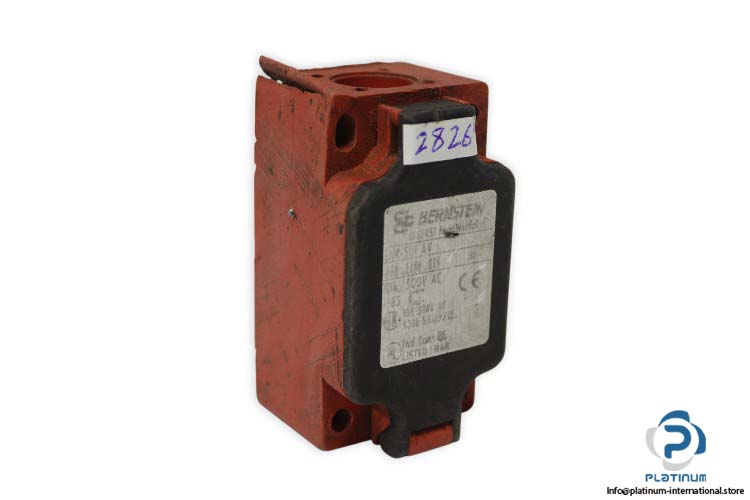

Bernstein ENK-SU1 AV Plastic Bodied Limit Switch
Gebraucht
Auf Lager1 EinheitVersandbereit
11,11$
LIMIT SWITCH
Bernstein ENK-SU1 AV plastic-bodied limit switch with turret head roller actuator, IP65 protection, and 400 V AC insulation rating for industrial position detection.1NC1NO400VAVBernsteinBodiedENK-SU1HeadIndustrialIP65LimitPlasticPositionRollerSwitchthermoplasticTurret
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
BERNSTEIN ENK-SU1 AV PLASTIC BODIED LIMIT SWITCH
The Bernstein ENK-SU1 AV is a robust plastic-bodied limit switch designed for reliable position detection in industrial automation and machinery applications. Featuring a thermoplastic, glass fibre reinforced housing and a turret head roller actuator, it ensures long service life and dependable performance in demanding environments. This model offers high insulation voltage, wide operating temperature range, and IP65 protection.
Manufacturer: BERNSTEIN
Type: Plastic Bodied Limit Switch
Model: ENK-SU1 AV
Part No.: 608-1186-018
| Rated Insulation Voltage (Ui) | 400 V AC |
| Conventional Thermal Current (Ithe) | 10 A |
| Rated Operational Voltage (Ue) | 240 V |
| Short-Circuit Protective Device | Fuse 2 A gG |
| Enclosure | Thermoplastic, glass fibre reinforced (UL 94-V0) |
| Cover | Thermoplastic, glass fibre reinforced (UL 94-V0) |
| Actuator | Turret head, roller (thermoplastic) |
| Cable Entrance | 1 x M20 x 1,5 |
| Protection Type | IP65 |
| Contact | 1 NC, 1 NO |
| Ambient Temperature | -30 °C ... 80 °C |
