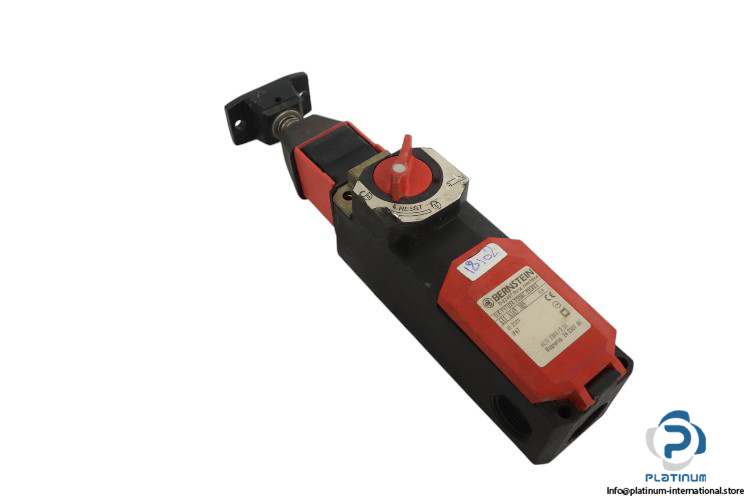

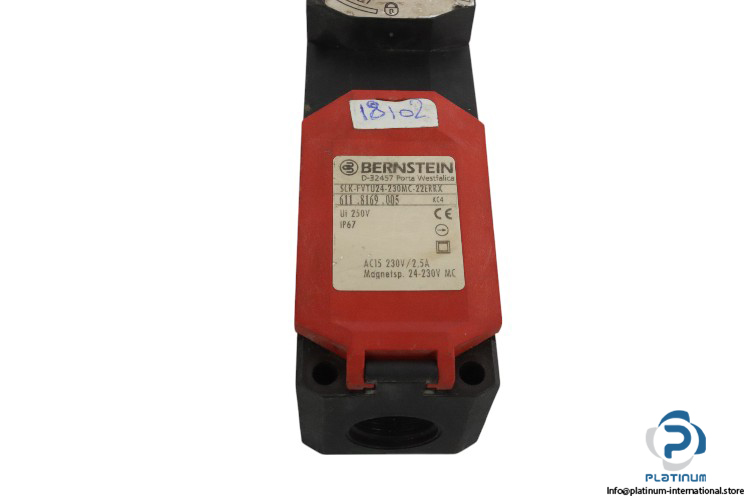

Bernstein SLK-FVTU24-230MC-22ERRX Safety Switch
155,55$
Bernstein SLKFVTU24230MC22ERRX Safety Switch High-performance safety switch with a separate actuator, 4 NC contacts, and IP67 protection. Designed for industrial safety applications requiring reliable machine protection.
Bernstein SLKFVTU24230MC22ERRX Safety Switch
The Bernstein SLKFVTU24230MC22ERRX is a high-performance safety switch from the SLK Series, designed for industrial safety applications. This switch ensures reliable machine safeguarding by utilizing a separate actuator and a durable, reinforced thermoplastic housing. With an IP67 rating, it provides excellent protection against dust and water, making it suitable for harsh environments.
Key Details:
Manufacturer: Bernstein
Type: Safety Switch
Model: SLKFVTU24230MC22ERRX
Part No.: 611.8169.005
Series: SLK
Designed for high reliability and durability, this safety switch is ideal for industrial applications requiring robust safety mechanisms and secure machine protection.
| Actuator | Separate actuator (Steel / PA) |
| Contact Type | 4 NC |
| Contact Rating | 2.5 A, 230 V AC |
| Switching Principle | 4 slow make and break contact elements |
| Insulation Voltage Ui | 250 V |
| Operating Voltage | 24 V DC; 24, 110, 230 V AC |
| Connection | Cage tension spring |
| Cable Entrance | 3 x M20 x 1.5 |
| Body Material | Thermoplastic, glass fiber reinforced |
| Actuating Head Material | Thermoplastic, glass fiber reinforced |
| IP Rating | IP67 |
| Operating Temperature | -25 to 70 °C |
| Body Dimensions | 184 x 50 x 51 mm |
