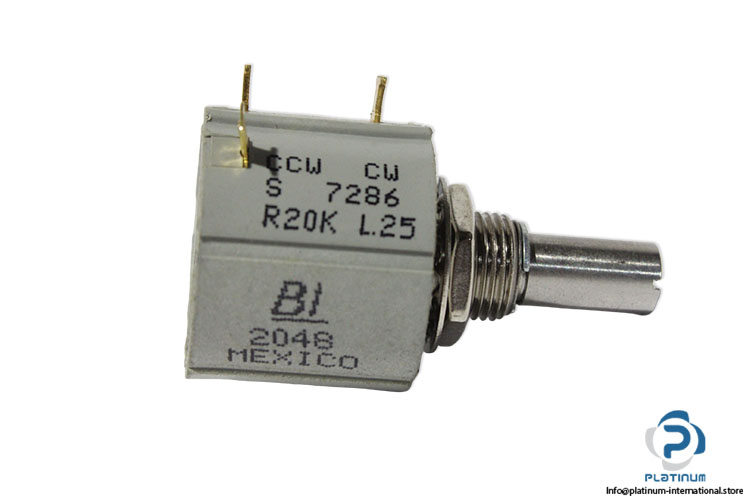

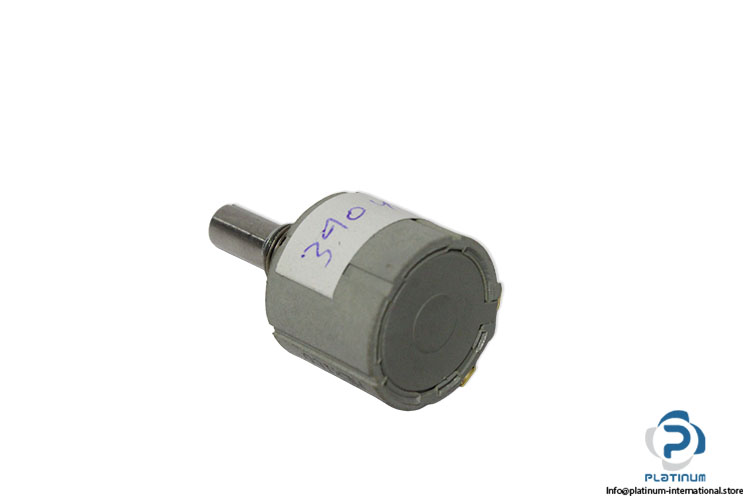

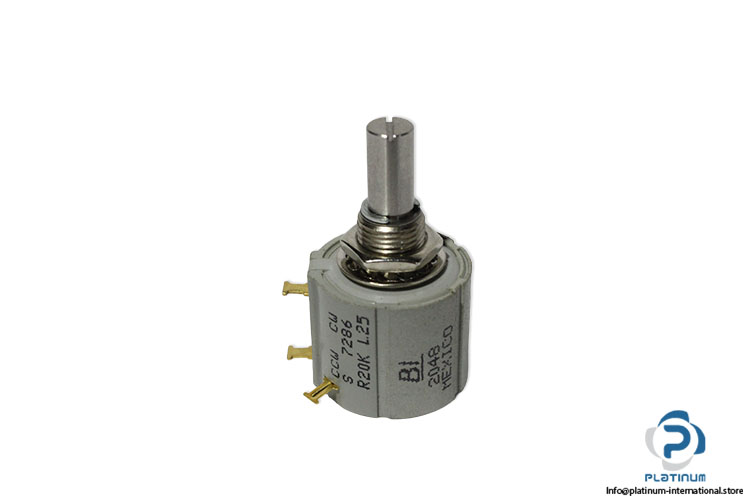

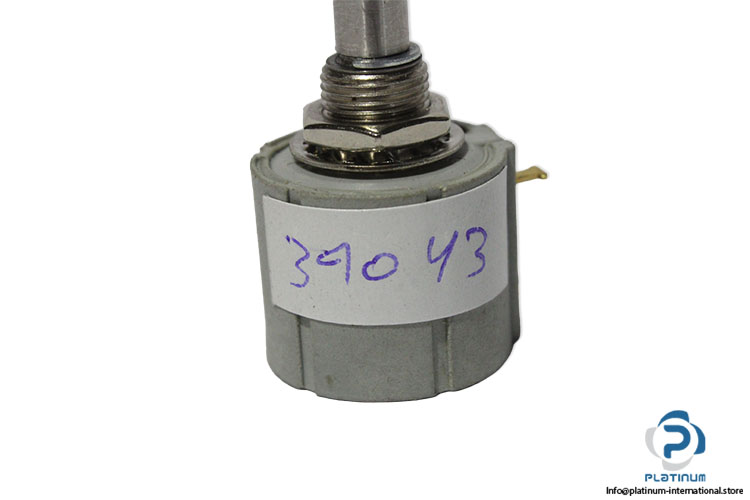

BI Technologies 7286 Precision Potentiometer
Neu
Auf Lager3 EinheitenVersandbereit
Precision Potentiometer BI Technologies precision potentiometer with 20 ohms resistance, ±0.25% linearity tolerance, and 2.0 W power rating, designed for accurate industrial and electronic control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Series | 7280 |
| Code | 2048 |
| Part No. | 7286R20KL.25 |
| Resistance Value | 20 ohms |
| Linearity Tolerance | ±0.25% (L.25) |
| Resistance Tolerance | ±5% |
| Shaft Diameter | 1/4" (6.35 mm) |
| Bushing Diameter | 3/8" |
| Power rating | 2.0 Watts at 70°C, derating to 0 at 125°C |
| Number of gangs | max.2 |
| Operating temperature range | -40°C to +125°C dynamic, -55°C to +125°C static |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093747 |
| Weight | 0,02 |
