Bielomatik SAS 3150 Flow Control Valve
Neu
Auf Lager6 EinheitenVersandbereit
144,44$
Flow Control Valve
The BIELOMATIK SAS 3150 Flow Control Valve is designed for precise air flow control, featuring an electrically actuated mechanism with an operating pressure range of 5 to 95 bar and a flow rate of 31.5 I/min.1/43150ActuatedAirBielomatikconnectionControlElectricallyflowGIndustrialOperatingPneumaticPressureRateSASsupplyValvevoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

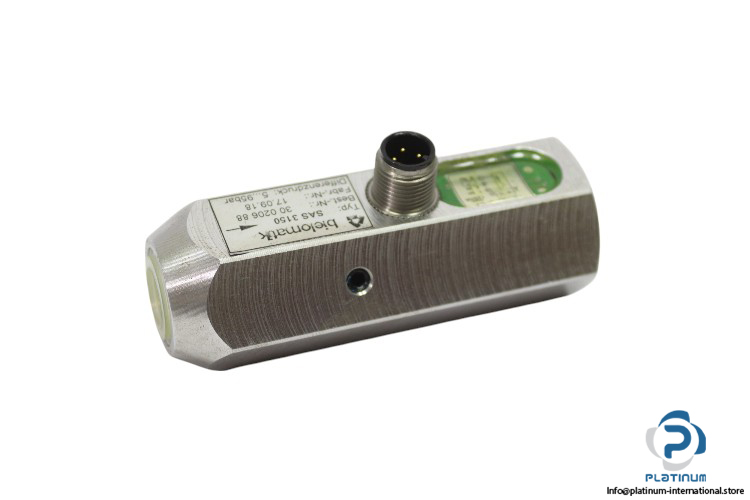

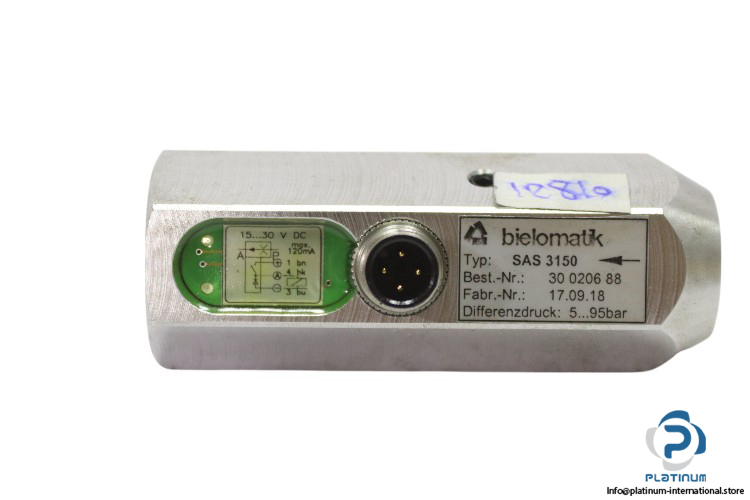

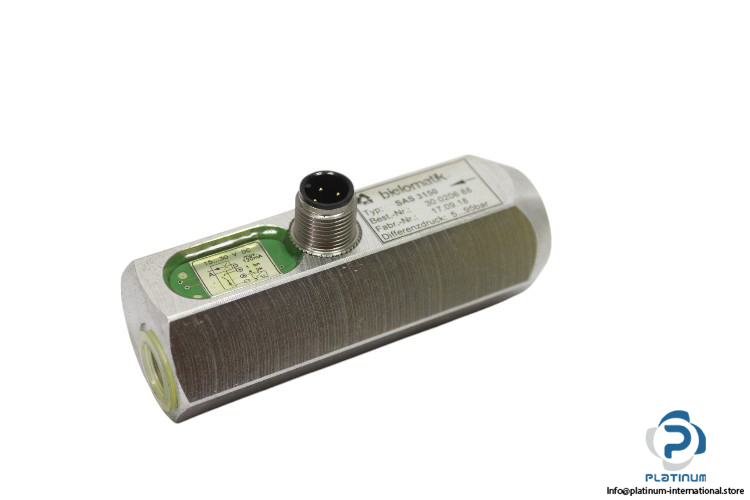

BIELOMATIK SAS 3150 Flow Control Valve
The BIELOMATIK SAS3150 Flow Control Valve is an electrically actuated valve designed for precise control of air flow. With a wide operating pressure range of 5 to 95 bar and a flow rate of 31.5 I/min, it ensures optimal performance in industrial applications.
Manufacturer: BIELOMATIK
Type: Flow Control Valve
Model: SAS 3150
Part No.: 30 0206 88
Fabr. No.: 17.09.18
| Fluid | Air |
| Type of Actuation | Electrically |
| Operating Pressure | 5 / 95 bar |
| Flow Rate | 31.5 I/min |
| Supply Voltage | 15 / 30 V DC |
| Current Consumption Max. | 120 mA |
| Pneumatic Connection | G 1/4 |
