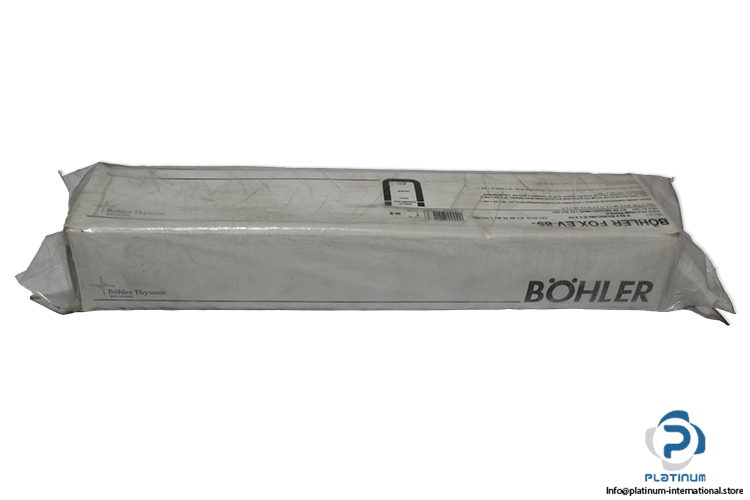

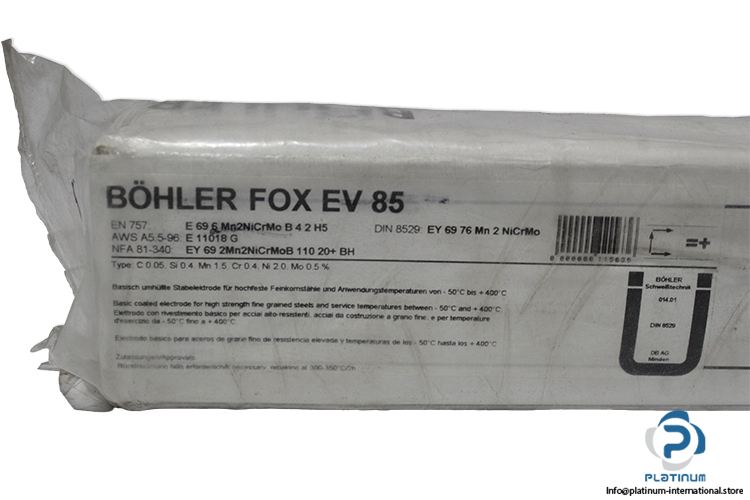

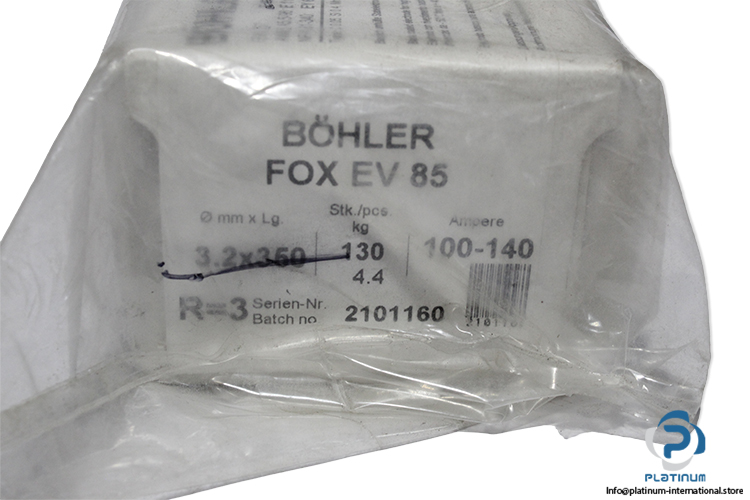

Bohler FOX EV 85 ROD Electrode
Elektrodenstab Bohler FOX EV 85 Basis-Mn-Ni-Mo legierte Elektrode mit hoher Duktilität, Rissbeständigkeit und Kaltleistung bis zu -60 °C. Ideal zum Schweißen hochfester feinkörniger Stähle mit einer Streckgrenze bis zu 690 MPa.
Bohler FOX EV 85 Rod Electrode
The Bohler FOX EV 85 is a basic Mn-Ni-Mo alloyed rod electrode developed for welding high-strength fine-grained constructional steels. It provides high ductility, crack resistance, and excellent low-temperature performance.
Manufacturer: Bohler
Type: Rod Electrode
Model: FOX EV 85 E 69 6 Mn2NiCrMo B 4 2 H5
Serial No.: 2101160
Electrode Dimensions and Current Range:
Recommended for structural steel fabrication, heavy machinery manufacturing, and demanding industrial welding applications requiring certified and crack-resistant weld deposits.
| Application | Basic Mn-Ni-Mo-alloyed electrode with high ductility and crack resistance for high-strength fine-grained constructional steels. Low-temperature ductility at “60 °C and resistant to ageing. Easy weldability in all positions except vertical-down. |
| Polarity | DC+ |
| Base Materials | Quenched and tempered fine-grained steels up to 690 MPa yield strength |
| Approvals | TUV (4313.), DB (10.014.22), SEPROZ, BV, CE |
| Redrying if Necessary | 300 “ 350 °C, min. 2 h |
| No. of Items / Set | 130 |
| 2.5 mm | Current 70 “ 100 A / Length 350 mm |
| 3.2 mm | Current 100 “ 140 A / Length 350 mm |
| 4 mm | Current 140 “ 180 A / Length 450 mm |
| 5 mm | Current 190 “ 230 A / Length 450 mm |
