Bosch 0 822 222 320 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The BOSCH 0 822 222 320 ISO Cylinder is a square-shaped pneumatic actuator featuring a 50 mm bore, 35 mm stroke, G 1/4 connection, and 10 bar pressure rating for reliable performance.01/4102223203550822ActingActuatorAirAutomationbarboreBoschCompressedconnectionCylinderDoubleGIndustrialISOmalemmPistonPneumaticPressureRODShapeSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

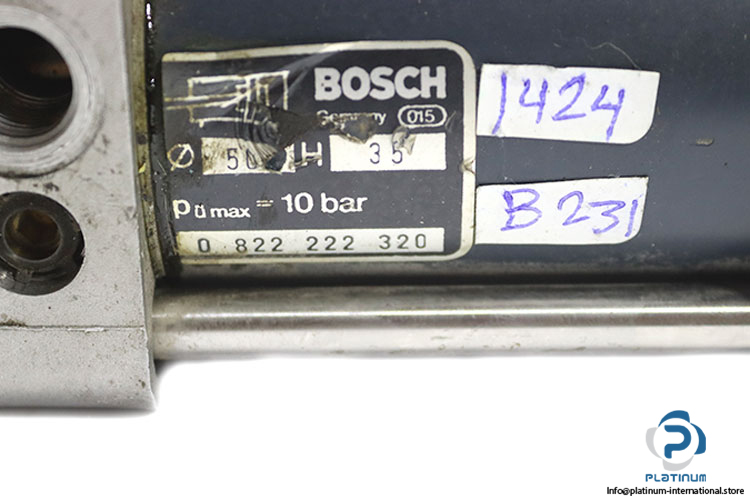

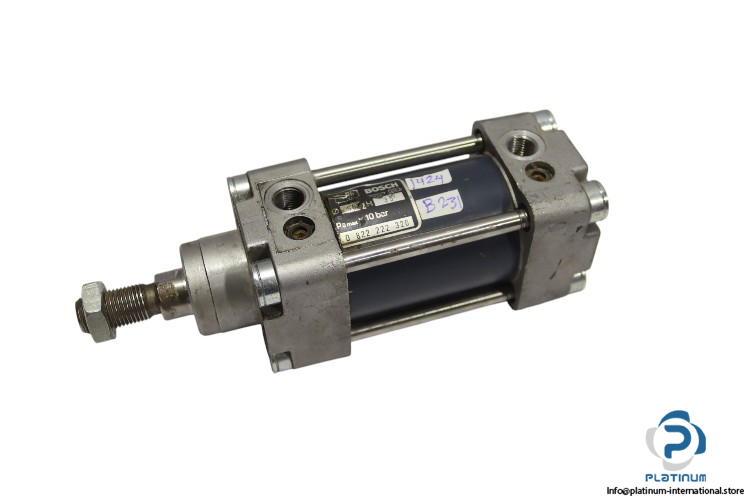

BOSCH 0 822 222 320 ISO Cylinder
The BOSCH 0822222320 ISO Cylinder is a compact and robust pneumatic actuator designed for efficient motion control using compressed air. Built to ISO standards, it features a square shape and a male piston rod end, ideal for demanding industrial applications.
Manufacturer: BOSCH
Type: ISO Cylinder
Model: 0 822 222 320
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke Length | 35 mm |
| Bore x Stroke | 50 x 35 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 64 x 170 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
