Bosch 0 822 322 842 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The BOSCH 0 822 322 842 ISO Cylinder features a 50 mm bore, 430 mm stroke, square body, and double operation mode. Ideal for high-efficiency pneumatic motion control.01/41032243050822842ActingActuatorAirAutomationbarBodyboreBoschCompressedconnectionCylinderDoubleGIndustrialISOmalemmPneumaticPressureRODSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

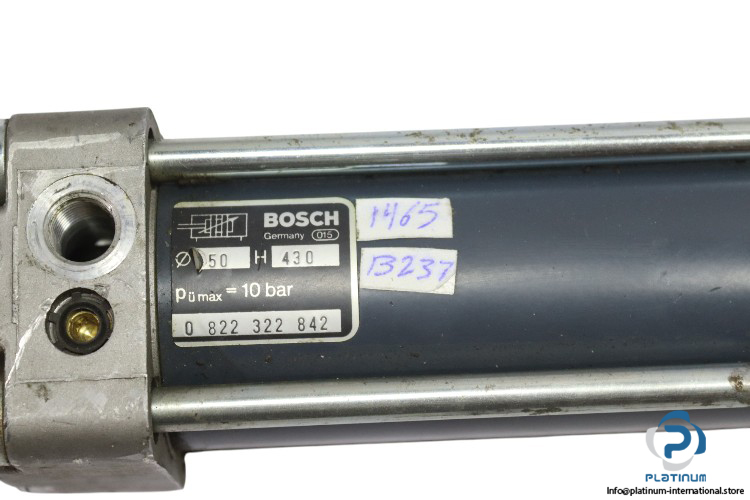

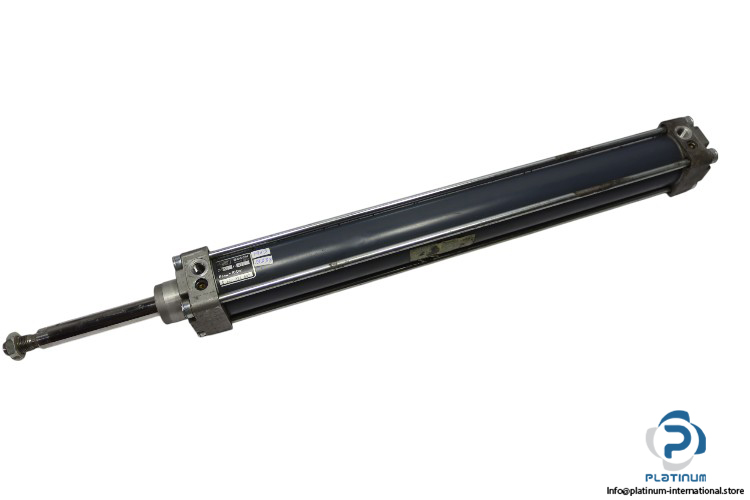

BOSCH 0 822 322 842 ISO Cylinder
The BOSCH 0822322842 ISO Cylinder is a high-precision pneumatic actuator designed for reliable performance in industrial automation systems. With a durable square body and double operation mode, it delivers consistent motion under a maximum pressure of 10 bar.
Manufacturer: BOSCH
Type: ISO Cylinder
Model: 0 822 322 842
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke Length | 430 mm |
| Bore x Stroke | 50 x 430 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 65 x 585 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
