Bosch 0 822 323 007 ISO Cylinder

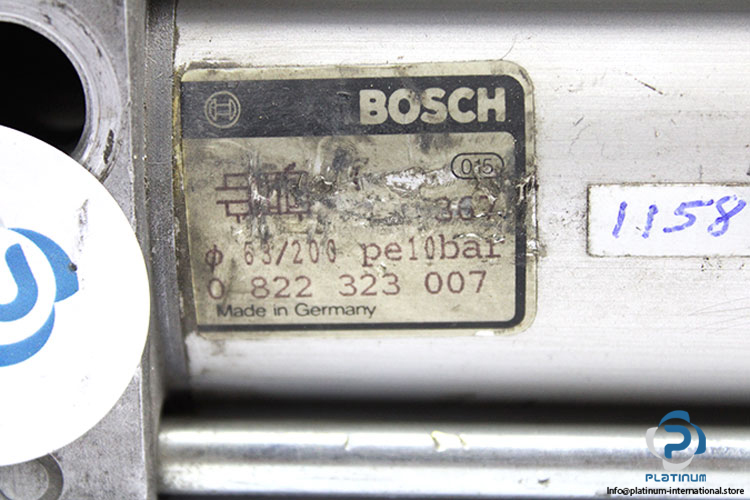

BOSCH ISO Cylinder 0 822 323 007

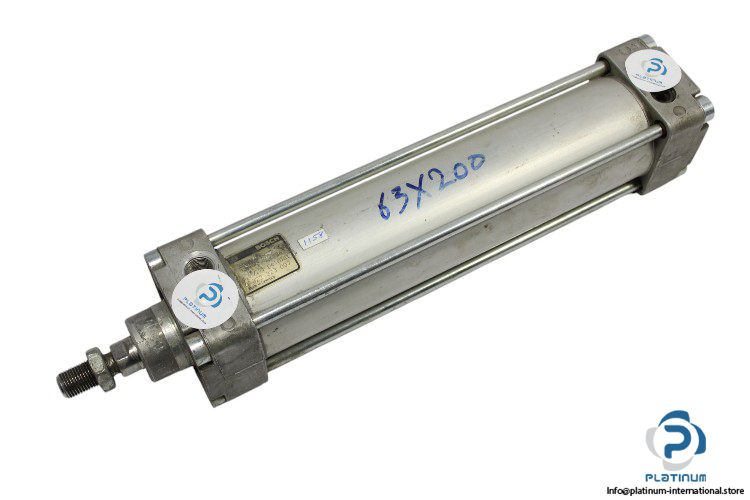

The BOSCH ISO Cylinder 0822323007 is designed for efficient pneumatic operations. This high-performance cylinder is built to handle compressed air and offers reliable operation with a maximum pressure of 10 bar. It features a bore diameter of 63 mm, a stroke of 200 mm, and is ideal for a variety of industrial applications requiring precise movement and durability.

Manufacturer: BOSCH

Model: 0 822 323 007

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 200 mm
• Bore x Stroke: 63 x 200 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 75 x 310 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
