Bosch 0 822 822 005 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The Bosch 0 822 822 005 ISO Cylinder features a 50 mm bore and 125 mm stroke with a double rod design, square frame, and G 1/4 pneumatic connection for precision performance in automation systems.00051/412550822ActuatorAirAutomationboreBoschCompressedconnectionCylinderDoubleframeGIndustrialISOmmMotionPneumaticPrecisionRODSquareStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

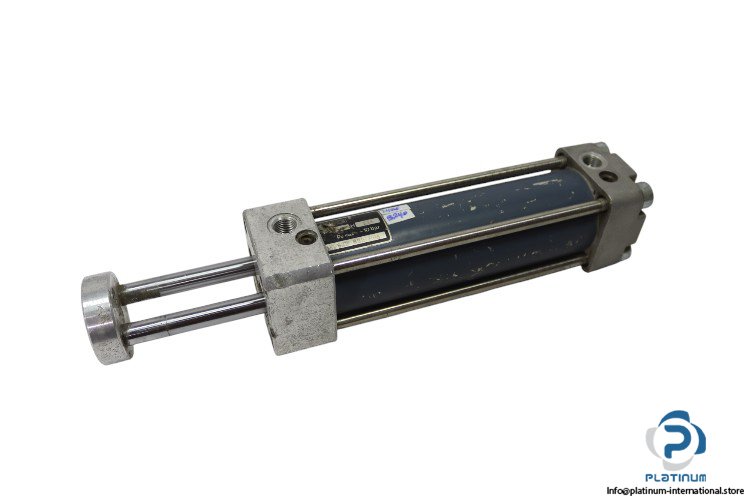

Bosch 0 822 822 005 ISO Cylinder
The Bosch 0822822005 ISO Cylinder is a robust pneumatic actuator engineered for industrial automation applications. Designed with a square shape and double rod configuration, it delivers precise linear motion powered by compressed air.
Manufacturer: BOSCH
Type: ISO Cylinder
Model: 0 822 822 005
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke Length | 125 mm |
| Bore x Stroke | 50 x 125 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 65 x 245 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Rod Design | Double Rod |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
