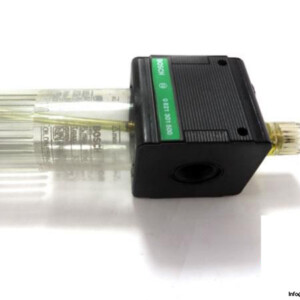

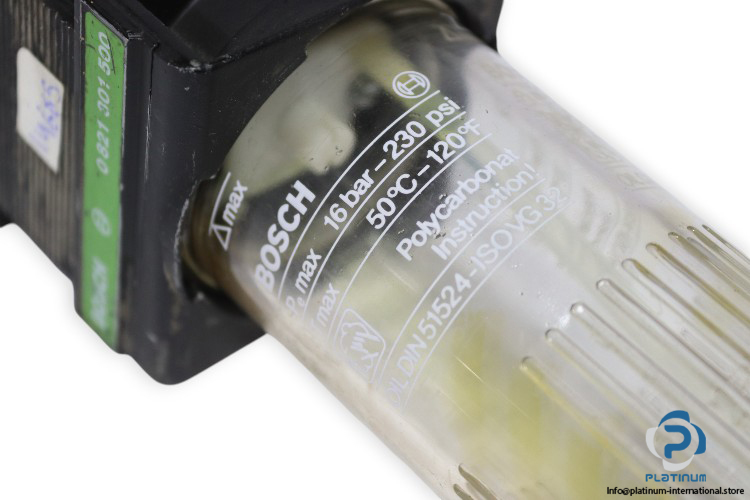

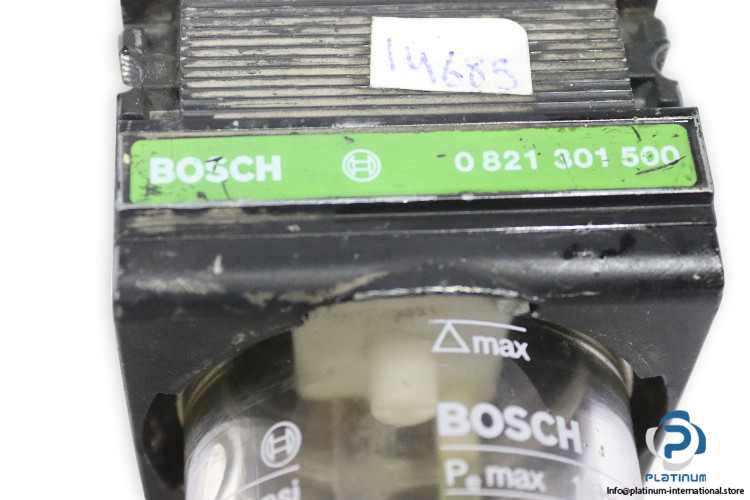

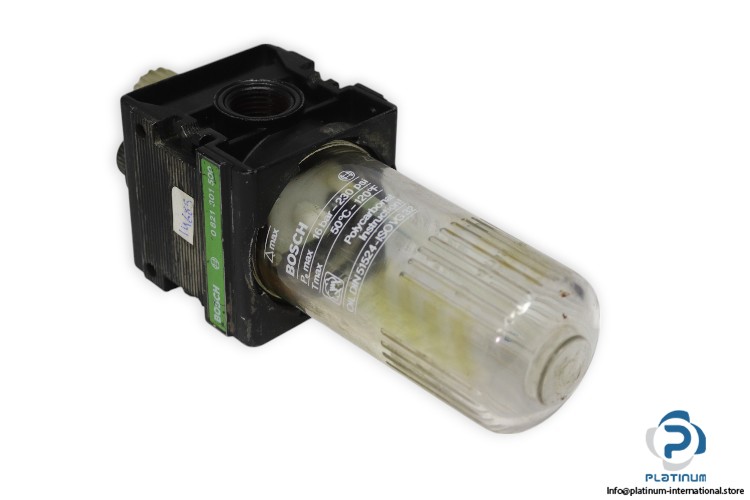

Bosch 08 21 301 500 Lubricator

BOSCH 0821301500 LUBRICATOR

The Bosch 0821301500 oil-mist lubricator is designed to deliver efficient lubrication in compressed-air systems, supporting high flow rates and durable construction for industrial environments.

Manufacturer: Bosch
Type: Lubricator
Part No.: 0821301500

Technical Specifications

• Type of Filling: Manual Oil Filling
• Function: Oil-Mist Lubricator
• Medium: Compressed Air, Neutral Gases
• Reservoir Volume: 125 cm³
• Working Pressure: 16 bar
• Nominal Flow Rate: 6000 l/min
• Ambient Temperature: 50°C
• Storage Temperature: 50°C
• Pneumatic Connection: G ½
• ISO Certificate: VG 32
• Standard: DIN 51524
• Housing Material: Die Cast Zinc
• Front Plate Material: Acrylonitrile Butadiene Styrene
• Seal Material: Acrylonitrile Butadiene Rubber
• Reservoir Material: Polycarbonate
