Bosch 0821 303 400 Pneumatic Filter
Pneumatischer Filter mit Reservoir Der Bosch 0821303400 pneumatische Filter sorgt für saubere Luftzufuhr mit einem langlebigen Polycarbonat-Reservoir, G ¼ Anschluss und halbautomatischer Kondensatablass.

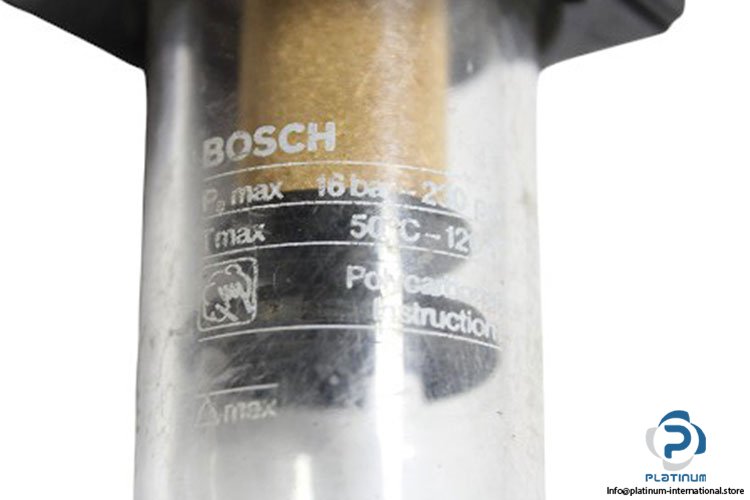

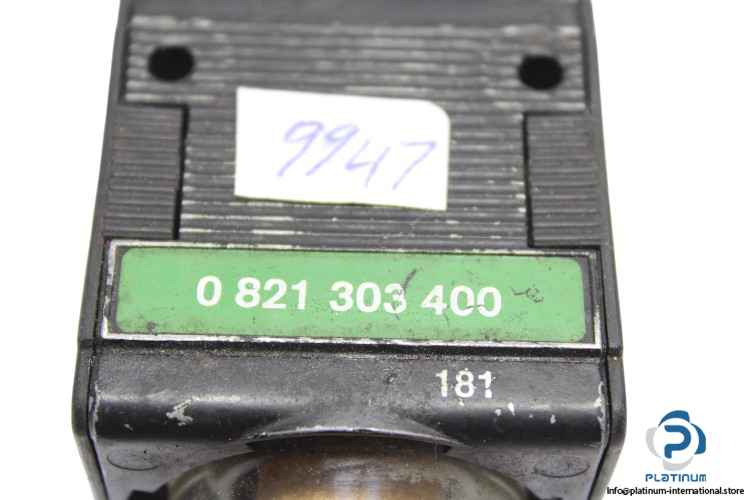

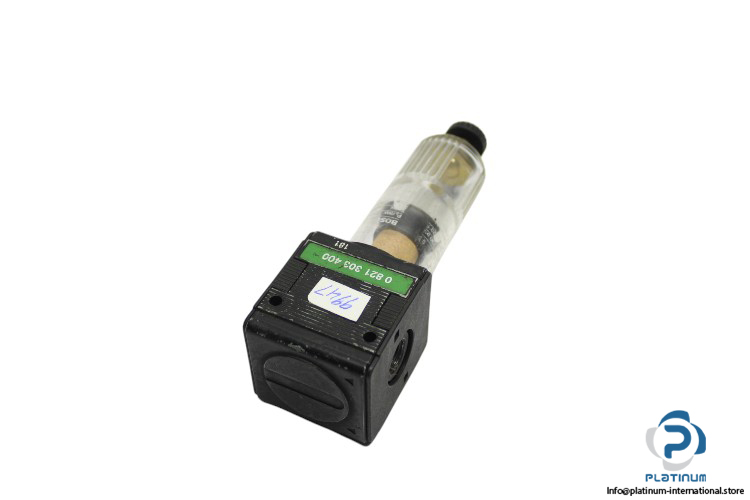

Bosch 0821303400 Pneumatic Filter with Reservoir
The Bosch 0821303400 Pneumatic Filter with Reservoir is designed for efficient air filtration in pneumatic systems, ensuring clean and dry air for optimal performance. Built with a durable die-cast zinc housing and a polycarbonate reservoir, this filter provides reliable operation under high pressure and temperature conditions.
Manufacturer: Bosch
Type: PNEUMATIC FILTER WITH RESERVOIR
Model: 0821303400
This pneumatic filter with reservoir ensures effective air purification, protecting sensitive pneumatic equipment from contaminants and extending system lifespan.
| Media | Compressed air, Neutral gases |
| Working Pressure Min./Max | 16 to 230 bar |
| Filter Reservoir Volume | 0.85 fl.oz |
| Temperature Range | 50 to 120 °C |
| Connection | G ¼ |
| Reservoir Material | Polycarbonate |
| Housing Material | Die-cast zinc |
| Condensate Drain | Semi-automatic, open without pressure |
