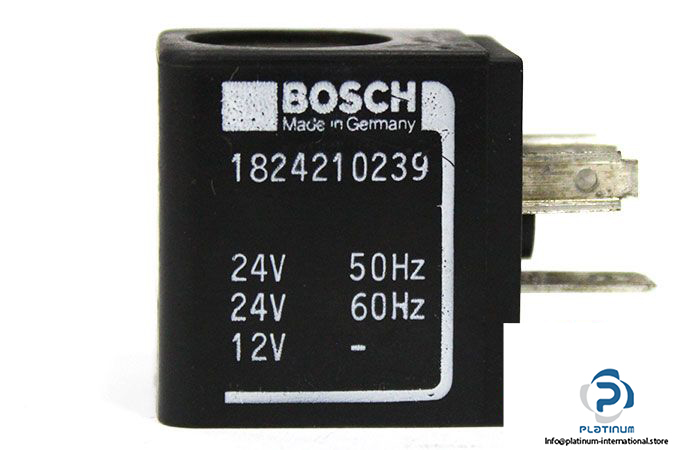

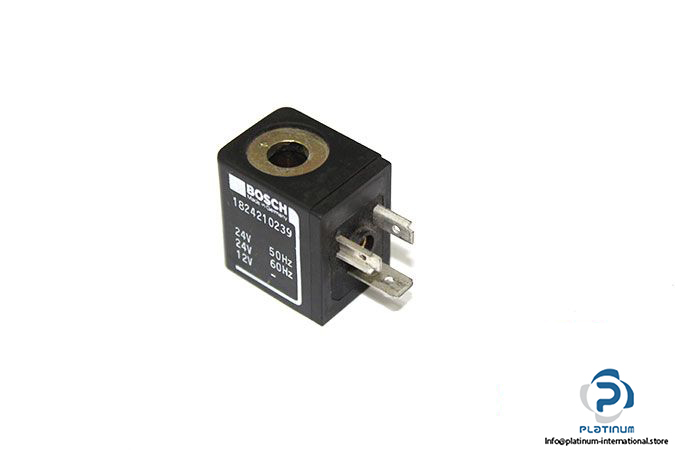

Bosch 1824210239 Solenoid Coil
Manufacturer: BOSCH
Type: Solenoid Coil
Model: 1824210239
Power supply:
Voltage: 12 V DC
- Power consumption: 5 W
Voltage: 24 V AC
- Switch-on power: 12 / 9.9 VA
- Frequency: 50/60 Hz
- Holding power: 9 VA /7.3 VA
Duty cycle: 100 %
Electrical connection: 3-pin – Plug
Plug design: Conical
Inner diameter: 9 mm – 8 mm
Length: 29 mm
Housing material: Thermoplastic elastomer
Ambient temperature: 0 °C … 50 °C
Protection Class: IP65
Weight: 0.06 kg
