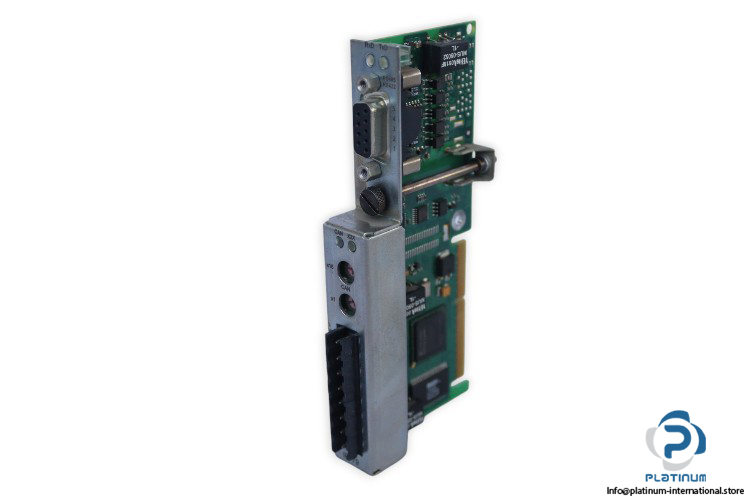

B&R 3IF779.9 MULTI-INTERFACE MODULE

Manufacturer: B&R
Type: Multi-Interface Module

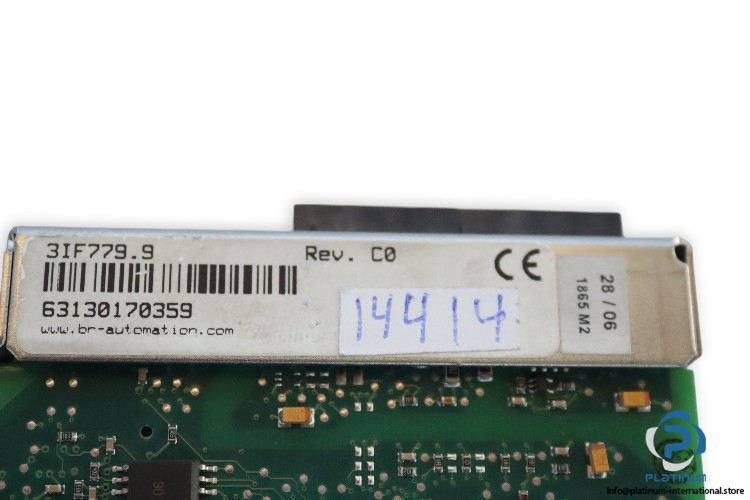

Model: 3IF7799
Part No.: 36130170359

Short Name: IF779
Description: Interface Module is an PCI Module and Can be Installed in all Corresponding Interface Module Slots (e.g. in the CP360)
Power Consumption: 2.51 W
Communication Module: 1XRS485/RS422, 1xCAN Bus, 1xX2X Link Master

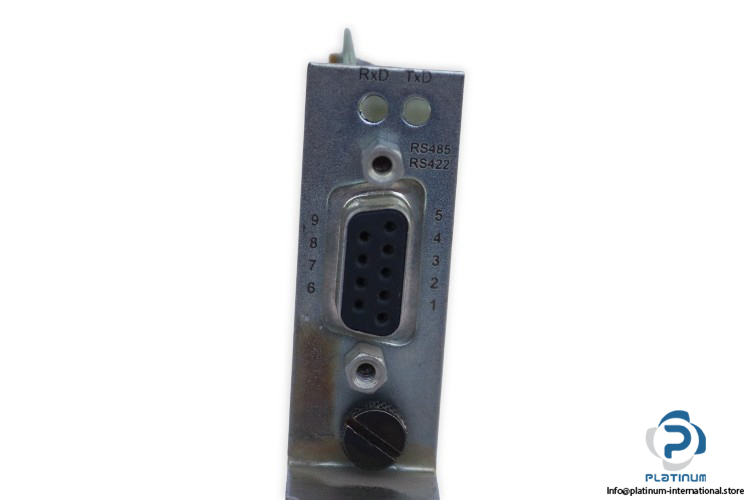

Interface IF1:
Type: RS485/RS422
Design: 9-Pin D-SUB Socket
Transfer Rate Max.: 115.2 Kbit/sec

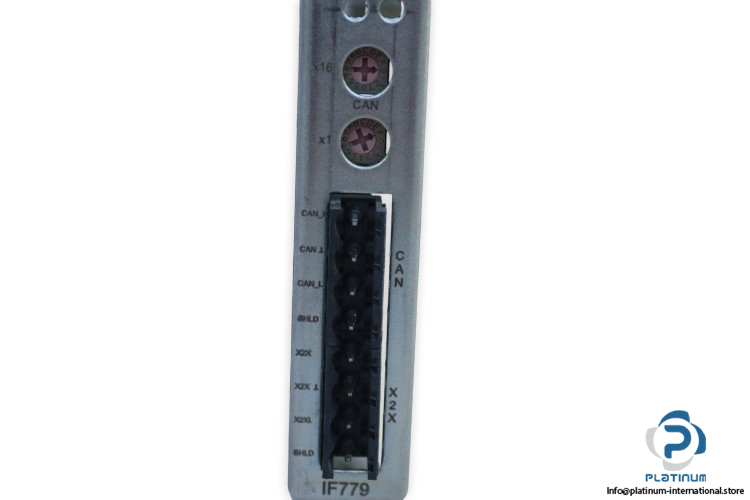

Interface IF2:
Type: CAN Bus
Design: 4-Pin Multipoint Connector
Transfer Rate Max.: 500 Kbit/sec
Interface IF3:
Type: X2X Link Master
Design: 4-Pin Multipoint Connector
Stations No. Max.: 253
Protection Class: IP20
Temperature: 0 … 60 °C
