B&R 8LSA35DA030S100-3 SERVO MOTOR
444,44$
Drehstrom-Synchron-Servomotor B&R 8LSA35.DA030S100-3, 400 V, 660 W, Nenn-Drehzahl 3000 U/min, EnDat 2.2 Encoder, IP64 Schutz, geschlitzte Welle. Entwickelt für präzise Bewegungssteuerung und Hochgeschwindigkeits-Industrielle Automatisierungssysteme.

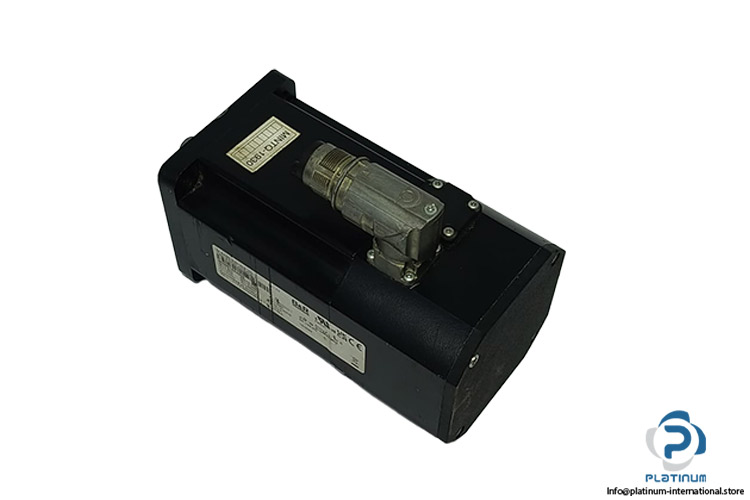

B&R 8LSA35.DA030S100-3 Three-Phase Synchronous Servo Motor
The B&R 8LSA35.DA030S100-3 is a high-performance three-phase synchronous servo motor from the 8LSA series, engineered for precision motion control, high dynamic response, and reliable industrial automation applications.

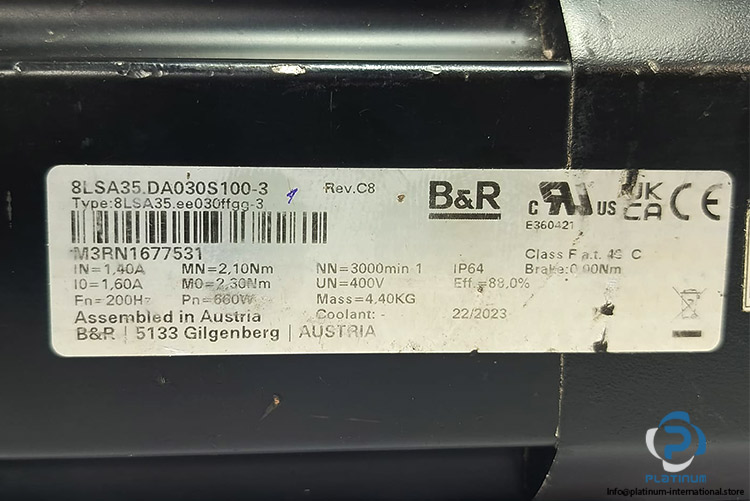

Manufacturer: B&R
Type: Three-Phase Synchronous Servo Motor
Model: 8LSA35.DA030S100-3
MNR: 8LSA35.ee030ffgg-3
Serial Number: M3RN1677531
Revision: C8
Series: 8LSA
Ideal for precision positioning systems, CNC machinery, packaging equipment, and high-speed automation lines requiring accurate torque control and dynamic performance.
| Number of Pole Pairs | 4 |
| Nominal Voltage (UN) | 400 V |
| Nominal Current (IN) | 1.4 A |
| Maximum Current (I0) | 1.6 A |
| Nominal Speed | 3000 rpm |
| Maximum Speed | 9000 rpm |
| Frequency | 200 Hz |
| Nominal Power (Pn) | 660 W |
| Nominal Torque (MN) | 2.10 Nm |
| Maximum Torque (MO) | 2.30 Nm |
| Efficiency | 88.0 % |
| Protection Class | IP64 |
| Insulation Class | F at 40 °C |

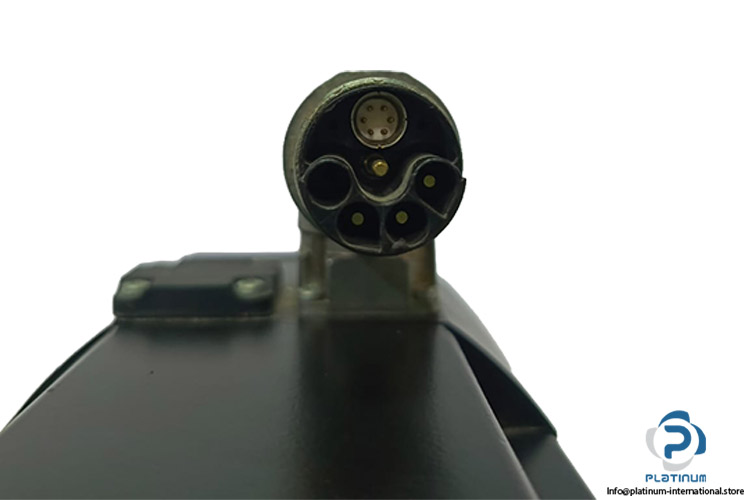

| Connection Direction | Angled Swivel Connector |
| EnDat | 2.2 Single-Turn |

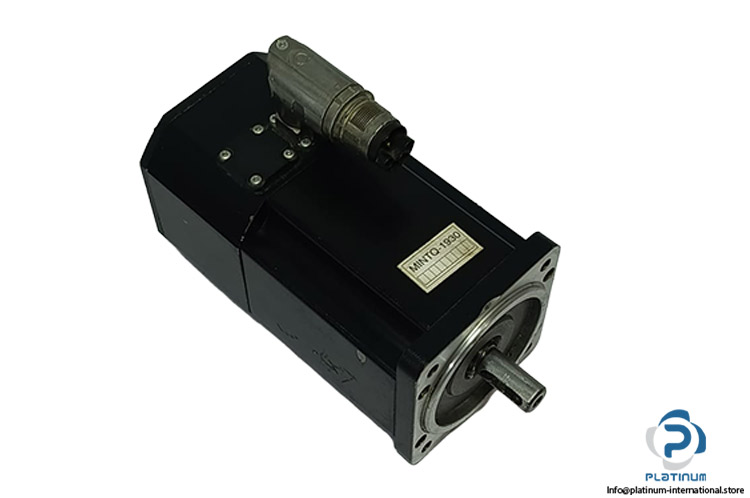

| Shaft End | Keyed Shaft |
| Certifications | CE, cURus |
