B&R 8MSA3L E3-46 SERVO MOTOR
Gebraucht
Auf Anfrage verfügbar
SERVO MOTOR
B&R 8MSA3L E3-46 is a 3-phase synchronous servo motor with 1.8 Nm rated torque, 330 V operating voltage, 6000 min»¹ speed, and IP64 protection, featuring EnDat multi-turn encoder and self-cooling design.3330V8MSA3LAutomationB&RControlCoolingDriveE3-46EncoderEnDatHigh-SpeedIndustrialIP64MotionmotorPhaseSelfServoSynchronous
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

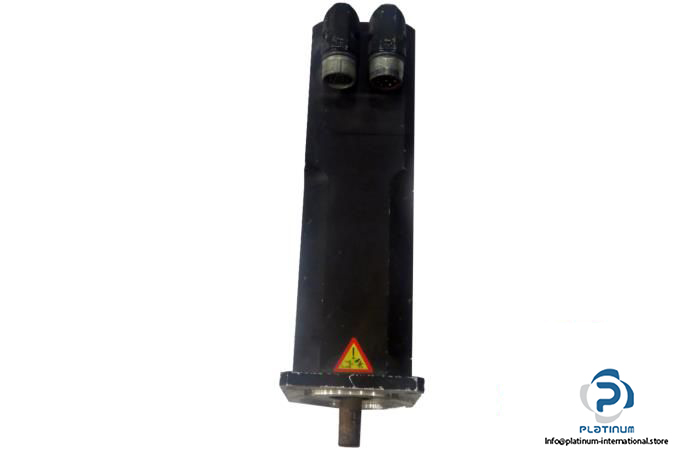

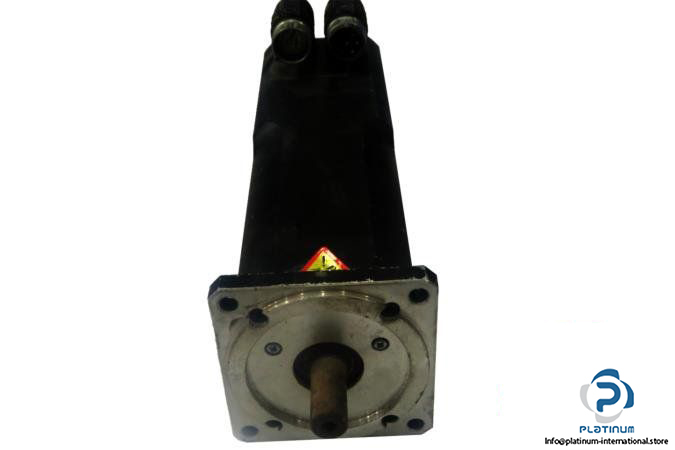

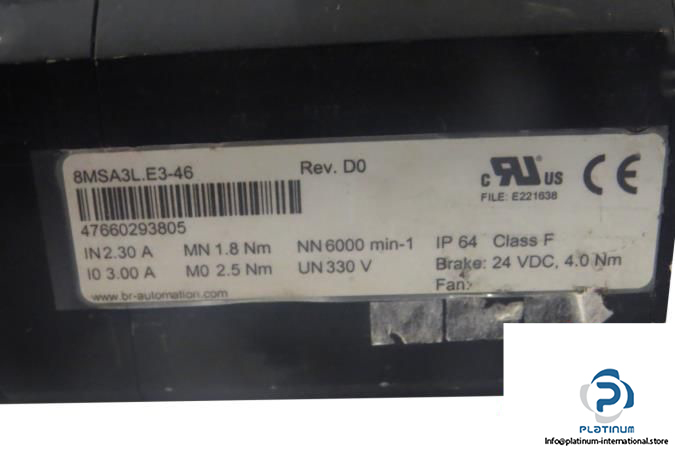

B&R AUTOMATION 8MSA3L E3-46 SERVO MOTOR
The B&R Automation 8MSA3L E3-46 is a high-performance 3-phase synchronous servo motor engineered for demanding industrial automation systems. Designed with advanced self-cooling technology and precise EnDat multi-turn encoder system, this motor offers exceptional reliability, speed, and torque consistency.
Manufacturer: B&R Automation
Type: Servo Motor “ 3 Phase Synchronous Motors
Model: 8MSA3L E3-46
Part No.: 47660293805
Revision: d0
Cooling Type: Self Cooling
| Size | 3 |
| Length | Large Rated Torque |
| Encoder System | EnDat Multi-turn, 32 Lines, Inductive |
| Rated Current | 2.30 A |
| Stall Current | 3.00 A |
| Rated Torque | 1.8 Nm |
| Stall Torque | 2.5 Nm |
| Speed | 6000 min»¹ |
| Voltage | 330 V |
| Protection Class | IP64 |
| Brake Voltage | 24 VDC |
| Brake Rated Torque | 4.0 Nm |
