B&R X20AT4222 TEMPERATURE INPUT MODULE
Neu
Auf Lager1 EinheitVersandbereit
169,99$
Temperatureingangmodul der B&R X20-Serie mit konfigurierbaren Sensorkanälen, unterstützt Pt100- und Pt1000-Sensoren für präzise industrielle Temperaturmessung.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

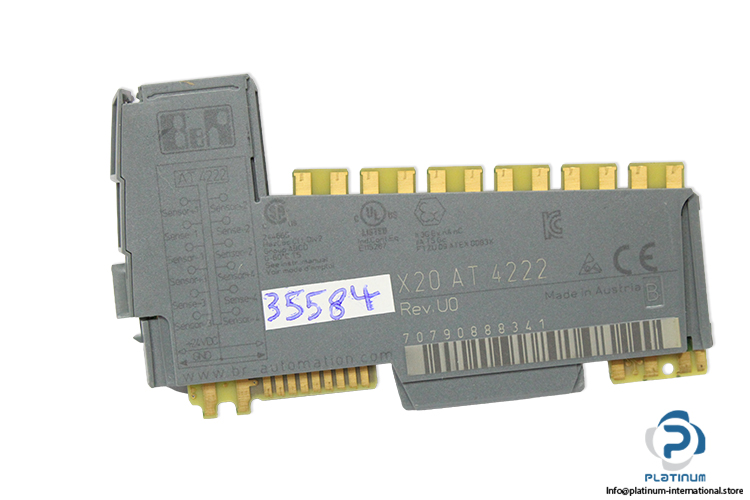

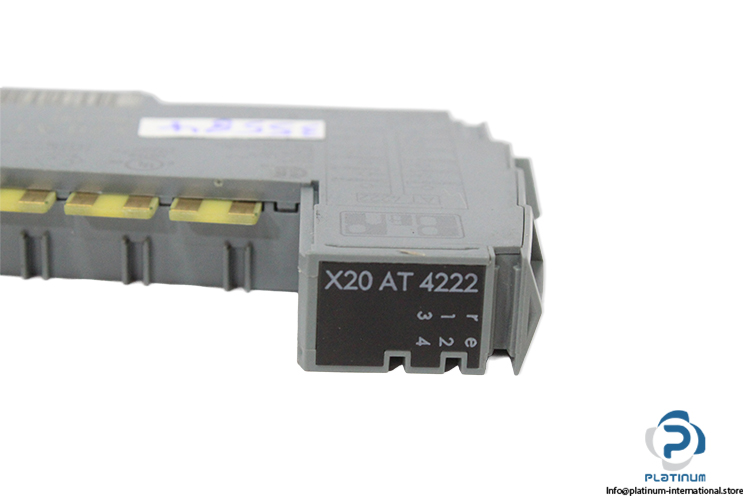

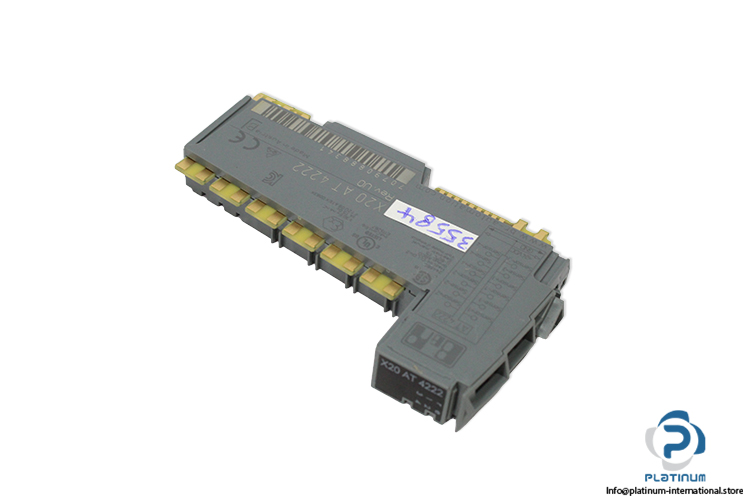

B&R X20AT4222 Temperature Input Module
The B&R X20 AT 4222 temperature input module is designed for precise and reliable temperature measurement in industrial automation systems. As part of the X20 series, it supports multiple resistance temperature sensors with high accuracy and configurable channels, making it suitable for demanding control and monitoring applications.
Manufacturer: B&R
Type: Temperature Input Module
Model: X20 AT 4222
Revision: UO
| Series | X20 |
| Supply Voltage | 24 V DC |
| Power Consumption | 0.01 W |
| Resistance Measurement Range | 0.1 / 4500 ohm / 0.05 / 2250 ohm |
| Sensor Type | Configurable per channel |
| Supported Sensors | Pt100, Pt1000 |
| Temperature Range (Pt100) | -200 / 850 °C |
| Temperature Range (Pt1000) | -200 / 850 °C |
| Digital Converter Resolution | 4 |
| Counter Size | 16-bit |
| Maximum Transfer Rate | 1 Mbit/s |
| Protection Class | IP20 |
| Operating Temperature | -25 / 60 °C |
