B&R X20CA0E61.00200 ETHERNET CONNECTION CABLE

Name: B&amp;R X20CA0E61.00200 ETHERNET CONNECTION CABLE
SKU: 1095580
Availability: LimitedAvailability

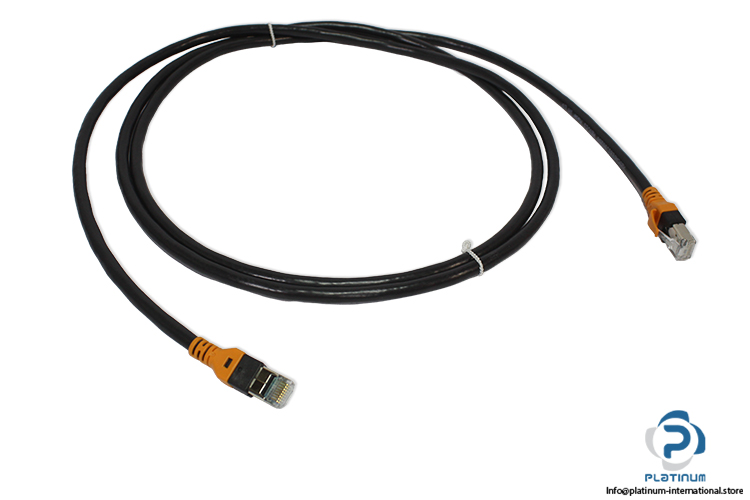

br-X20CA0E61.00200-connection-cable(new)

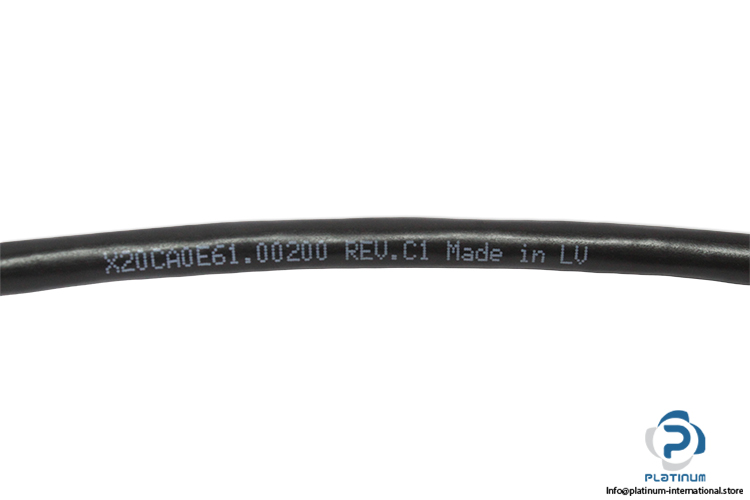

br-X20CA0E61.00200-connection-cable(new)-1

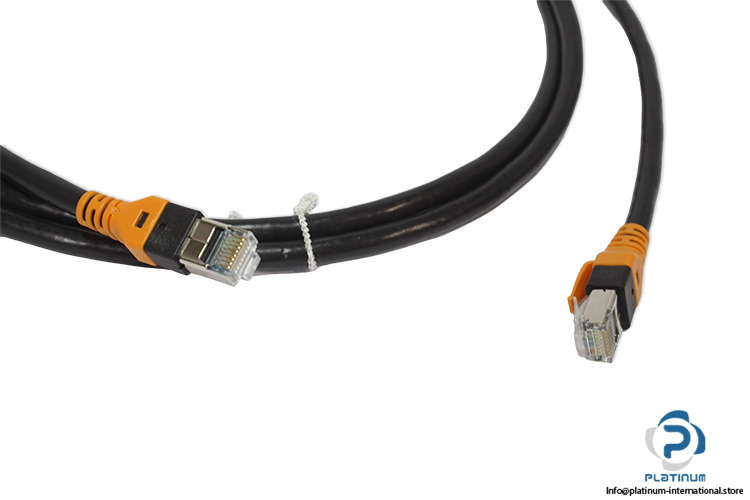

br-X20CA0E61.00200-connection-cable(new)-2

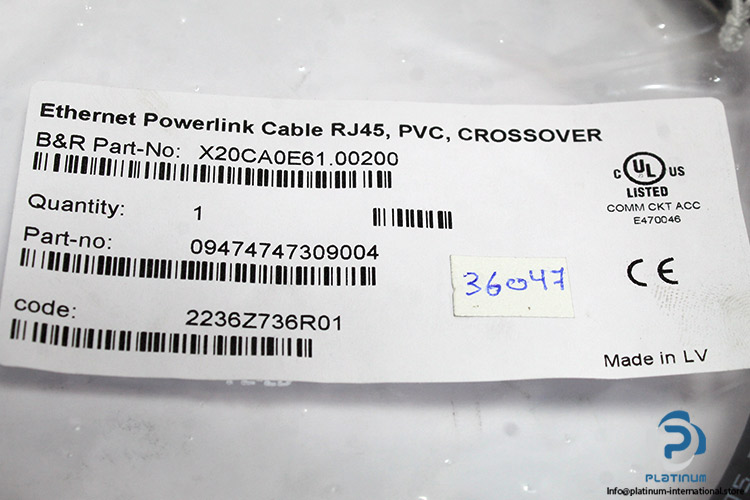

br-X20CA0E61.00200-connection-cable(new)-3

Neu

Auf Lager28 EinheitenVersandbereit

POWERLINK / Ethernet-Kabel B&R X20CA0E61.00200 industrielles POWERLINK/Ethernet-Kabel, 2 m Länge mit RJ45-Steckern, Cat 5e Class D, geschirmtes Design für Hochgeschwindigkeits-Datenübertragung.

Hersteller

B&R

SKU

1095580

Kategorie

Cable Connectors

Zustand

Neu

5E Automation B&R Cable CAT Communication Ethernet Industrial Network Powerlink RJ45 Shielded X20CA0E61.00200

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

B&R X20CA0E61.00200 POWERLINK/Ethernet Connection Cable

The B&R X20CA0E61.00200 is a high-performance POWERLINK/Ethernet connection cable designed for reliable industrial communication. Engineered for stable data transmission and robust mechanical protection, this cable supports high-speed network applications in demanding automation environments.

Manufacturer: B&R

Type: POWERLINK / Ethernet Connection Cable

Model: X20CA0E61.00200

Part No: 09474747309004

Code: 2236Z736R01

REV: C1

Cable Cross Section:

Cable Construction:

Wires:

Blue-white with blue, orange-white with orange, green-white with green, brown-white with brown

Electrical Properties:

Operating Conditions:

Ambient Conditions “ Temperature:

Mechanical Properties:

Cable Length	2 m
Connector 1	RJ45
Connector 2	RJ45
AWG	4x 2x 26 AWG
mm²	4x 2x 0.16 mm²
Inner Jacket	Halogen-free, flame-retardant
Outer Jacket Material	PVC
Outer Jacket Color	Black (RAL 9005)
Wire Insulation	Polyethylene (PE)
Wire Colors	Blue-white, blue, orange-white, orange, green-white, green, brown-white, brown
Shield	Overlapping aluminum-clad foil, tinned copper braiding, ‰¥85% coverage
Stranding	Pair stranding - 4 pairs
Operating Voltage	Max. 125 V
Test Voltage Wire - Wire	1000 V
Test Voltage Wire - Shield	1000 V
Conductor Resistance	‰¤145 Î©/km at 20°C
Transfer Properties	Category 5e / Class D up to 100 MHz per ISO/IEC 11801
Transfer Rate	10/100/1000 Mbit/s
Insulation Resistance	‰¥5 GÎ©/km at 20°C
Degree Of Protection Per EN 60529 “ Cables	IP65
Degree Of Protection Per EN 60529 “ RJ45 Connector	IP20, only when properly connected
Transport	-40 to 80°C
Fixed Installation	-40 to 80°C
Flexible Installation	-10 to 60°C
Diameter	6.7 mm ±0.2 mm
