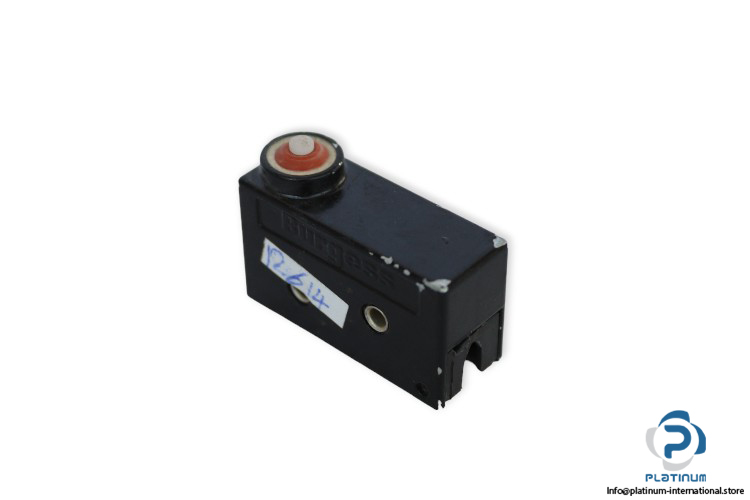

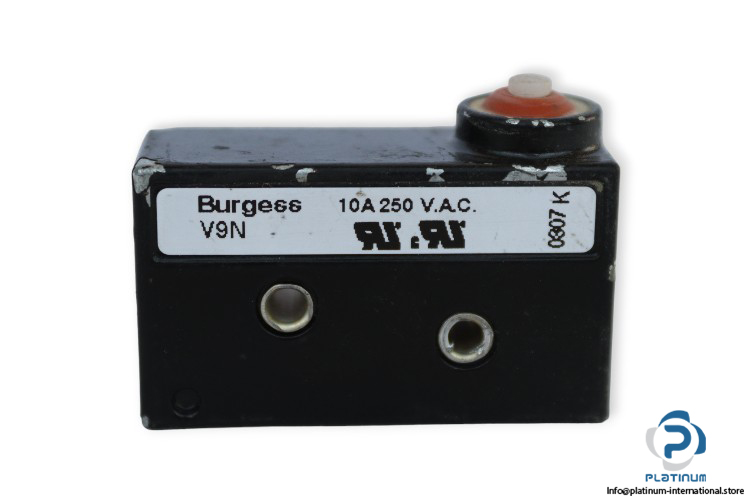

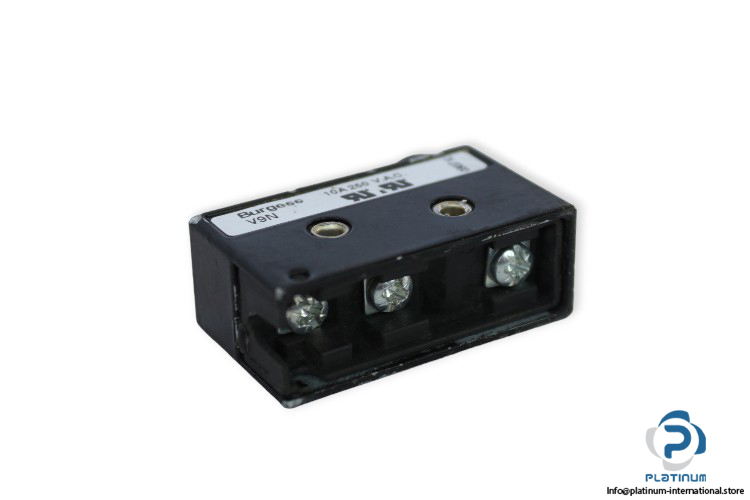

Burgess V9N Limit Switch
Manufacture: Burgess
Type: Limit switch
Model: V9N
Part No.: 0307 K
Actuator Type: plunger
Terminal: screw
Voltage rating: 250 V AC
Current rating: 10 A
Protection degree: IP67
Contact: 1 Change over contact
Contacts material: Ag
Actuating force: 5.5 Nm
Release force: 1 N
Free position (FP): 22.6 mm
Operating position (OP): 21.3 mm
Movement differential: 0.35 mm
Dimensions: 42 x 24.5 x 16 mm
