Busch RA 0040 F 503 Rotary Vane Vacum Pump
Gebraucht
Auf Lager4 EinheitenVersandbereit

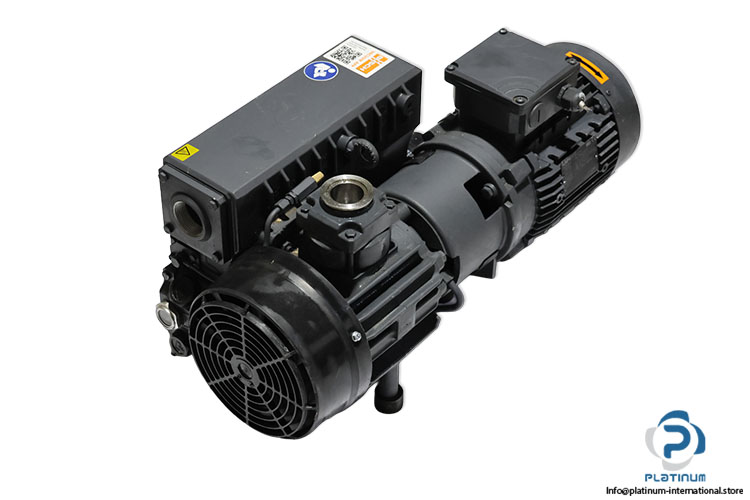

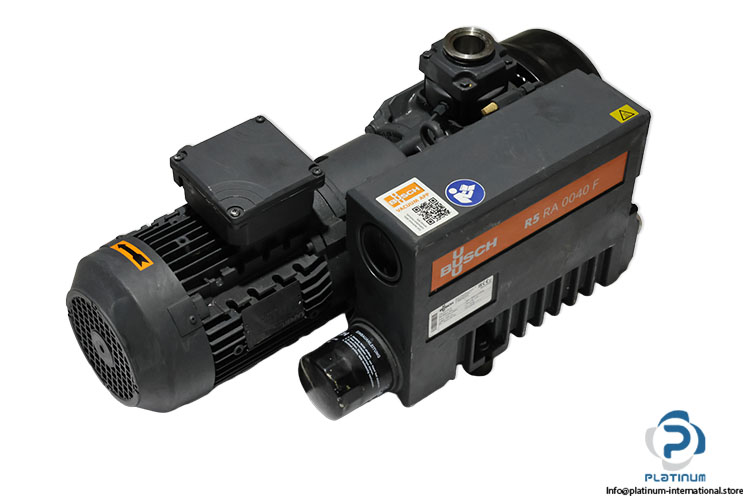

Rotary Vane Vacuum Pump BUSCH rotary vane vacuum pump with 40 m³/h pumping speed and 1.5 mbar ultimate pressure, equipped with a 1.1 kW LAFERT IE3 three-phase motor for reliable industrial vacuum applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

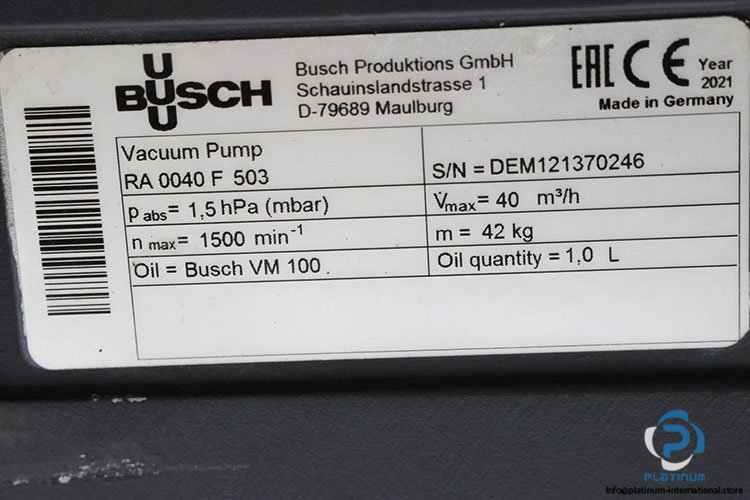

| S/N | DEM121370246 |

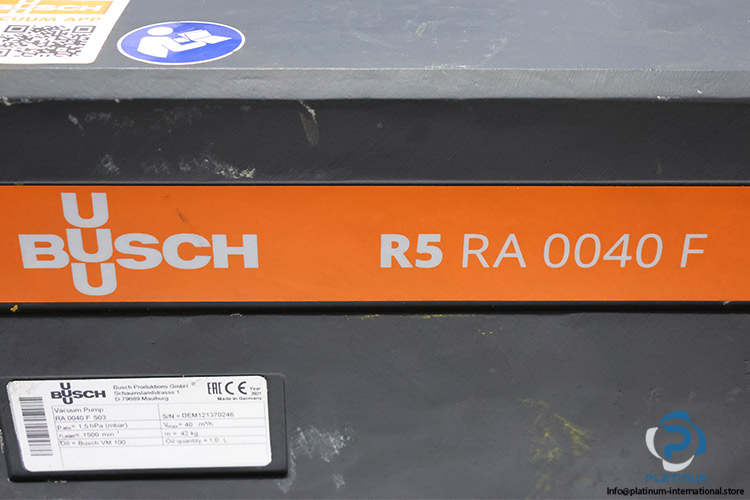

| Series | R5 |
| Ultimate Pressure | 1.5 hPa (mbar) |
| Nominal Pumping Speed | 40 m³/h |
| Maximum Speed | 1500 min?¹ |
| Oli | Busch VM 100 |
| Quantity [L] | 1.0 |

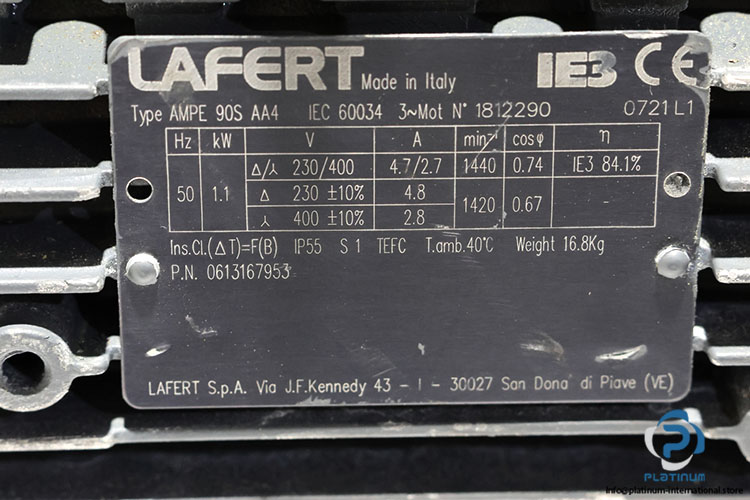

| Attachment | LAFERT AMPE 90S AA4 3 Phase E-Motor |
| P.N. | 0613167953 |
| Serial Number | 1812290 |
| Standards | IEC 60034, IE3 Efficiency Class (High Efficiency) |
| Connection Type | Delta/star |
| Voltage (V), Delta Connection | 230 V |
| Current (A), Delta Connection | 4.7 A — 4.8 A |
| Speed (min?¹ / RPM), Delta Connection | 1440 — 1420 |
| Power Factor (cos f), Delta Connection | 0.74 — 0.67 |
| Efficiency (?), Delta Connection | IE3 84.1% |
| Voltage (V), Star Connection | 400 V |
| Current (A), Star Connection | 2.7 A — 2.8 A |
| Speed (min?¹ / RPM), Star Connection | 1440 — 1420 |
| Power Factor (cos f), Star Connection | 0.74 — 0.67 |
| Efficiency (?), Star Connection | IE3 84.1% |
| Rated Power [kW] | 1.1 |
| Frequency [Hz] | 50 |
| Duty | S1 |
| Thermal Class | F(b) |
| Protection Class [IP] | 55 |
| Stock key | CON003 |
| Condition | Used |
