Bussmann 170M6149 Fuse-Link
Gebraucht
Auf Anfrage verfügbar
Fuse-Link
The Bussmann 170M6149 is a 1100A fuse-link with 1250V AC rating and 100kA breaking capacity, ideal for protecting semiconductors and DC power systems.1100A170M6149BodyBussmannConverterdcDriveFuseFuse-LinkHighIndustrialPowerProtectionsemiconductorSquarevoltage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

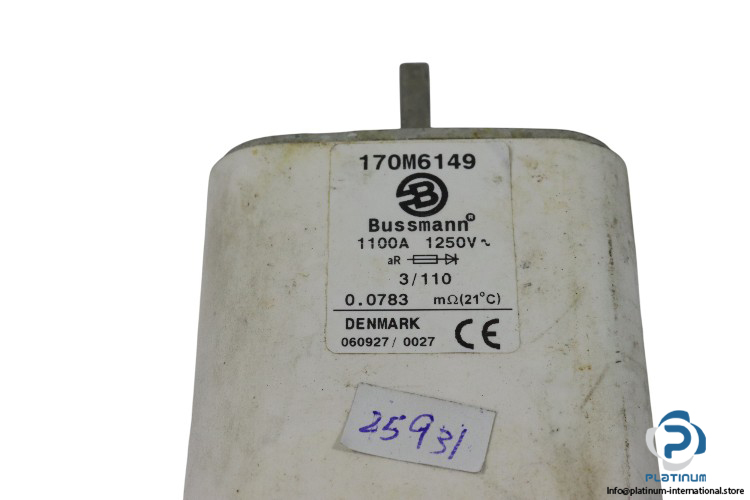

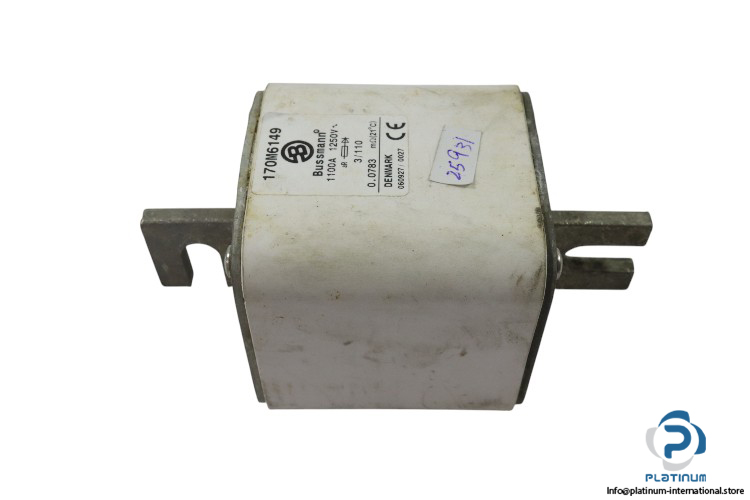

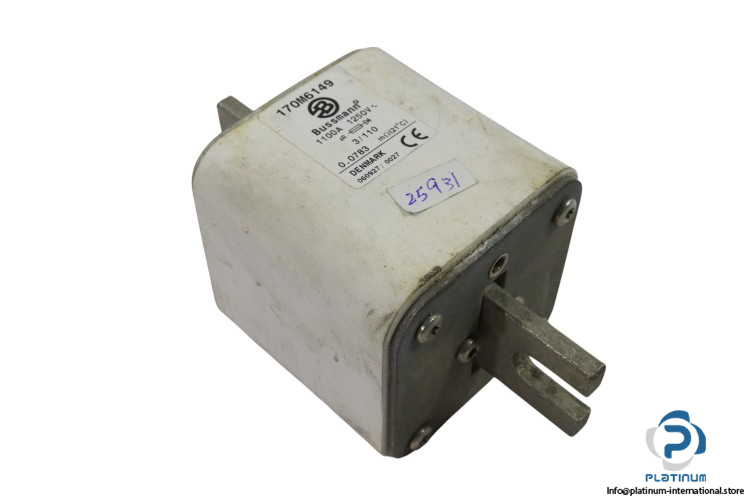

Bussmann 170M6149 Fuse-Link
The Bussmann 170M6149 is a high-performance fuse-link designed to protect sensitive power electronic devices such as semiconductors, DC drives, and rectifiers. With a high breaking capacity and a robust square body, it offers reliable circuit protection for demanding industrial applications.
Manufacturer: Bussmann
Type: Fuse-Link
Model: 170M6149
| Amperage Rating | 1100 A |
| Breaking Capacity | 100 kA |
| Fuse Indicator | Top fuse status indicator |
| Fuse Size | 3 |
| Rated Voltage | 1250V AC |
| Center-to-Center Distance of Connections | 108 mm |
| Mounting Dimension | M10 |
| Watt Losses | 140 W |
| Fuse Shape | Square body, slotted center bolted tags |
| Application | Semiconductor, DC common bus, DC drives, power converters/rectifiers |
