C.P.A 314.MEP.A 50 Press Safety Valve
Druck-Sicherheitsventil C.P.A 314MEP-A 50 mit 3/2-Funktion, Druckbereich von 2 bis 8 bar und einem elektropneumatisch intern gespeisten Pilotensystem. Für industrielle Automatisierung ausgelegt, gewährleistet es eine sichere und effiziente pneumatische Steuerung.

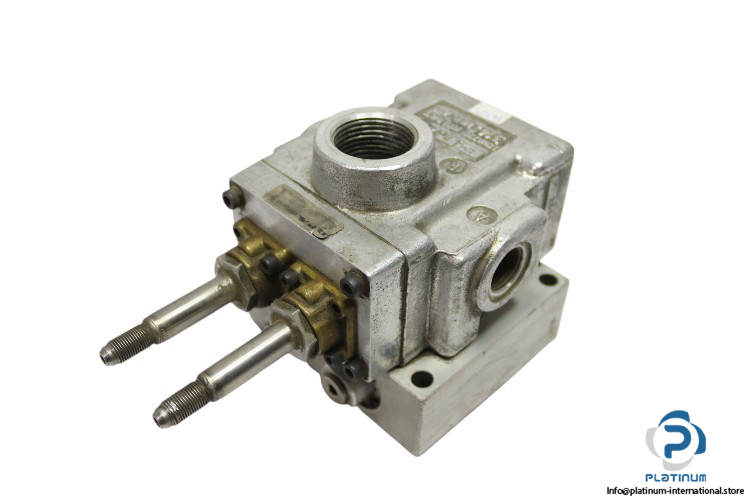

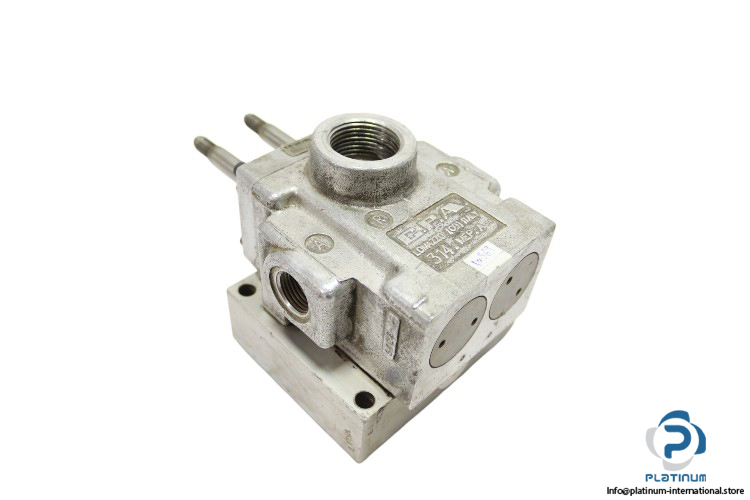

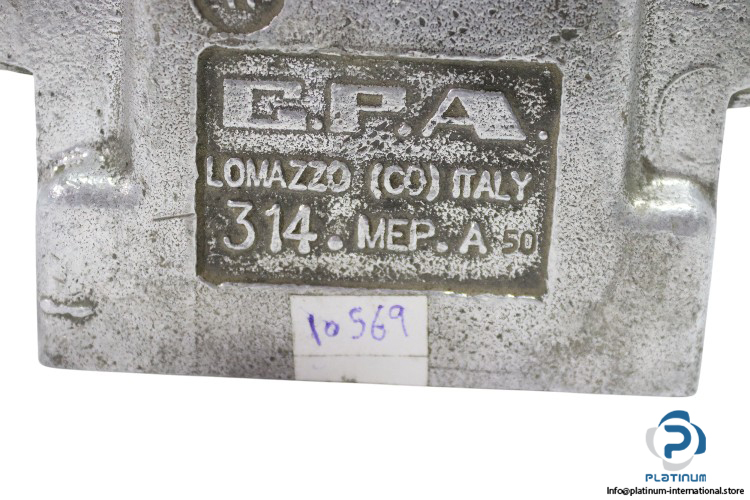

C.P.A 314MEP-A 50 Press Safety Valve
The C.P.A 314MEP-A 50 Press Safety Valve is designed for high-performance pneumatic systems, ensuring reliable pressure control and operational safety. With an electropneumatic internally fed pilot system and a robust aluminum body, this valve delivers durability and efficiency in industrial applications.
Manufacturer: C.P.A
Type: Press Safety Valve
Model: 314MEP-A 50
Designed for industrial automation and pneumatic safety applications, the C.P.A 314MEP-A 50 offers precise pressure regulation and reliable performance in demanding environments.
| Function | 3/2 |
| Size | 15 |
| Working Pressure | 2 to 8 bar |
| Power Consumption | 9 W (DC), Inrush 23 VA (AC) |
| Construction Type | Poppet |
| Pilot System | Electropneumatic Internally Fed |
| Fluid | Filtered and Lubricated Oil |
| Body Material | Aluminum |
| Temperature Range | -10 to 50°C |
| Connection | G1, G1/2 |
