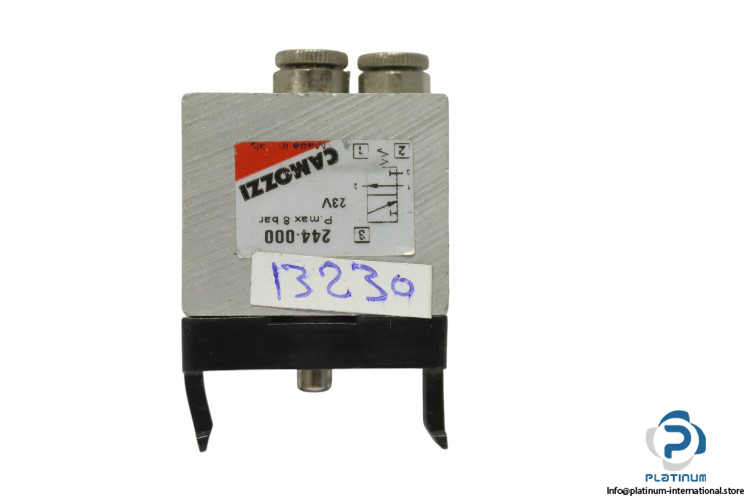

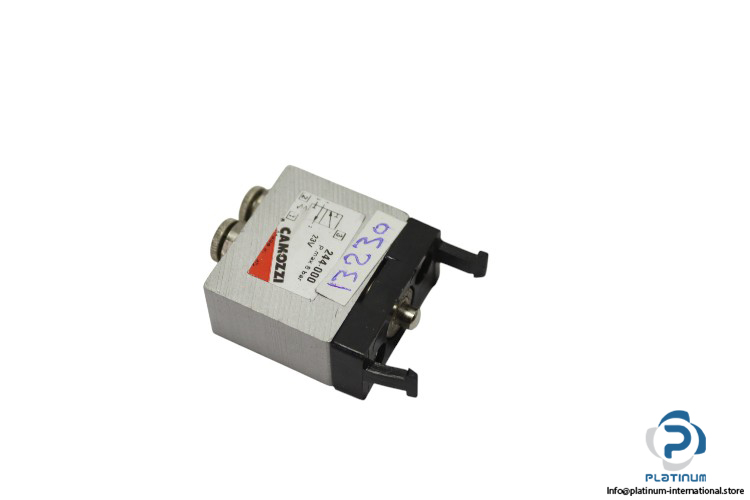

Camozzi 244-000 Manual Valve

Camozzi 244-000 Manual Valve

The Camozzi 244-000 Manual Valve from Series 2 offers efficient control with a 3/2-way NO configuration. Designed for reliable pneumatic applications, it operates within a pressure range of 2 to 8 bar and delivers a flow rate of 60 NL/min. This valve is built with an aluminium body and features flush mounting for compact installations.

Manufacturer: CAMOZZI

Type: Manual Valve

Series: 2

Model: 244-000

Technical Data:

• Function: 3/2-way NO
• Type of Actuation: Manually
• Operating Pressure: 2…8 bar
• Flow Rate: 60 NL/min
• Fluid: Air
• Temperature: 0…+50°C
• Body Material: Aluminium
• Connection Type: 4mm cartridge push-in pneumatic port
• Mounting Mode: Flush mounting
