Camozzi CST-220 Magnetic Proximity Switch
Neu
Auf Lager1 EinheitVersandbereit
Magnetischer Näherungsschalter CAMOZZI CST-220 magnetischer Näherungsschalter mit Reed-Betrieb, T-Nut-Montage, IP67-Schutz und 10“110 V DC/AC Betriebsspannung für Industrieautomatisierungsanwendungen.
220AutomationCamozziConnectorcStCylinderIndustrialIP67M8MagneticPneumaticProximityReedSensorSlotSwitchT
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

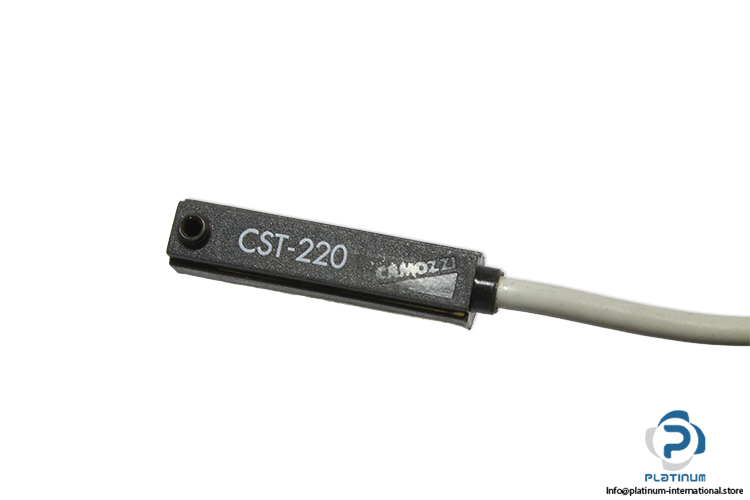

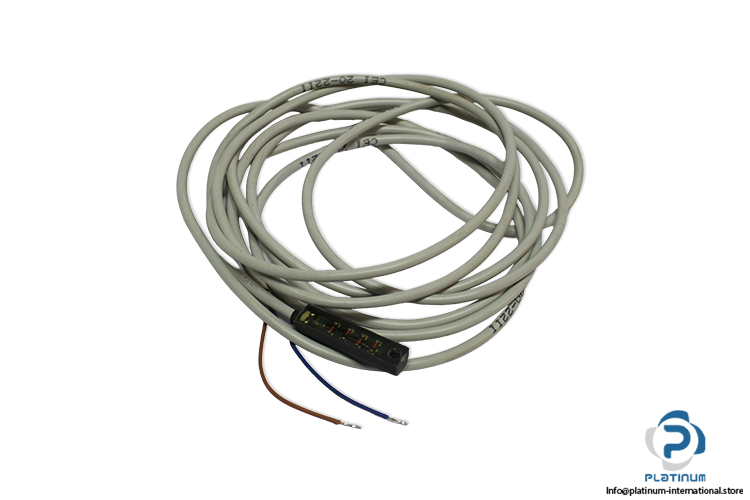

CAMOZZI CST-220 Magnetic Proximity Switch
The CAMOZZI CST-220 is a magnetic proximity switch from Series CST, designed for reliable position detection in pneumatic cylinders and automation systems. It features reed operation, T-slot mounting compatibility, and LED signalling for clear status indication.
Manufacturer: CAMOZZI
Type: Magnetic Proximity Switch
Model: CST-220

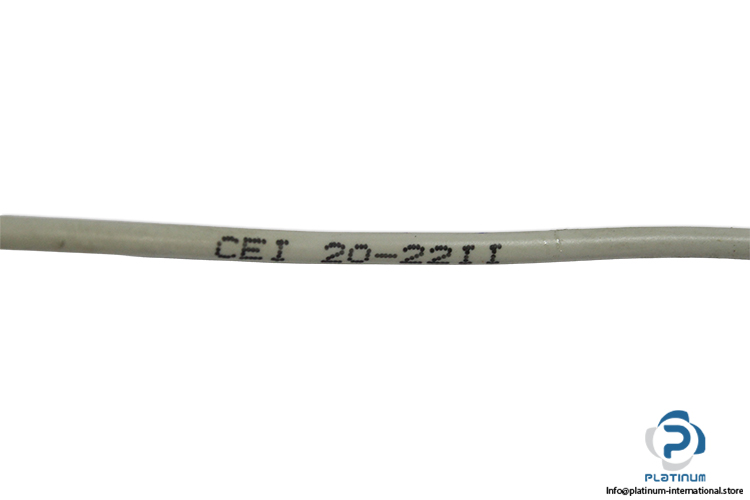

Code: CEI 20-22II
Series: CST
Max Load:
| Operating Voltage | 10“110 V DC/AC |
| Max. Current | 250 mA |
| Output | Static Or Electronic PNP |
| Type Of Contact | Normally Open (All Switches) |
| Reed Contact | 8 W DC And 10 VA AC |
| Hall Effect And Magnet-Resistive | 6 W DC |
| Protection Level | IP 67 |
| Materials | Plastic Body Encapsulating Epoxy Resin, PVC Cable, PVC Connector Body, PUR |
| Mounting | Directly Into The Groove Or By Means Of Adapters |
| Signalling | Yellow Diode LED |
| Operation | Reed |
| Connections | 2 Wires (Reed Only) |
| Connector | Male Connector M8 |
| Operating Temperature | -10 To 80 ºC |
