Camozzi MC104-D00 Filter-Regulator
Gebraucht
Auf Lager1 EinheitVersandbereit
Filter Regulator
A compact modular filter regulator and lubricator unit designed for pneumatic systems, providing efficient air filtration, precise pressure regulation, and controlled lubrication for industrial automation applications.AirCamozziCompressedfilterIndustrialLubricatorMCMC104-D00MC104-L00PneumaticPneumaticsPreparationregulatorSeriesTreatmentUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

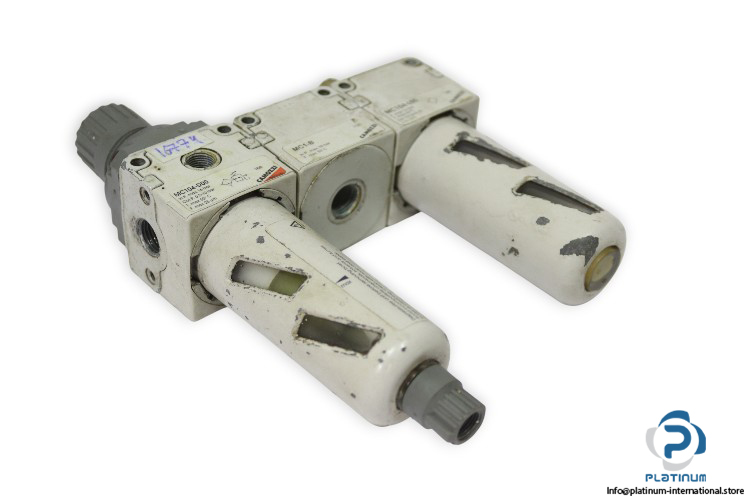

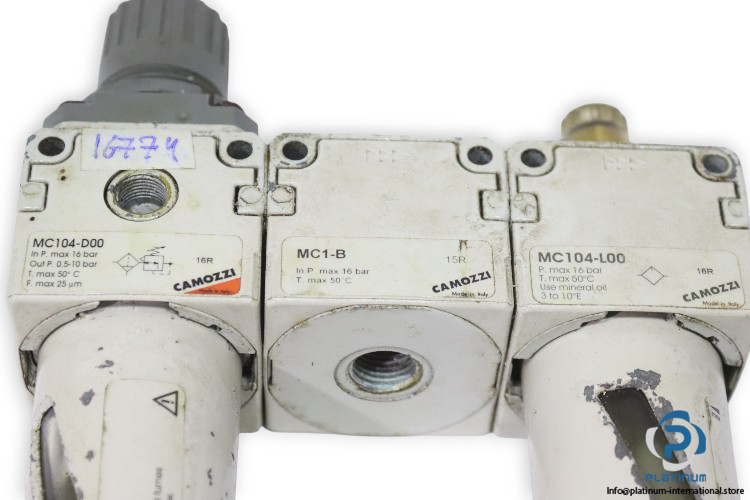

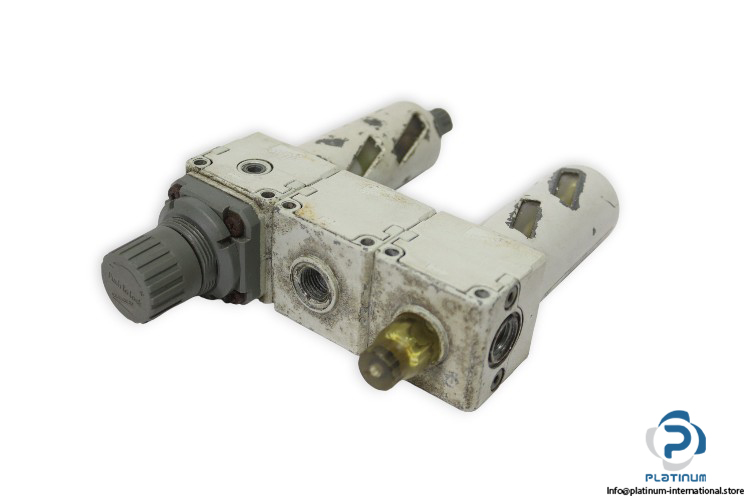

Camozzi MC104-D00 Filter Regulator with MC104-L00 Lubricator
A compact and modular air preparation unit designed to ensure clean, regulated, and lubricated compressed air for pneumatic systems. This assembly combines a high-efficiency filter regulator with an integrated lubricator, offering reliable pressure control, effective filtration, and consistent lubrication in industrial automation applications. Manufacturer: Camozzi
Type: Filter-Regulator with Lubricator
Series: MC
Filter Regulator Model: MC104-D00
Lubricator Model: MC104-L00
| Connection Size | G1/4 |
| Filtering Element | 25 µm |
| Condensate Drain | Manual, Semi-automatic, Self-relieving |
| Output Pressure Range | 0.5 to 10 bar |
| Maximum Input Pressure | 16 bar |
| Condensate Capacity | 28 cm³ |
| Oil Capacity | 37 cm³ |
| Lubrication Type | Atomized Oil |
| Construction | Compact Modular Design |
| Filtering Element Material | HDPE |
| Materials | Zama, NBR, Technopolymer |
| Mounting | Vertical In-line or Wall Mounting |
| Operating Temperature | -5°C to 50°C at 10 bar |
| Attached Components | MC1-B Take-Off Block, MC104-L00 Lubricator |
