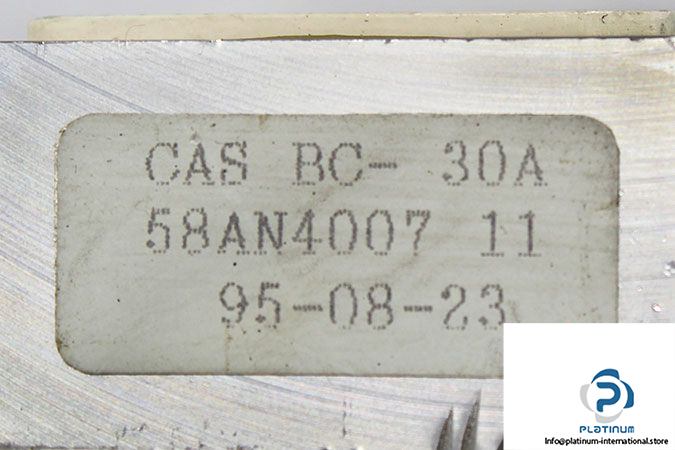

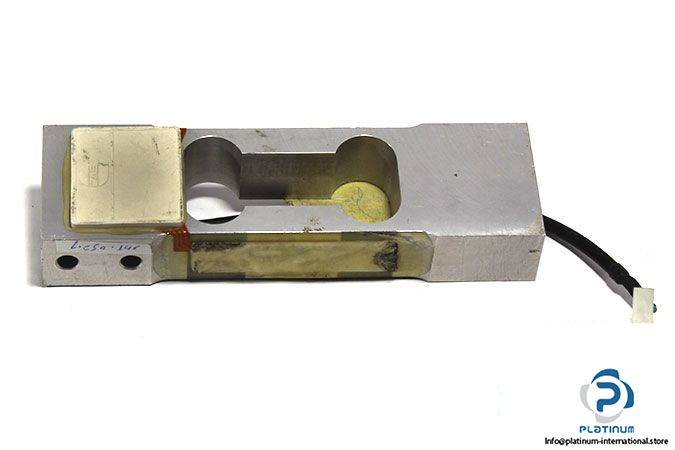

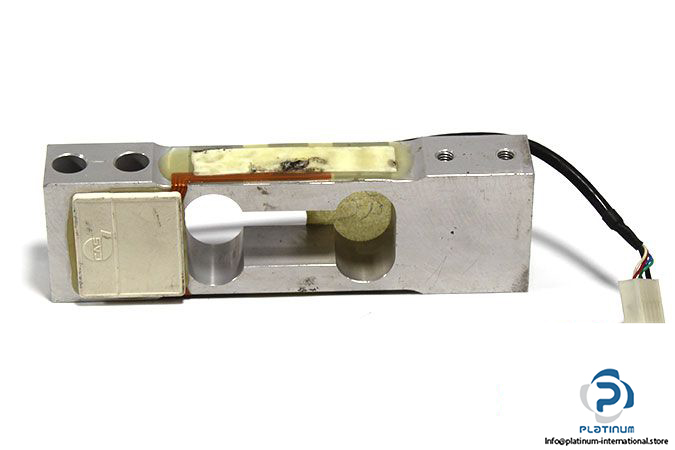

CAS BC-30A MAX 30 KG Single Point Load Cell
Manufacturer: CAS
Type: Single Point Load Cell
Model: BC-30A
FEATURES
- Low Cost
- Off Center Compensated
- Protection Class IP65
Maximum weight limit (E max): 30 kg
Rated Output: 1.2 mV/V
Excitation Voltage: 10 V
Max. Excitation Voltage: 15 V
Input Resistance: 420 ± 20 Ω
Output Resistance: 350 ± 3.5 Ω
Operating Temperature: -20…70 °C
Element Material: Anodized Aluminum
Protection Class: IP65
Weight: 0.340 kg
