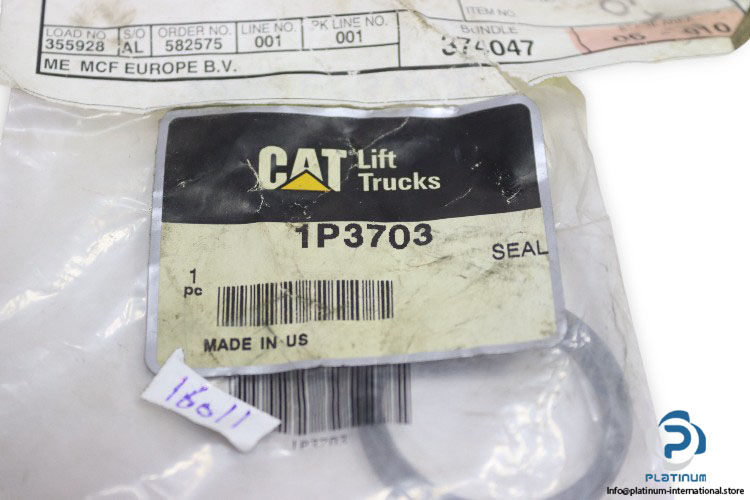

CAT 1P3703 Seal
Neu
Auf Lager2 EinheitenVersandbereit
19,99$
Mechanical Seal
The Caterpillar 1P-3703 Seal is a durable nitrile rubber sealing element designed for hydraulic systems, transmissions, and lift mast applications. It prevents leakage, protects against contaminants, and ensures pressure stability under demanding conditions.1P-3703CATCaterpillarComponentsCylinderFluidHydraulicIndustrialLiftMastMechanicalNitrilepartsRingRubberSealSealingSystemTransmission
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

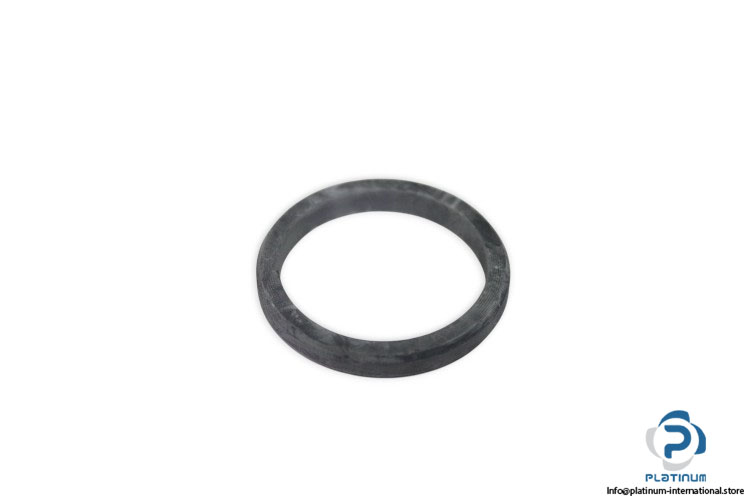

Caterpillar 1P-3703 Mechanical Seal
The Caterpillar (CAT) 1P-3703 is a high-performance mechanical seal designed for demanding hydraulic and mechanical applications. Built from durable nitrile rubber (NBR), this seal provides long-lasting protection against fluid leakage and contamination, ensuring optimal performance in industrial and heavy-duty equipment.
Manufacturer: Caterpillar (CAT)
Type: Seal (Mechanical Seal / Ring Seal)
Part No.: 1P-3703
| Function | Acts as a sealing element in hydraulic or mechanical assemblies; prevents fluid leakage and ingress of dust or contaminants; maintains pressure integrity in hydraulic circuits or rotating shafts |
| Material | Nitrile Rubber (NBR) |
| Typical Use | Cylinder sealing, transmission housing seal, lift mast hydraulic systems |
| Operating Conditions | Compatible with hydraulic oil, grease, or transmission fluid |
| Pressure Range | 10 to 20 bar |
| Temperature | -20 °C to +120 °C |
| Outer Diameter | 39 mm |
| Inner Diameter | 31 mm |
| Thickness | 4 mm |
