Cbvac GDQ-J40B Pneumatic High-Vacuum Angle Damper Valve
Neu
Auf Lager1 EinheitVersandbereit

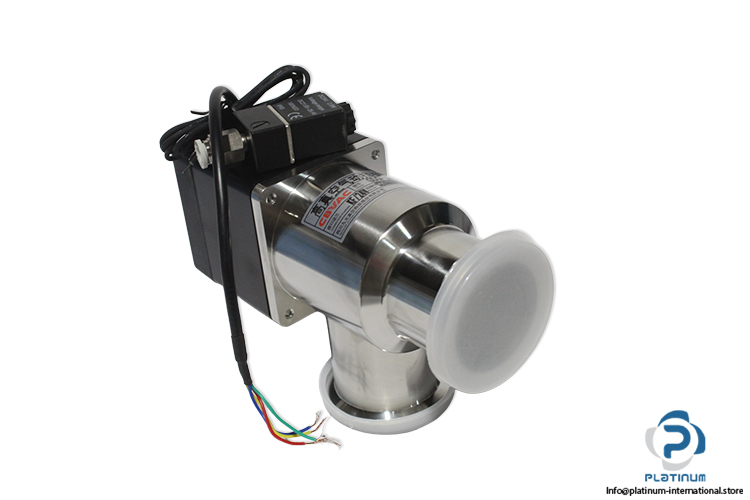

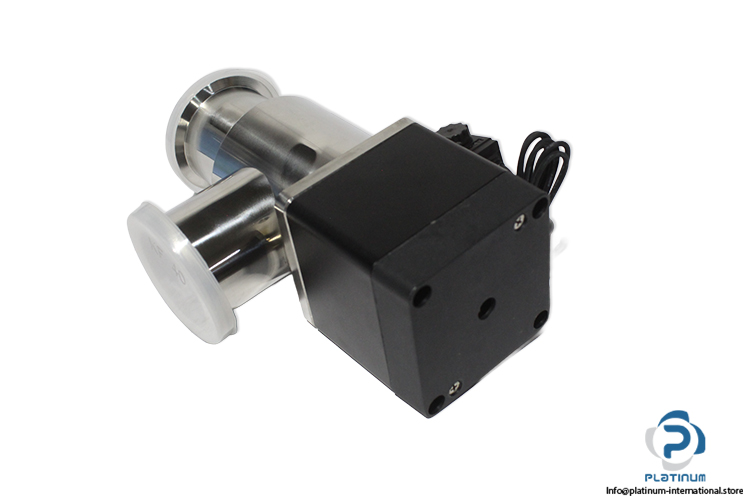

High-Vacuum Angle Damper Valve The CBVAC GDQ-J40B is a DN40 pneumatic high-vacuum angle damper valve with stainless steel construction, KF40 flange and normally closed operation.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Ser. No. | C2263A201124400 |
| Medium | Compressed Air |
| Function | 2/2 Way Normally Closed |
| Actuation Type | Pneumatically |
| Pressure Range | 1 x 10?5 … 1.2 x 105 Pa |
| Material | Stainless Steel |

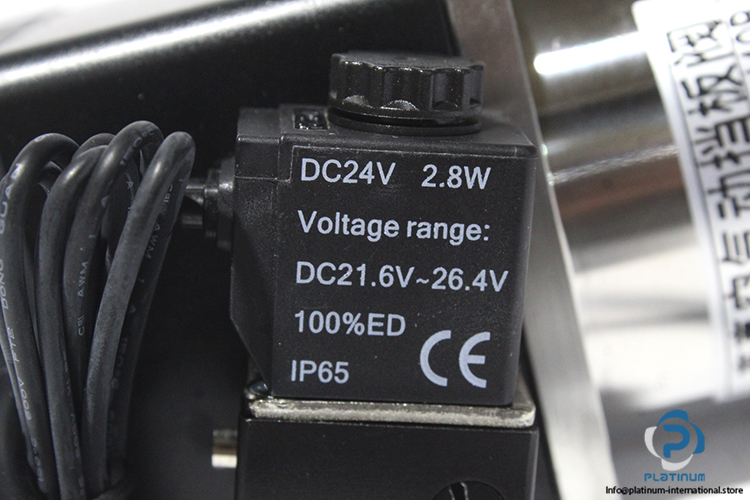

| Coil Ratings | 24 V DC, 2.8 W, IP65 |
| Nominal Diameter (DN) | 40 mm |
| Flange Type | KF40 |
| Port Size | 55 mm |
| Ambient Temperature | 0 ... 50 °C |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1104381 |
| Weight | 1,50 |
