Celesco PT8420-0060-111-1113 Cable Actuated Sensor
Gebraucht
Auf Anfrage verfügbar
585,00$
Kabelbetriebener Sensor Celesco PT8420-0060-111-1113 liefert eine hochauflösende lineare Rückmeldung mit 4“20 mA Ausgang und IP67 Schutz, entwickelt für raue industrielle Anwendungen über eine Reichweite von 1524 mm.
4-20ActuatedCableCelescoDeviceDisplacementFeedbackHighIndustrialIP67LinearmAOutputPositionPT8420-0060-111-1113ResolutionSensor
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

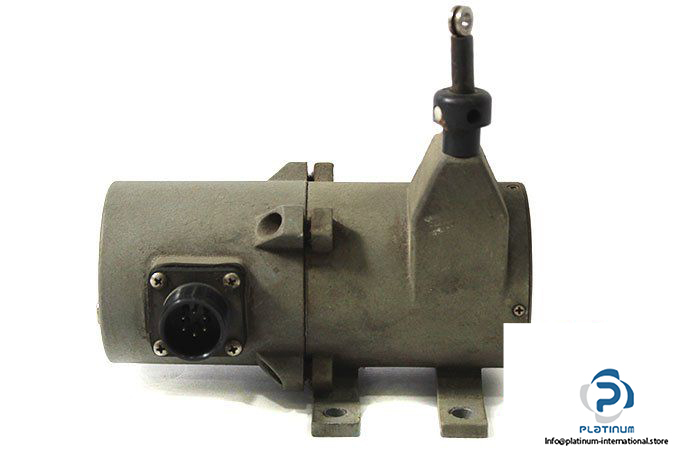

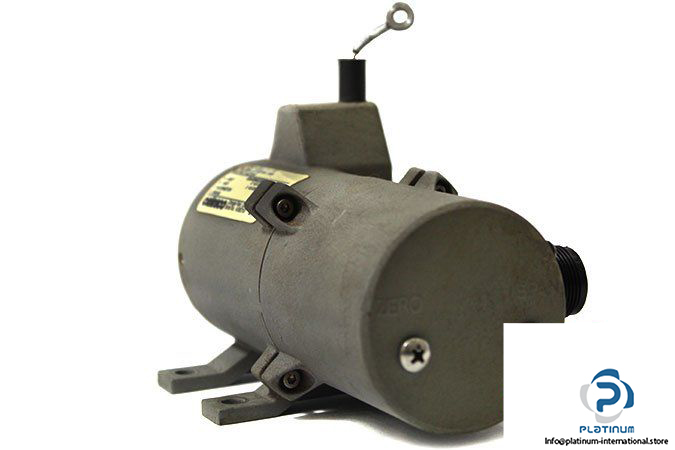

CELESCO PT8420-0060-111-1113 CABLE ACTUATED SENSOR
This high-precision cable actuated sensor by Celesco is designed to deliver reliable linear position feedback in demanding industrial environments. With a robust construction and IP67 protection, it ensures accurate and repeatable measurements across wide temperature ranges.
Manufacturer: CELESCO
Type: CABLE ACTUATED SENSOR
Model: PT8420-0060-111-1113
S No: A1100342
| Resolution | Essentially Infinite |
| Input Voltage | 8 / 34 V DC |
| Repeatability | ± 0.05% Full Stroke |

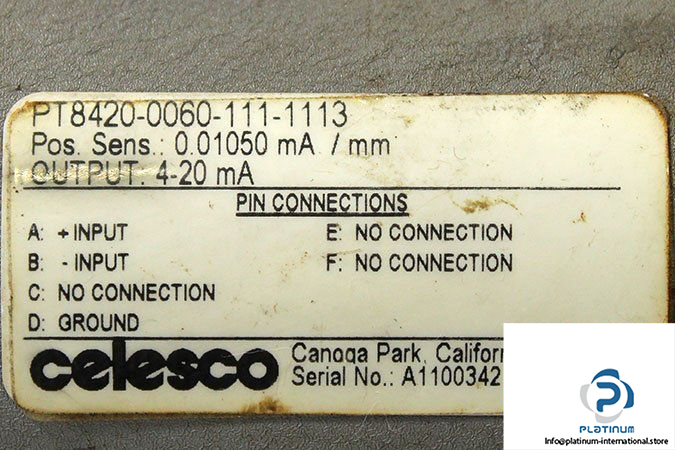

| Position Sensor | 0.0105 mA/mm |
| Output Current | 4“20 mA |
| Full Stroke, min | 1524 mm / 60 in. |
| Electrical Connection | 6-Pin Plastic Connector |
| Measuring Cable | Ø.034-inch nylon-coated stainless steel rope |
| Cable Guide Options | Integral Cable Brush |
| Protection Proof | IP67 |
| Temperature | -40 / 90 °C |
