General Electric 115 PC002 Pressure Switch

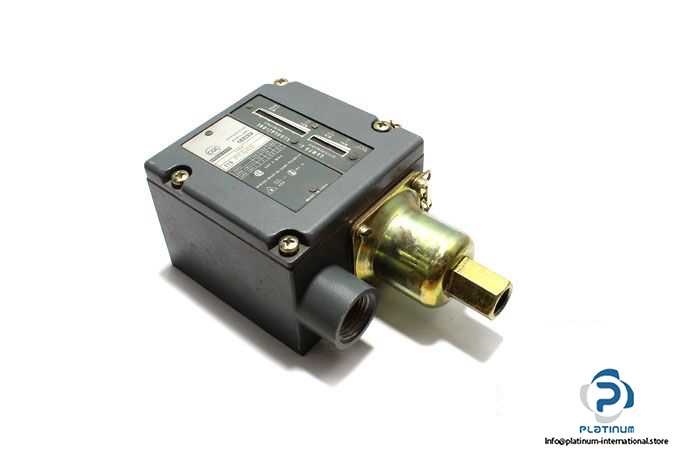

Cema General Electric (CGE) 115PC002 Pressure Switch

The Cema General Electric (CGE) 115PC002 Pressure Switch is designed for industrial applications that require reliable and accurate pressure monitoring. With a pressure measuring range of 22 / 0.28 psi and a differential pressure range of 15 / 3 psi, this switch is engineered to deliver precise performance in demanding environments.

• Manufacturer: Cema General Electric (CGE)
• Type: Pressure Switch
• Model: 115PC002
• Family: CEMA

🔧 Technical Specifications:

• Pressure Measuring Range: 22 / 0.28 psi
• Differential Pressure Range: 15 / 3 psi
• Connection: G ¼ , Threaded
• Electrical Connection: 19 mm Cable entry
• Thermal Current (Ith): 10 A
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Supply Voltage: 125, 250, 600 V AC/DC
• Current Ratings:
  • AC: 15A@125V, 10A@250V, 5A@600V
  • DC: 2A@125V, 0.5A@250V, 0.1A@600V

This pressure switch offers exceptional durability and can withstand high-voltage environments, making it suitable for various industrial applications. Whether used in fluid or gas systems, the Cema 115PC002 ensures reliable performance in controlling and monitoring pressure levels.
