General Electric 115 PC2015FS Pressure Switch

General Electric 115PC2015FS Pressure Switch

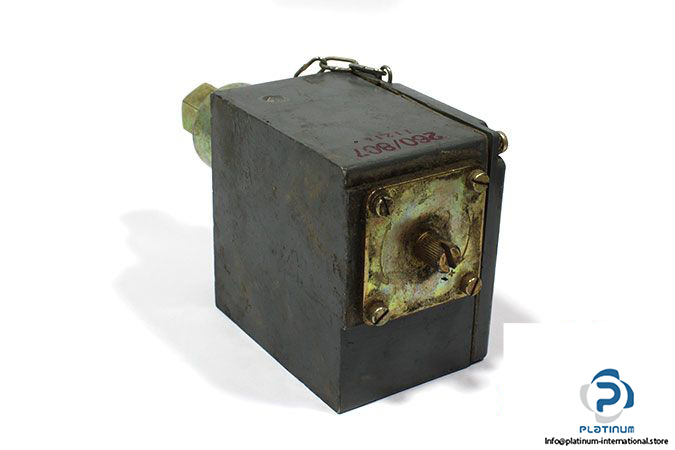

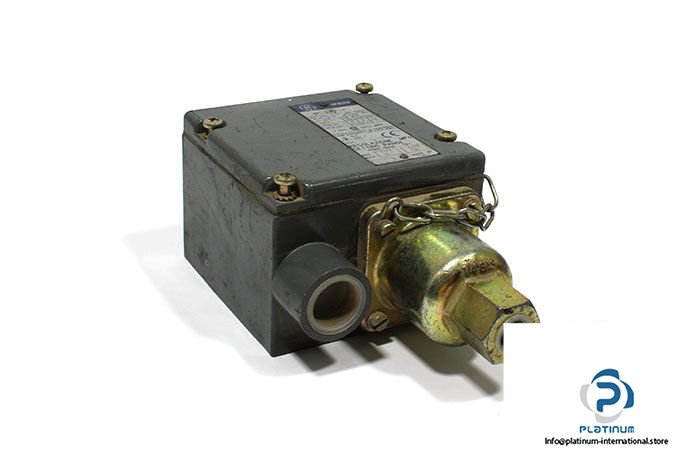

The General Electric 115PC2015FS Pressure Switch is a highly reliable device engineered for precise pressure measurement and control in industrial systems. With a robust design and adherence to stringent standards, this pressure switch ensures consistent performance in demanding environments.

🔧 Technical Specifications:

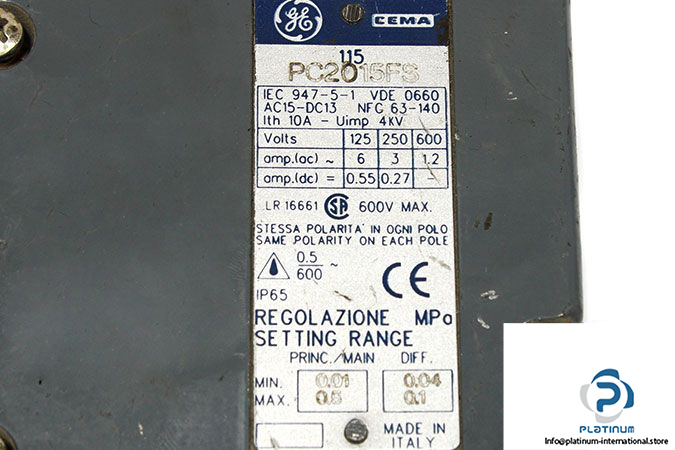

• Manufacturer: General Electric
• Type: Pressure Switch
• Model: 115PC2015FS
• Family: CEMA

📏 Pressure Ranges:

• Pressure Measuring Range: 0.01 / 0.5 MPa
• Differential Pressure Range: 0.04 / 0.1 MPa

🔗 Connections:

• Process Connection: G ¼, Threaded
• Electrical Connection: Cable Entry

š¡ Electrical Specifications:

• Thermal Current (Ith): 10 A
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Supply Voltage: 125V, 250V, 600 VAC/DC
• Current Ratings:
• AC: 6 A @ 125 V, 3 A @ 250 V, 1.2 A @ 600 V
• DC: 0.55 A @ 125 V, 0.27 A @ 250 V

🌟 Protection and Standards:

• Protection Degree: IP65
• Standards: IEC 947-5-1, VDE 0660

Designed for reliability and versatility, the General Electric 115PC2015FS is ideal for applications requiring precise pressure management with high durability and compliance with international standards.
