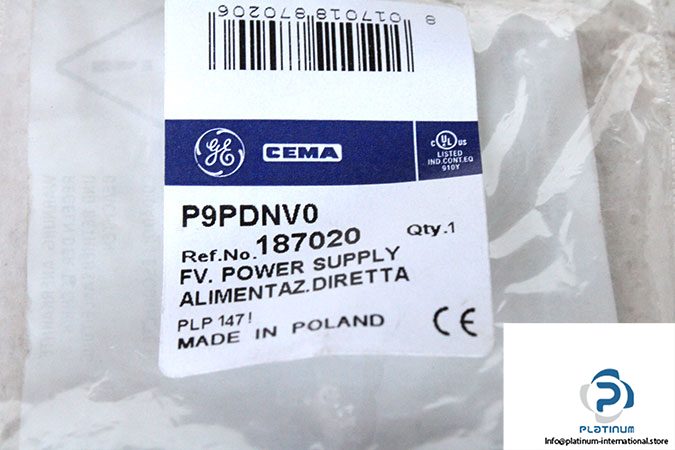

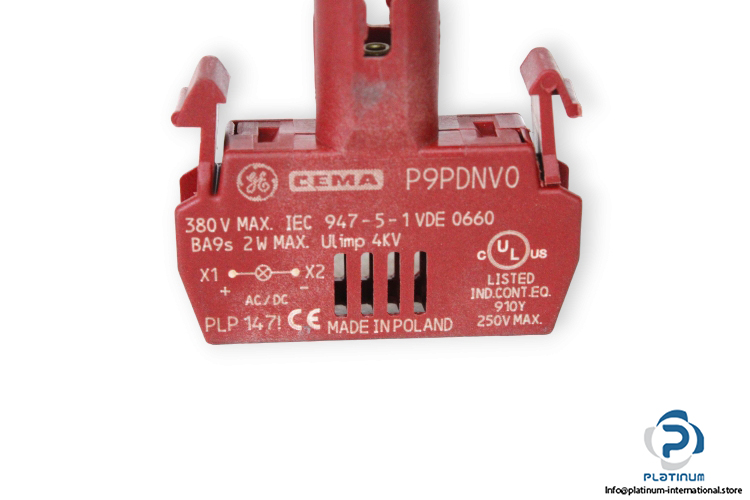

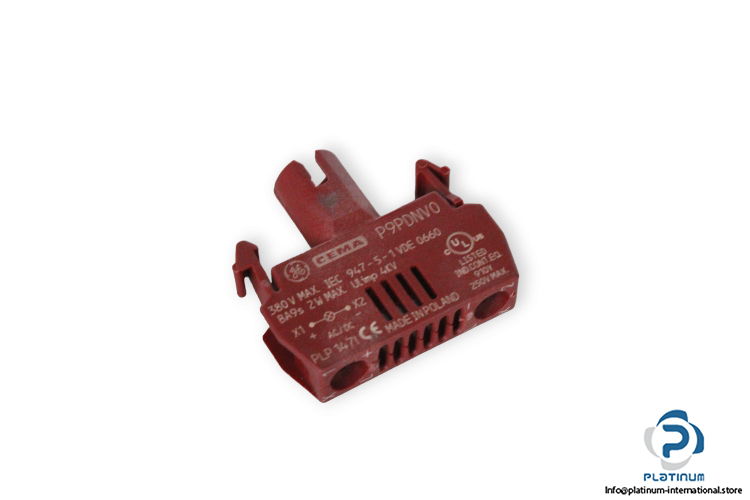

General Electric P9PDNV0 Lamp Block

General Electric P9PDNV0 Lamp Block Power Supply

The General Electric P9PDNV0 Lamp Block Power Supply is designed for reliable operation in demanding industrial environments. With a power rating of 2 W and a maximum operational voltage of 380 V, it delivers efficient energy conversion for lighting systems. This compact and durable power supply unit is ideal for use in a wide range of applications, ensuring stable performance in extreme temperatures from -30°C to 70°C.

🔧 Technical Specifications:

• Manufacturer: General Electric
• Type: Lamp Block Power Supply
• Model: P9PDNV0
• Part No.: 187020
• Rated Operational Voltage: Max. 380 V
• Rated Frequency: 50/60 Hz
• Power: 2 W
• Impulse Withstand Voltage (Uimp): 4 kV
• Ambient Air Operation Temperature: -30 / 70 °C
• Degree of Protection: Terminals IP20
• Connection Type: Screw Clamp
• Terminal Type: Screw Terminals
• Tightening Torque: 0.9 N·m
• Wire Stripping Length: 8 mm
• Connecting Capacity: 1x 18 / 14 AWG
• Dimensions: 9.5 x 36.3 x 39.5 mm

Perfect for a variety of industrial and commercial lighting applications, this power supply is built for reliability, safety, and easy integration with screw terminal connections. It offers robust protection against electrical surges, thanks to its 4 kV impulse withstand voltage, and operates efficiently across a wide temperature range.
