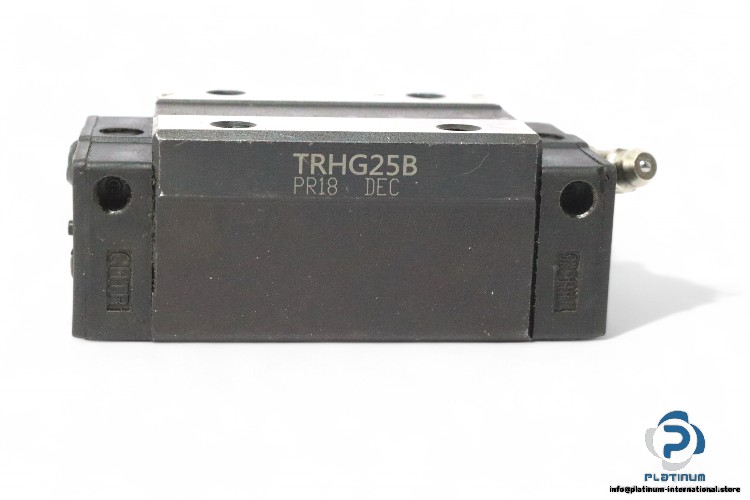

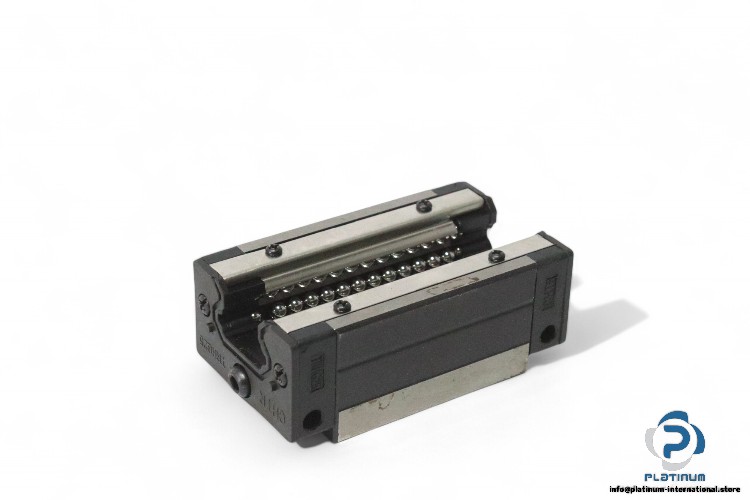

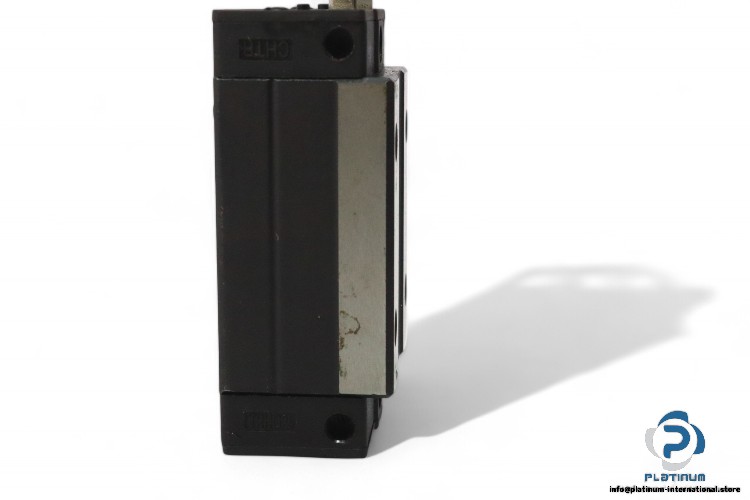

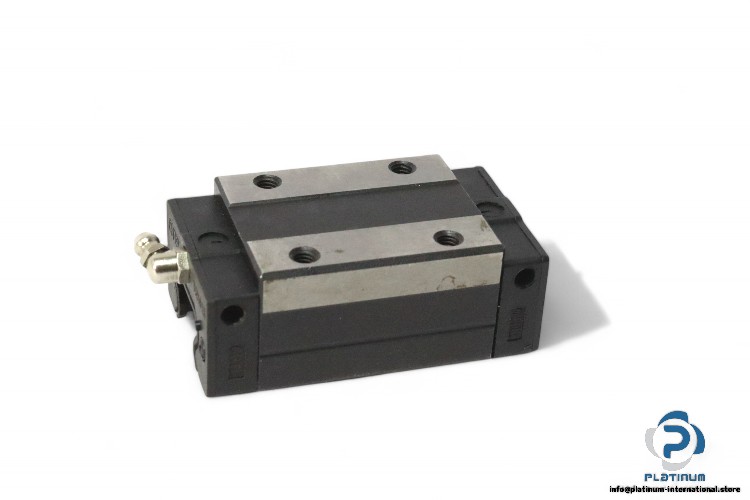

Chtr TRHG25B Linear Bearing Block

Manufacturer: CHTR
Type: LINEAR BEARING BLOCK
Model: TRHG 25B

Size: 25 mm

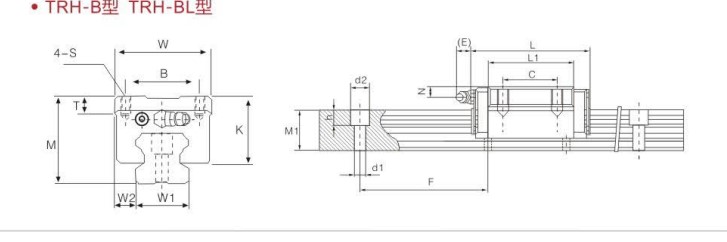

Dimensions
Total Height H: 40 mm
Block Height H-H1: 34.5 mm
Width W: 48 mm
Block Length L: 83.5 mm
B: 35 mm
C: 35 mm
L₁: 59.5 mm
Basic dynamic load rating: 19.9 kN
Basic static load rating: 34.4 KN
Tightening bolt of rail: M6X8
Block Type: B, Roller type without Flange Threaded
Mounting Hole: 4 Tapped holes
