Comat C4-A40 D 24 VDC Power Relay
Neu
Auf Lager14 EinheitenVersandbereit
Power Relay
The Comat C4-A40 D power relay features a 24 V DC coil voltage, 4 changeover contacts, and high current rating. With reliable AgNi contacts and a wide operating temperature range, this relay is ideal for industrial applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

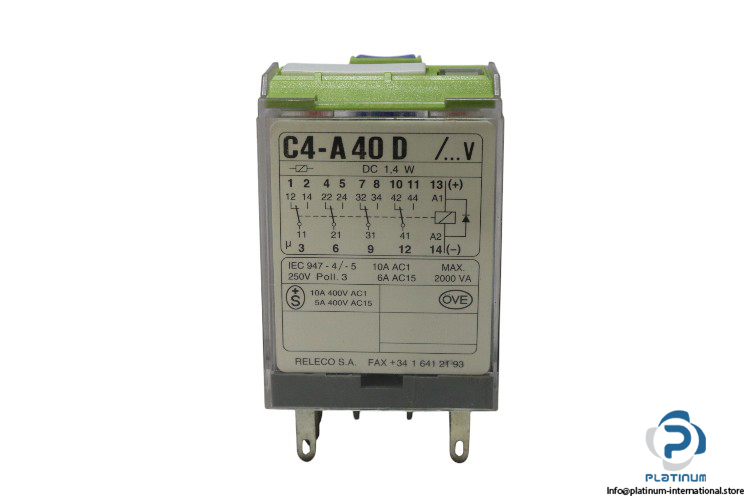

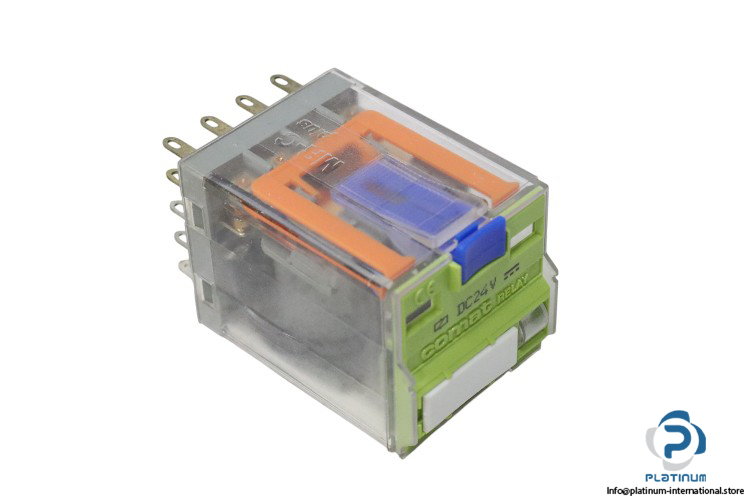

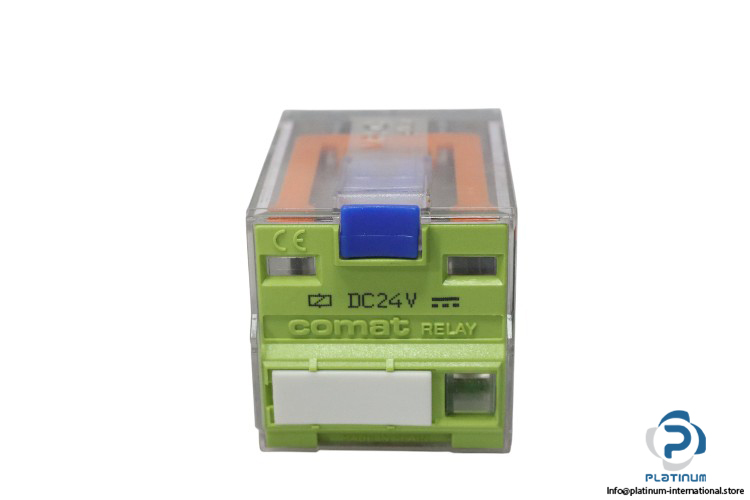

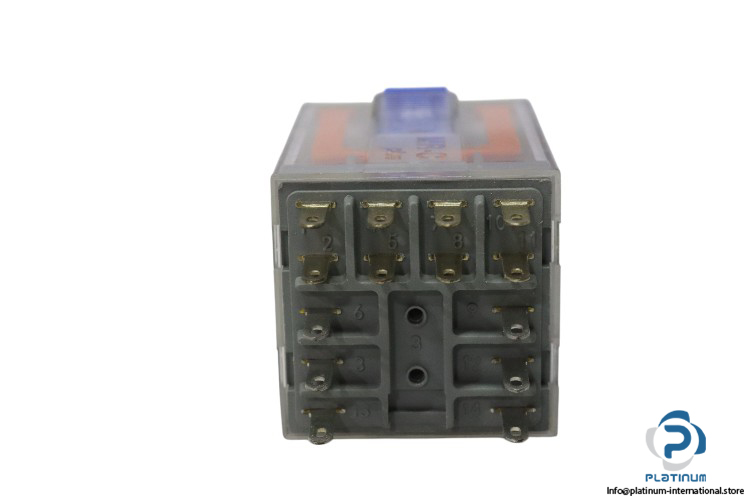

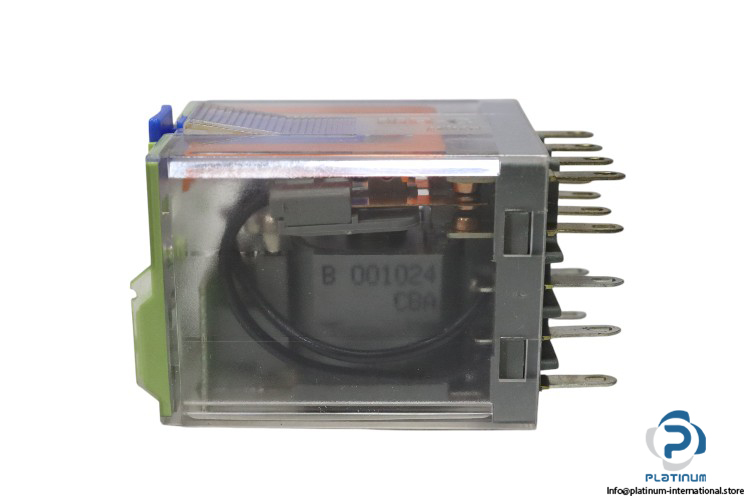

Comat C4-A40 D “ Power Relay
The Comat C4-A40 D power relay is designed for high-performance electrical switching in industrial and commercial applications. With a coil voltage of 24 V DC and a contact configuration of 4 changeover contacts, this relay ensures reliable operation under varying electrical conditions.
Manufacturer: Comat
Type: Power Relay
Model: C4-A40 D/ / V
MNR: C4-A40D/DC 24V
Ref. No.: B 001024 CBA
| Coil Voltage | 24 V DC |
| Power Consumption | 1.4 W |
| Coil Resistance | 65 (103 mA) ohm, 414 (58 mA) ohm |
| Contact Configuration | 4 Changeover contact |
| No. of Poles | 4 |
| Current Rating | 10A (AC1), 6A (AC15) |
| Maximum Rated Voltage | 250 V AC |
| Maximum Rated Power | 2000 VA |
| Standard | IEC 947-4/-5 |
| Contact Materials | AgNi |
| Ambient Operating Temperature | -40 to 60°C |
| Dimensions | 35 X 52.5 X 35 mm |
