Control Technique HMFU132S184DE Motor
Neu
Auf Lager1 EinheitVersandbereit
2 350,00$
ELEKTRISCHER MOTOR TECHNIQUE HMFU132S liefert 18 kW Leistung mit hochpräzisem Drehmoment und zuverlässiger Leistung. Ausgestattet mit Encoder und Lüfter für den Dauerbetrieb in industriellen Umgebungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
CONTROL TECHNIQUE HMFU132S ELECTRIC MOTOR
The CONTROL TECHNIQUE HMFU132S electric motor is engineered for industrial reliability and performance. With an 18 kW power rating and advanced encoder system, it™s ideal for high-demand, precision-driven environments. Compliant with IEC standards and built for continuous operation, this motor offers robust efficiency and durability.

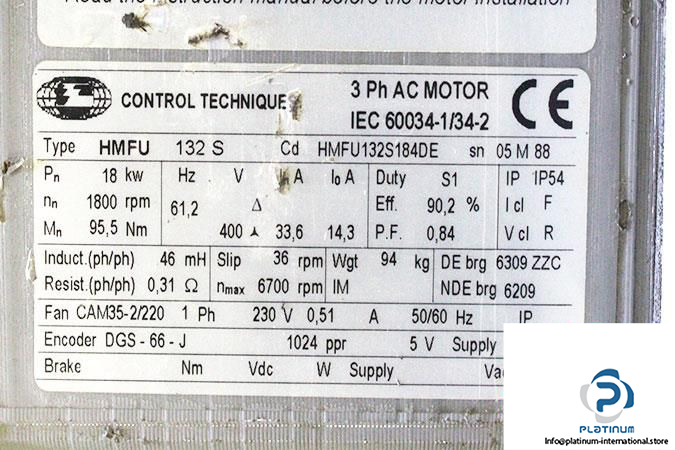

Manufacturer: CONTROL TECHNIQUE
Type: Electric Motor
Family: HMFU
Model: HMFU 132 S
MRN: HMFU132S184DE
S No.: 05 M 88
| Voltage | 400 V |
| Frequency | 61.2 Hz |
| Power | 18 kW |
| Rated Torque | 95.5 Nm |
| Speed | 1800 rpm (max. 6700 rpm) |
| Stall Current | 14.3 A |
| Standard | IEC 60034-1 / IEC 60034-2 |
| Isolation Class | F |
| Duty | S1 |
| Efficiency | 90.2% |
| Power Factor | 0.84 |
| Protection | IP54 |
| Encoder | DGS-66-J |
| Encoder Pulses | 1024 ppr |
| Encoder Voltage | 5 V |
| Fan | CAM35-2/220 |
| Fan Voltage | 230 VAC |
| Fan Current | 0.51 A |
| Fan Frequency | 50/60 Hz |
