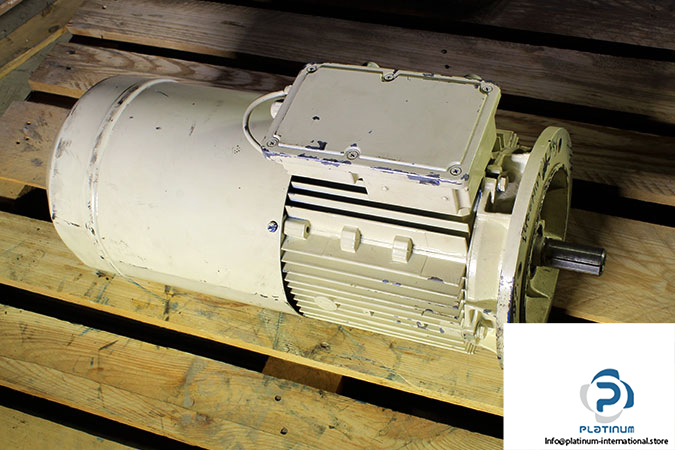

Control Techniques Worldwide SKGR112M-4 Enc/Th Brake Motor

Manufacturer: Control Techniques Worldwide
Type: Brake Motors
Model: SKGR112M-4ENC/TH
Part No.: FIX-A EFF2

Motor Speed [r/min]: 1435
Motor Power [kW]: 4.0
Rated Voltage [V]: 400/690 Delta/Star
Nominal Current [A]: 8.3/4.8
Rated Torque [Nm]: 60
Motor Frequency [Hz]: 50
Duty: S1
Cos Phi: 0.82
Thermal Class: F
Protection Class [IP]: 55
Weight [kg]: 51,6
